4.弹性网络（ Elastic Net）

版权声明：本文为博主原创文章，未经博主允许不得转载。 https://blog.csdn.net/qq_21904665/article/details/52315642

ElasticNet 是一种使用L1和L2先验作为正则化矩阵的线性回归模型.这种组合用于只有很少的权重非零的稀疏模型，比如:class:Lasso, 但是又能保持:class:Ridge 的正则化属性.我们可以使用 l1_ratio 参数来调节L1和L2的凸组合(一类特殊的线性组合)。

当多个特征和另一个特征相关的时候弹性网络非常有用。Lasso 倾向于随机选择其中一个，而弹性网络更倾向于选择两个.
在实践中，Lasso 和 Ridge 之间权衡的一个优势是它允许在循环过程（Under rotate）中继承 Ridge 的稳定性.
弹性网络的目标函数是最小化:

ElasticNetCV 可以通过交叉验证来用来设置参数 alpha () 和 l1_ratio ()

1.
   print(__doc__)
2.

3.
   import numpy as np
4.
   import matplotlib.pyplot as plt
5.

6.
   from sklearn.linear_model import lasso_path, enet_path
7.
   from sklearn import datasets
8.

9.
   diabetes = datasets.load_diabetes()
10.
    X = diabetes.data
11.
    y = diabetes.target
12.

13.
    X /= X.std(axis=0) # Standardize data (easier to set the l1_ratio parameter)
14.

15.
    # Compute paths
16.

17.
    eps = 5e-3 # the smaller it is the longer is the path
18.

19.
    print("Computing regularization path using the lasso...")
20.
    alphas_lasso, coefs_lasso, _ = lasso_path(X, y, eps, fit_intercept=False)
21.

22.
    print("Computing regularization path using the positive lasso...")
23.
    alphas_positive_lasso, coefs_positive_lasso, _ = lasso_path(
24.
    X, y, eps, positive=True, fit_intercept=False)
25.
    print("Computing regularization path using the elastic net...")
26.
    alphas_enet, coefs_enet, _ = enet_path(
27.
    X, y, eps=eps, l1_ratio=0.8, fit_intercept=False)
28.

29.
    print("Computing regularization path using the positve elastic net...")
30.
    alphas_positive_enet, coefs_positive_enet, _ = enet_path(
31.
    X, y, eps=eps, l1_ratio=0.8, positive=True, fit_intercept=False)
32.

33.
    # Display results
34.

35.
    plt.figure(1)
36.
    ax = plt.gca()
37.
    ax.set_color_cycle(2 * ['b', 'r', 'g', 'c', 'k'])
38.
    l1 = plt.plot(-np.log10(alphas_lasso), coefs_lasso.T)
39.
    l2 = plt.plot(-np.log10(alphas_enet), coefs_enet.T, linestyle='--')
40.

41.
    plt.xlabel('-Log(alpha)')
42.
    plt.ylabel('coefficients')
43.
    plt.title('Lasso and Elastic-Net Paths')
44.
    plt.legend((l1[-1], l2[-1]), ('Lasso', 'Elastic-Net'), loc='lower left')
45.
    plt.axis('tight')
46.

47.

48.

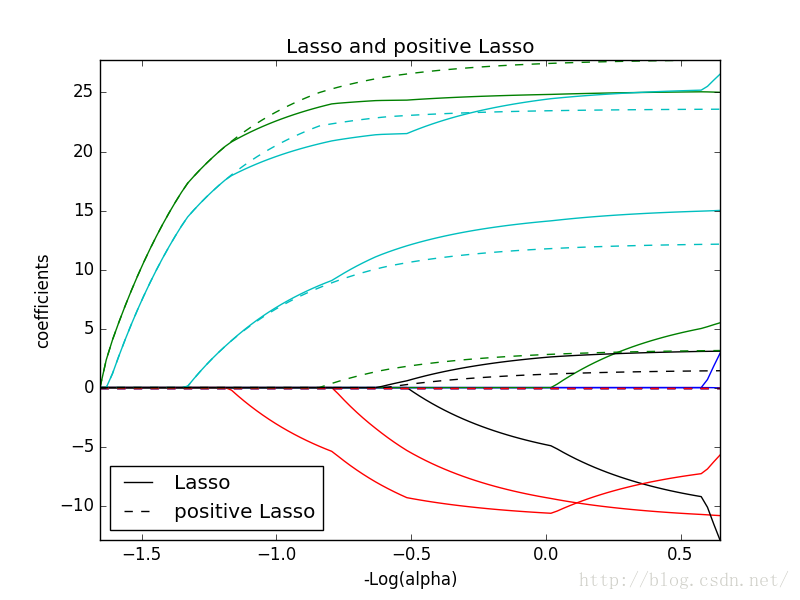

    plt.figure(2)
49.
    ax = plt.gca()
50.
    ax.set_color_cycle(2 * ['b', 'r', 'g', 'c', 'k'])
51.
    l1 = plt.plot(-np.log10(alphas_lasso), coefs_lasso.T)
52.
    l2 = plt.plot(-np.log10(alphas_positive_lasso), coefs_positive_lasso.T,
53.
    linestyle='--')
54.

55.
    plt.xlabel('-Log(alpha)')
56.
    plt.ylabel('coefficients')
57.
    plt.title('Lasso and positive Lasso')
58.
    plt.legend((l1[-1], l2[-1]), ('Lasso', 'positive Lasso'), loc='lower left')
59.
    plt.axis('tight')
60.

61.

62.

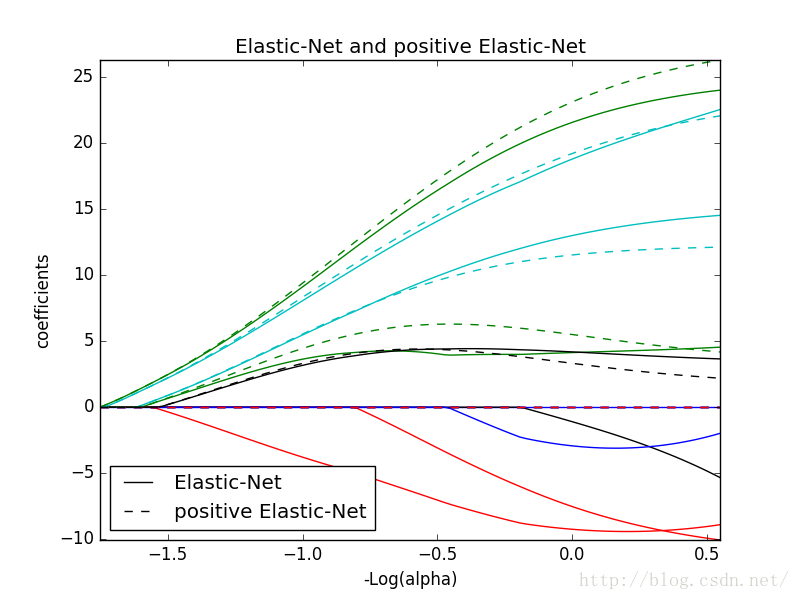

    plt.figure(3)
63.
    ax = plt.gca()
64.
    ax.set_color_cycle(2 * ['b', 'r', 'g', 'c', 'k'])
65.
    l1 = plt.plot(-np.log10(alphas_enet), coefs_enet.T)
66.
    l2 = plt.plot(-np.log10(alphas_positive_enet), coefs_positive_enet.T,
67.
    linestyle='--')
68.

69.
    plt.xlabel('-Log(alpha)')
70.
    plt.ylabel('coefficients')
71.
    plt.title('Elastic-Net and positive Elastic-Net')
72.
    plt.legend((l1[-1], l2[-1]), ('Elastic-Net', 'positive Elastic-Net'),
73.
    loc='lower left')
74.
    plt.axis('tight')
75.
    plt.show()
