CMDB资产管理系统开发【day27】：cmdb API安全认证

1、API验证分析

API三关验证

客户端和服务端中都存放一份相同的随机字符串，客户端发请求的时候把随机字符串和当前时间进行MD5加密，同时带着当前时间通过请求头发送到API，进入三关验证。

第一关是时间验证 (验证服务器当前时间和客户端发送过来的时间，超过10s后，验证不通过)
第二关是MD5规则验证(服务端把自己的密钥同客户端发送过来的时间进行MD5加密，进行密文的比较)
第三关是访问列表验证(从访问列表中查询是否存在，如果存在，验证不通过，否则把当前值存到列表中，并设置超时时间)，这里的时间可以设置成2S

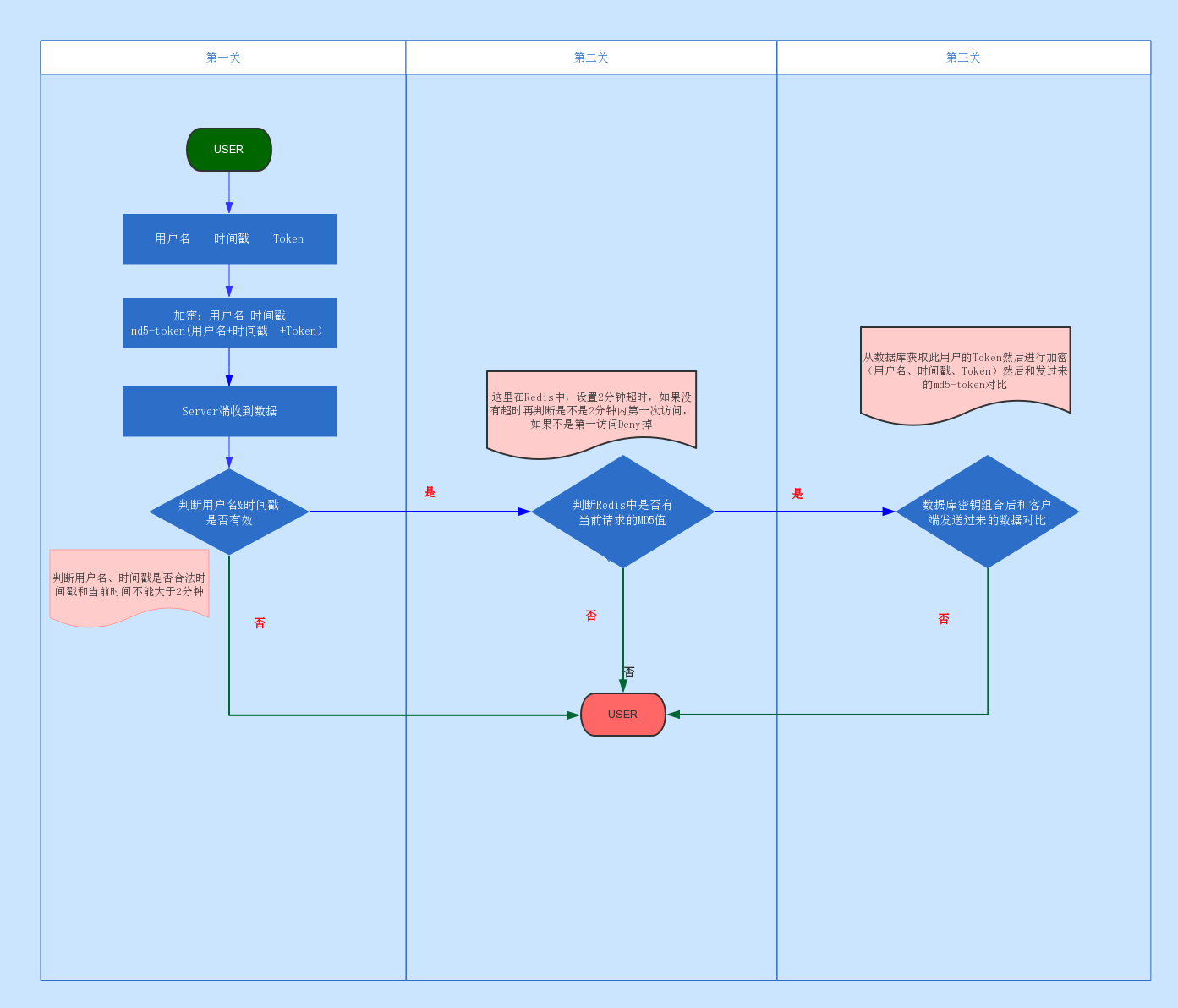

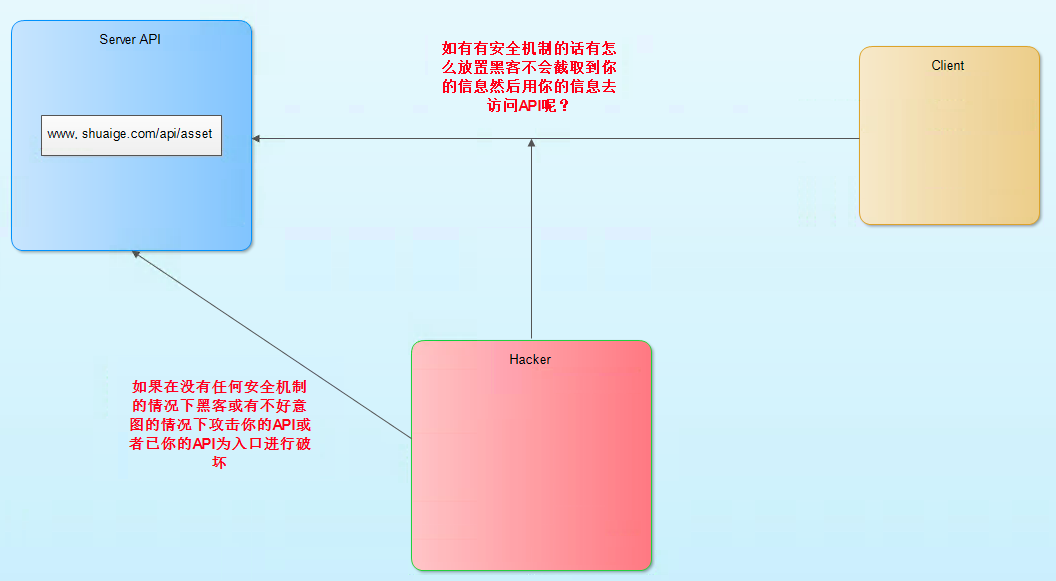

逻辑图1

逻辑图2

原理：

1、客户端与服务器都存放着用于验证的Token字段，值字段无论通过什么方法外部的黑客都是无法获取的。
2、客户端把本地的用户名+时间戳+Token的组合进行MD5加密生成一段新的md5-token
3、客户端访问的时候携带：用户名、时间戳、生成的一段新的md5-token
4、服务端收到请求后，先判断用户名、时间戳是否合法（时间戳和当前时间不能大于2分钟）
5、用户名和时间戳都合法了，在去Redis中判断是否有当前用户的key判断是否在这2分钟有访问过，我这里设置Redis2分钟过期，即合法用户第一次访问后，把他的用户名加入到Redis中作为key：MD5作为vlaue存储。如果存在说明是在2分钟内访问的。拒绝
6、以上都通过之后说明是合法用户和合法请求，然后在判断MD5值是否相等如果相同认证通过，执行相关Veiws然后并返回相关的状态或数据

2、HouseStark代码

#_*_coding:utf-8_*_

from core import info_collection
from conf import settings
import urllib.request,sys,os,json,datetime
import urllib.parse
from core import api_token

class ArgvHandler(object):
    def __init__(self,argv_list):
        self.argvs = argv_list
        self.parse_argv()

    def parse_argv(self):
        if len(self.argvs) >1:
            if hasattr(self,self.argvs[1]):
                func = getattr(self,self.argvs[1])
                func()
            else:
                self.help_msg()
        else:
            self.help_msg()
    def help_msg(self):
        msg = '''
        collect_data   收集资产数据
        run_forever    未实现
        get_asset_id   获取资产id
        report_asset   汇报资产数据到服务器
        '''
        print(msg)

    def collect_data(self):
        obj = info_collection.InfoCollection()
        asset_data = obj.collect() #收集
        print(asset_data)
    def run_forever(self):
        pass
    def __attach_token(self,url_str):
        '''generate md5 by token_id and username,and attach it on the url request'''
        user = settings.Params['auth']['user']
        token_id = settings.Params['auth']['token']

        md5_token,timestamp = api_token.get_token(user,token_id)
        url_arg_str = "user=%s&timestamp=%s&token=%s" %(user,timestamp,md5_token)
        if "?" in url_str:#already has arg
            new_url = url_str + "&" + url_arg_str
        else:
            new_url = url_str + "?" + url_arg_str
        return  new_url
        #print(url_arg_str)

    def __submit_data(self,action_type,data,method):
        '''
        send data to server
        :param action_type: url
        :param data: 具体要发送的数据
        :param method: get/post
        :return:
        '''
        if action_type in settings.Params['urls']:
            if type(settings.Params['port']) is int:
                url = "http://%s:%s%s" %(settings.Params['server'],settings.Params['port'],settings.Params['urls'][action_type])
            else:
                url = "http://%s%s" %(settings.Params['server'],settings.Params['urls'][action_type])

            url =  self.__attach_token(url)
            print('Connecting [%s], it may take a minute' % url)
            if method == "get":
                args = ""
                for k,v in data.items():
                    args += "&%s=%s" %(k,v)
                args = args[1:]
                url_with_args = "%s?%s" %(url,args)
                print(url_with_args)
                try:
                    req = urllib.request.urlopen(url_with_args,timeout=settings.Params['request_timeout'])
                    #req_data =urlopen(req,timeout=settings.Params['request_timeout'])
                    #callback = req_data.read()
                    callback = req.read()
                    print("-->server response:",callback)
                    return callback
                except urllib.URLError as e:
                    sys.exit("\033[31;1m%s\033[0m"%e)
            elif method == "post":
                try:
                    data_encode = urllib.parse.urlencode(data).encode()
                    req = urllib.request.urlopen(url=url,data=data_encode,timeout=settings.Params['request_timeout'])
                    #res_data = urllib.urlopen(req,timeout=settings.Params['request_timeout'])
                    callback = req.read()
                    callback = json.loads(callback.decode())
                    print("\033[31;1m[%s]:[%s]\033[0m response:\n%s" %(method,url,callback) )
                    return callback
                except Exception as e:
                    sys.exit("\033[31;1m%s\033[0m"%e)
        else:
            raise KeyError

    #def __get_asset_id_by_sn(self,sn):
    #    return  self.__submit_data("get_asset_id_by_sn",{"sn":sn},"get")
    def load_asset_id(self,sn=None):
        asset_id_file = settings.Params['asset_id']
        has_asset_id = False
        if os.path.isfile(asset_id_file):
            asset_id = open(asset_id_file).read().strip()
            if asset_id.isdigit():
                return  asset_id
            else:
                has_asset_id =  False
        else:
            has_asset_id =  False

    def __update_asset_id(self,new_asset_id):
        asset_id_file = settings.Params['asset_id']
        f = open(asset_id_file,"w",encoding="utf-8")
        f.write(str(new_asset_id))
        f.close()

    def report_asset(self):
        obj = info_collection.InfoCollection()
        asset_data = obj.collect()
        asset_id = self.load_asset_id(asset_data["sn"])
        if asset_id: #reported to server before
            asset_data["asset_id"] = asset_id
            post_url = "asset_report"
        else:#first time report to server
            '''report to another url,this will put the asset into approval waiting zone, when the asset is approved ,this request returns
            asset's ID'''

            asset_data["asset_id"] = None
            post_url = "asset_report_with_no_id"

        data = {"asset_data": json.dumps(asset_data)}
        response = self.__submit_data(post_url,data,method="post")

        if "asset_id" in response:
            self.__update_asset_id(response["asset_id"])

        self.log_record(response)

    def log_record(self,log,action_type=None):
        f = open(settings.Params["log_file"],"ab")
        if log is str:
            pass
        if type(log) is dict:

            if "info" in log:
                for msg in log["info"]:
                    log_format = "%s\tINFO\t%s\n" %(datetime.datetime.now().strftime("%Y-%m-%d-%H:%M:%S"),msg)
                    #print msg
                    f.write(log_format.encode())
            if "error" in log:
                for msg in log["error"]:
                    log_format = "%s\tERROR\t%s\n" %(datetime.datetime.now().strftime("%Y-%m-%d-%H:%M:%S"),msg)
                    f.write(log_format.encode())
            if "warning" in log:
                for msg in log["warning"]:
                    log_format = "%s\tWARNING\t%s\n" %(datetime.datetime.now().strftime("%Y-%m-%d-%H:%M:%S"),msg)
                    f.write(log_format.encode())

        f.close()

一次请求包含POST和GET

部分代码

def __attach_token(self,url_str):
        '''generate md5 by token_id and username,and attach it on the url request'''
        user = settings.Params['auth']['user']
        token_id = settings.Params['auth']['token']

        md5_token,timestamp = api_token.get_token(user,token_id)
        url_arg_str = "user=%s&timestamp=%s&token=%s" %(user,timestamp,md5_token)
        if "?" in url_str:#already has arg
            new_url = url_str + "&" + url_arg_str
        else:
            new_url = url_str + "?" + url_arg_str
        return  new_url　

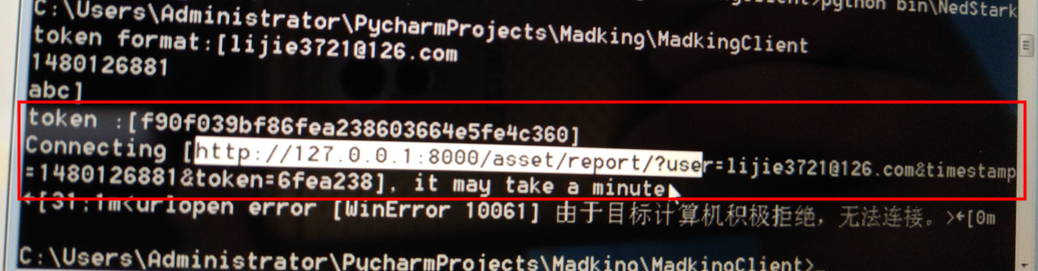

客户端截图

3、settings代码

#_*_coding:utf8_*_
import os
BaseDir = os.path.dirname(os.path.dirname(os.path.abspath(__file__)))

Params = {
    #"server": "192.168.12.22",
    "server": "127.0.0.1",
    "port":8000,
    'request_timeout':30,
    "urls":{
          "asset_report_with_no_id":"/asset/report/asset_with_no_asset_id/", #新资产待批准区
          "asset_report":"/asset/report/", #正式资产表接口
        },
    'asset_id': '%s/var/.asset_id' % BaseDir,
    'log_file': '%s/logs/run_log' % BaseDir,

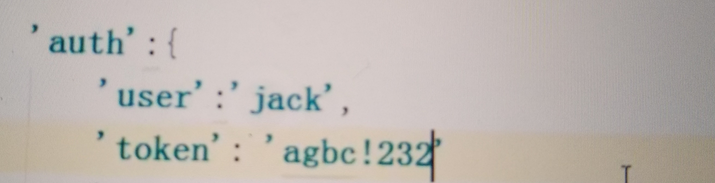

    'auth':{
        'user':'jack',
        'token': 'agbc!232'
        },
}

4、api_token代码

#_*_coding:utf-8_*_

import hashlib,time

def get_token(username,token_id):
    timestamp = int(time.time())
    md5_format_str = "%s\n%s\n%s" %(username,timestamp,token_id)
    obj = hashlib.md5()
    obj.update(md5_format_str.encode())
    print("token format:[%s]" % md5_format_str)
    print("token :[%s]" % obj.hexdigest())
    return obj.hexdigest()[10:17], timestamp

if __name__ =='__main__':
    print(get_token('alex','test') )

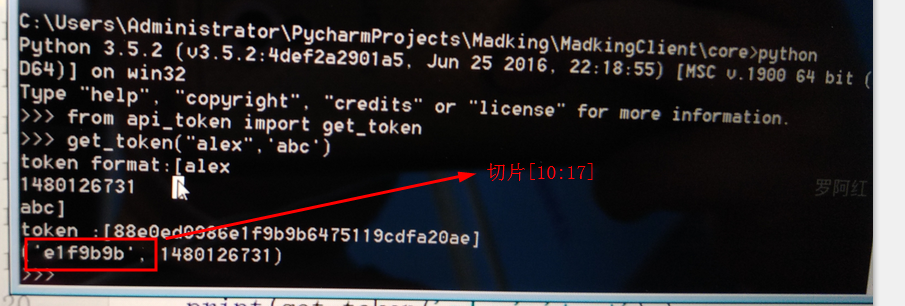

为什么要切片

主要是因为太长了

5、API认证测试

合法认证测试

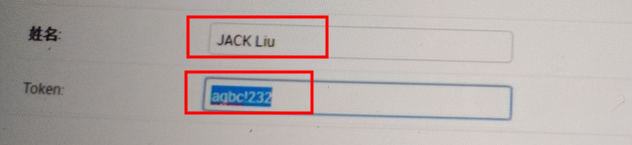

用户名密码截图

　　

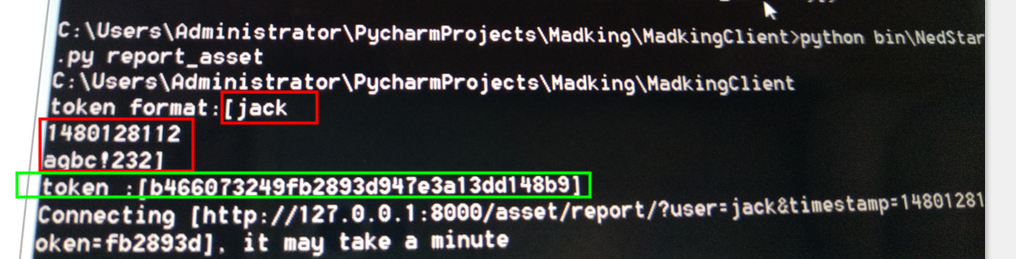

客户端截图

　　

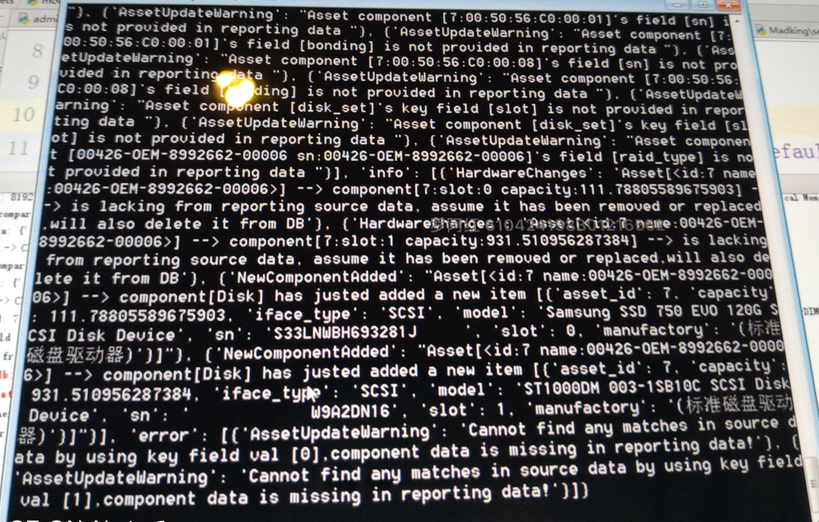

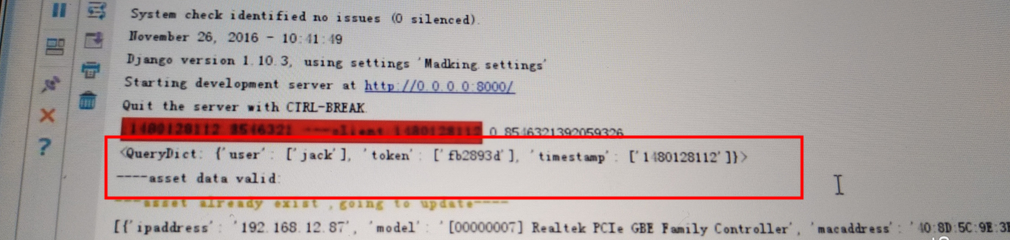

服务器控台截图

更改token后验证

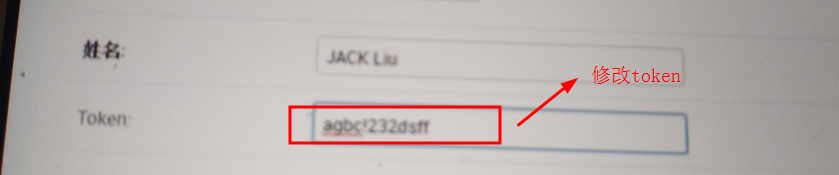

后台修改token

客户端截图
