前端学习openLayers配合vue3（修改地图样式）

这一块的东西非常简单，基于上一步的继续操作

关键代码,当然对应的对象需要进行相关的引入，为了方便理解，把背景色和边框放在了一起

//填充颜色
          style:new Style({
            fill:new Fill({
              color: "rgba(255, 0, 0, 0.5)",
            })
          })

//边框
stroke: new Stroke({
              color: "black",
              width: 1,
            })

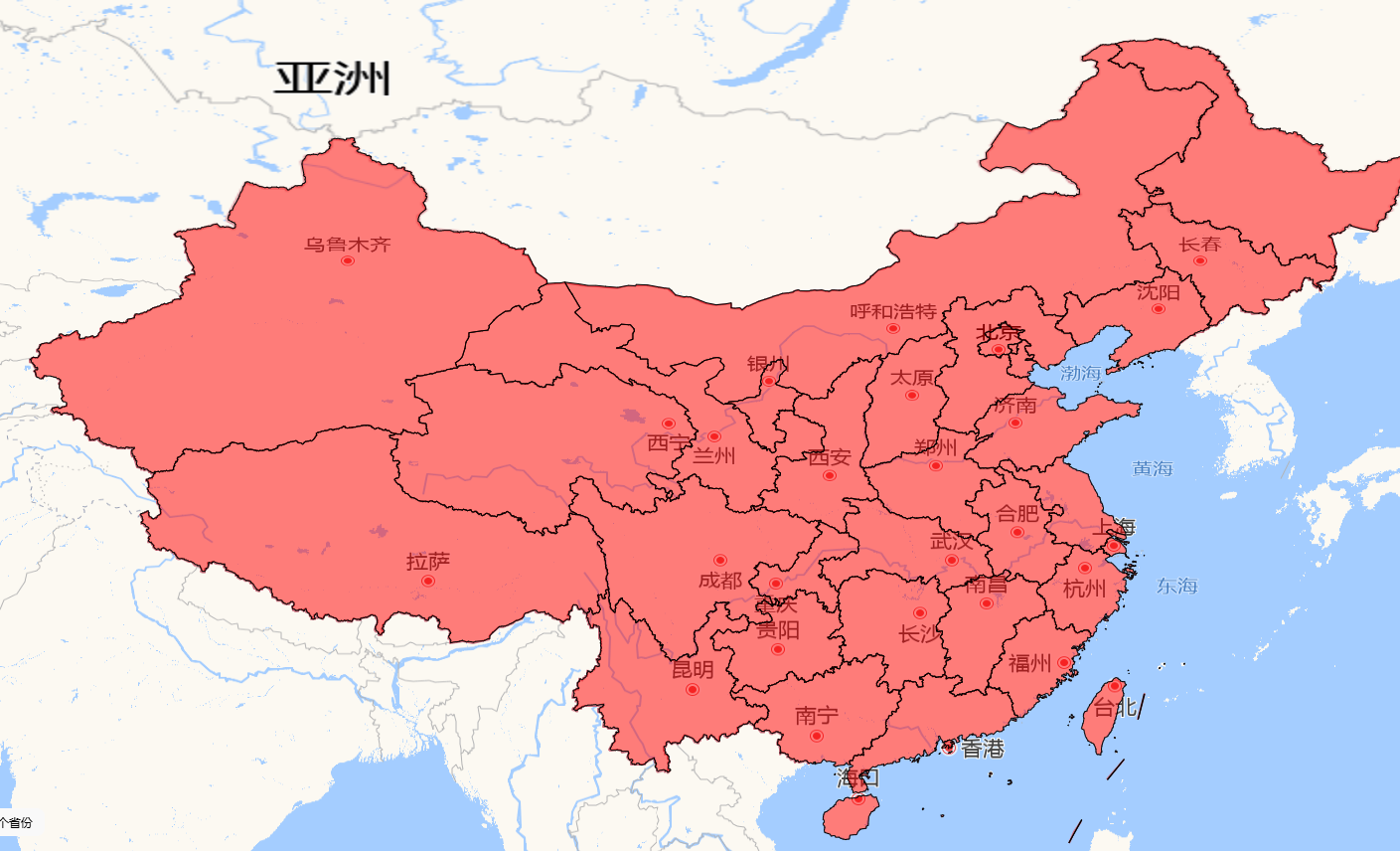

效果

完整代码

<script setup>

import { onMounted, reactive, ref } from "vue";

import { Map, View } from "ol";

import TileLayer from "ol/layer/Tile";

import { OSM, XYZ } from "ol/source";

import { fromLonLat } from "ol/proj";

import VectorLayer from "ol/layer/Vector";

import VectorSource from "ol/source/Vector";

import GeoJSON from "ol/format/GeoJSON";

import Style from "ol/style/Style";

import Fill from "ol/style/Fill";

import Stroke from "ol/style/Stroke";

defineProps({

  msg: String,

});

let map = reactive("");

let view = reactive("");

let count=ref(0)

onMounted(() => {

  initMap();

});

let initMap = () => {

  (view = new View({

    center: [114.305469, 30.592876],

    zoom: 5,

    projection: "EPSG:4326",

  })),

    (map = new Map({

      target: "map", //挂载视图的容器

      layers: [

        //瓦片图层source第三方，或者自带的,地图的底层

        new TileLayer({

          // source: new OSM(),//内置的国外地址，需要代理

          source: new XYZ({

            url: "http://wprd0{1-4}.is.autonavi.com/appmaptile?x={x}&y={y}&z={z}&lang=zh_cn&size=1&scl=1&style=7",

          }), //国内第三方数据源

        }),

        // 矢量图层

        new VectorLayer({

          source: new VectorSource({

            url: "https://geo.datav.aliyun.com/areas_v3/bound/100000_full.json",

            format: new GeoJSON(),

          }),

          //填充颜色

          style: new Style({

            fill: new Fill({

              color: "rgba(255, 0, 0, 0.5)",

            }),

            stroke: new Stroke({

              color: "black",

              width: 1,

            })

          }),

        }),

      ],

      //视图

      view: view,

    }));

  map

    .getLayers()//获取所有图层

    .item(1)//获取矢量图层

    .getSource()

    .on("change", function () {

      // 获取图层的 features

      count=this.getFeatures().length

    });

};

let move = () => {

  // 设置北京的经纬度

  const beijing = [116.46, 39.92];

  const view = map.getView();

  view.animate({

    center: beijing,

    zoom: 10,

    projection: "EPSG:4356",

  });

};

</script>

<template>

  <div id="map">

    <div class="btns">

      <button @click="move">中国有{{ count }}个省份</button>

    </div>

  </div>

</template>

<style scoped>

.btns {

  display: flex;

  position: fixed;

  left: 20px;

  bottom: 20px;

  z-index: 999;

}

.btns div {

  width: 100px;

  height: 40px;

  display: flex;

  justify-content: center;

  align-items: center;

  cursor: pointer;

}

.read-the-docs {

  color: #888;

}

#map {

  margin: 0;

  width: 100vw;

  height: 100vh;

}

</style>
