【ARM+Qt+OpenCV】基于ARM的双目图像采集系统

点击查看代码

 系统使用ARM处理器，运行linux系统，Qt创建工程编写主程序，可以使用OpenCV进行图像处理。

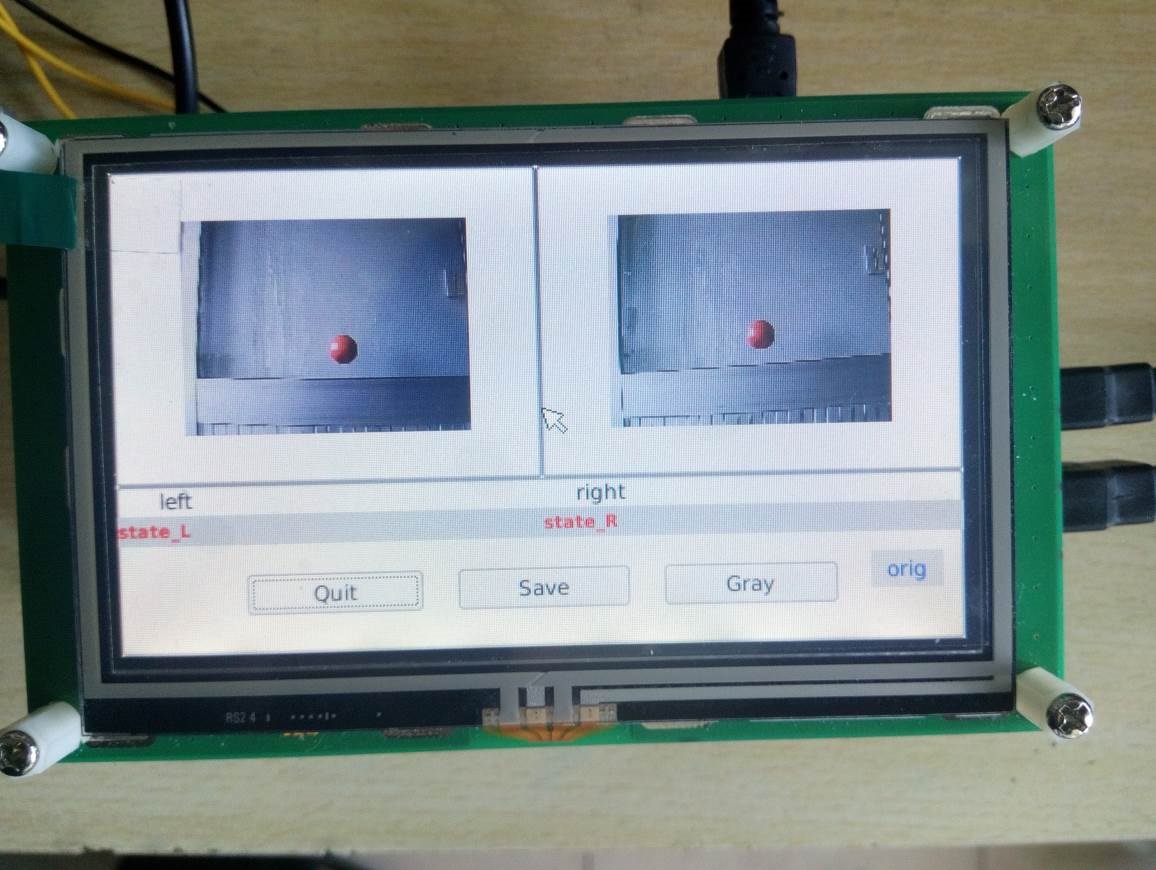

       通过两个摄像头采集会图像，在LCD上进行显示，然后通过LCD上的按钮实现退出程序、保存图像、显示灰度三个功能。细节的东西就不说了，网上一抓一大把，直接上代码。。。
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>走----------------你<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<

这是widget.h

点击(此处)折叠或打开

    #ifndef WIDGET_H
    #define WIDGET_H

    #include <QWidget>
    #include <QtGui>
    #include <QDateTime>
    #include <cv.h>
    #include <highgui.h>
    #include <cxcore.h>
    #include "camthread.h"
    #include "globaldata.h"

    namespace Ui {
    class Widget;
    }

    class Widget : public QWidget
    {
        Q_OBJECT

    public:
        explicit Widget(QWidget *parent = 0);
        ~Widget();

    private slots:
        void slotShowImage(int num, unsigned char* rgb);
        void slotGrayImage();
        void slotSaveImage();

    private:
        Ui::Widget *ui;

        volatile bool m_saveFlag_L;
        volatile bool m_saveFlag_R;
        volatile bool m_grayFlag_L;
        volatile bool m_grayFlag_R;

        CamThread* m_cam_L;
        CamThread* m_cam_R;
    };

    #endif // WIDGET_H

这是widget.cpp

点击(此处)折叠或打开

    #include "widget.h"
    #include "ui_widget.h"

    Widget::Widget(QWidget *parent) :
        QWidget(parent),
        ui(new Ui::Widget)
    {
        ui->setupUi(this);

        //flag set
        m_saveFlag_L = 0;
        m_saveFlag_R = 0;
        m_grayFlag_L = 0;
        m_grayFlag_R = 0;
        //camera setup
        m_cam_L = new CamThread("/dev/video1", LEFT_CAM);
        if(m_cam_L->initCam() == -1)
            printf("open %s error\n", m_cam_L->m_devName.toStdString().c_str());
        connect(m_cam_L, SIGNAL(sigGotImage(int, unsigned char*)), this, SLOT(slotShowImage(int, unsigned char*)));

        m_cam_R = new CamThread("/dev/video2", RIGHT_CAM);
        if(m_cam_R->initCam() == -1)
            printf("open %s error\n", m_cam_L->m_devName.toStdString().c_str());
        connect(m_cam_R, SIGNAL(sigGotImage(int, unsigned char*)), this, SLOT(slotShowImage(int, unsigned char*)));

        m_cam_L->start();
        m_cam_R->start();
        printf("thread start\n");

        connect(ui->saveButton, SIGNAL(clicked()), this, SLOT(slotSaveImage()));
        connect(ui->grayButton, SIGNAL(clicked()), this, SLOT(slotGrayImage()));
        connect(ui->quitButton, SIGNAL(clicked()), qApp, SLOT(quit()));
    }

    Widget::~Widget()
    {
        delete ui;

        free(m_cam_L);
        free(m_cam_R);
    }

    void Widget::slotShowImage(int num, unsigned char* rgb)
    {
        ///////////////left////////////////////////
        if(num == LEFT_CAM)
        {
            cv::Mat mat_src_L(IMG_HEIGHT, IMG_WIDTH, CV_8UC3, rgb);
            QImage qimage_L;

            if(m_grayFlag_L == 1)
            { //gray
                cv::Mat mat_gray_L(IMG_WIDTH, IMG_HEIGHT, CV_8UC1);
                cv::cvtColor(mat_src_L, mat_gray_L, CV_BGR2GRAY);

                qimage_L = QImage(mat_gray_L.cols, mat_gray_L.rows, QImage::Format_Indexed8); //Format_Indexed8
                qimage_L.setColorCount(256);
                for(int i = 0; i < 256; i++)
                {
                    qimage_L.setColor(i, qRgb(i, i, i));
                }
                unsigned char* pSrc = mat_gray_L.data;
                for(int row = 0; row < mat_gray_L.rows; row++)
                {
                    unsigned char* pDest = qimage_L.scanLine(row);
                    memcpy(pDest, pSrc, mat_gray_L.cols);
                    pSrc += mat_gray_L.step;
                }
            }
            else
            {
                qimage_L = QImage(mat_src_L.data, mat_src_L.cols, mat_src_L.rows, QImage::Format_RGB888);
            }
           ui->imgLabel_L->setPixmap(QPixmap::fromImage(qimage_L, Qt::AutoColor));

            if(m_saveFlag_L == 1)
            { //save
                QDateTime date_time_L = QDateTime::currentDateTime();
                QString imgName_L = QString("/cam/%1-%2_%3:%4:%5_L.bmp")
                                                    .arg(date_time_L.date().month(), 2, 10, QChar('0'))
                                                    .arg(date_time_L.date().day(), 2, 10, QChar('0'))
                                                    .arg(date_time_L.time().hour(), 2, 10, QChar('0'))
                                                    .arg(date_time_L.time().minute(), 2, 10, QChar('0'))
                                                    .arg(date_time_L.time().second(), 2, 10, QChar('0'));
                qimage_L.save(imgName_L);
                imgName_L = imgName_L + " saved.";
                ui->stateLabel_L->setText(imgName_L );
                m_saveFlag_L = 0;
            }
        }

        ///////////////right////////////////////////
        if(num == RIGHT_CAM)
        {
            cv::Mat mat_src_R(IMG_HEIGHT, IMG_WIDTH, CV_8UC3, rgb);
            QImage qimage_R;

            if(m_grayFlag_R == 1)
            { //gray
                cv::Mat mat_gray_R(IMG_WIDTH, IMG_HEIGHT, CV_8UC1);
                cv::cvtColor(mat_src_R, mat_gray_R, CV_BGR2GRAY);

                qimage_R = QImage(mat_gray_R.cols, mat_gray_R.rows, QImage::Format_Indexed8); //Format_Indexed8
                qimage_R.setColorCount(256);
                for(int i = 0; i < 256; i++)
                {
                    qimage_R.setColor(i, qRgb(i, i, i));
                }
                unsigned char* pSrc = mat_gray_R.data;
                for(int row = 0; row < mat_gray_R.rows; row++)
                {
                    unsigned char* pDest = qimage_R.scanLine(row);
                    memcpy(pDest, pSrc, mat_gray_R.cols);
                    pSrc += mat_gray_R.step;
                }
            }
            else
            {
                qimage_R = QImage(mat_src_R.data, mat_src_R.cols, mat_src_R.rows, QImage::Format_RGB888);
            }
           ui->imgLabel_R->setPixmap(QPixmap::fromImage(qimage_R, Qt::AutoColor));

            if(m_saveFlag_R == 1)
            { //save
                QDateTime date_time_R = QDateTime::currentDateTime();
                QString imgName_R = QString("/cam/%1-%2_%3:%4:%5_R.bmp")
                                                    .arg(date_time_R.date().month(), 2, 10, QChar('0'))
                                                    .arg(date_time_R.date().day(), 2, 10, QChar('0'))
                                                    .arg(date_time_R.time().hour(), 2, 10, QChar('0'))
                                                    .arg(date_time_R.time().minute(), 2, 10, QChar('0'))
                                                    .arg(date_time_R.time().second(), 2, 10, QChar('0'));
                qimage_R.save(imgName_R);
                imgName_R = imgName_R + " saved.";
                ui->stateLabel_R->setText(imgName_R);
                m_saveFlag_R = 0;
            }
        }
    }

    void Widget::slotSaveImage()
    {
        m_saveFlag_L = 1;
        m_saveFlag_R = 1;
    }

    void Widget::slotGrayImage()
    {
        if(m_grayFlag_L == 0)
        {
            //change state
            ui->garyLabel->setText("gray");
            m_grayFlag_L =1;
            m_grayFlag_R =1;
            return;
        }

        if(m_grayFlag_L == 1)
        {
            //change state
            ui->garyLabel->setText("orig");
            m_grayFlag_L = 0;
            m_grayFlag_R = 0;
            return;
        }
    }

上面这的代码中使用了一个自定义的CamThread类，这是为了实现对两个摄像头进行多线操作而创建的类。
        值得注意的是在connect(m_cam_X, SIGNAL(sigGotImage(int, unsigned char*)), this, SLOT(slotShowImage(int, unsigned char*)));中，子线程中图像数据是如何被传入主线程中的，这里实验了很久才成功。
       还有将OpenCV中的图像数据进行灰度转化时，长x宽 和 宽x长 似乎有变化，这里感谢佩佩童鞋帮我找出了这个问题。

这是camthread.h

点击(此处)折叠或打开

    /* 相机线程类
     * 完成对相机的所用的操作，包括控制，采集
     * 最后发送数据到主线程
     */
    #ifndef CAMTHREAD_H
    #define CAMTHREAD_H

    #include <string.h>
    #include <stdlib.h>
    #include <errno.h>
    #include <fcntl.h>
    #include <unistd.h>
    #include <sys/ioctl.h>
    #include <sys/mman.h>
    #include <asm/types.h>
    #include <linux/videodev2.h>
    #include <QString>
    #include <QObject>
    #include <QThread>
    #include <QFile>
    #include <QtGui>
    #include <stdio.h>
    #include "globaldata.h"

    #define PIXE_FORMAT V4L2_PIX_FMT_YUYV//V4L2_PIX_FMT_MJPEG
    #define CLEAR(x) memset(&(x), 0, sizeof(x))

    class CamThread : public QThread
    {
        Q_OBJECT

    public:
        CamThread(QString devName, int num);
        ~CamThread();

        int initCam(); //初始化设备

    private:
        int openDevice();
        int initDevice();
        int startCapturing();
        //int getFrame(void** frameBuf, size_t* len);
        int getFrame();
        int ungetFrame();
        int stopCapturing();
        int uninitDevice();
        int closeDevice();

        int initMmap();

        //MJPEG
        //int is_huffman(unsigned char *buf);

        //YUYV
        int convertYUVtoRGBpixel(int y, int u, int v);
        int convertYUVtoRGBbuffer(unsigned char* yuv, unsigned char* rgb, unsigned int w, unsigned int h);

    protected:
        void run();

    signals:
        //void sigGotImage(int num, unsigned char* &rgb);
        void sigGotImage(int num, unsigned char* rgb);

    public:
        struct camBuffer //定义一个结构体来映射每个缓存帧
        {
            void* start;
            size_t length;
        };

        QString m_devName; //设备文件名
        int m_camNum; //用于区别左右摄像头
        int m_fd; //文件描述符
        camBuffer* m_buffers; //数据缓存
        unsigned int m_nbuffers; //记录分配内存数量
        int m_index;

        unsigned char* m_yuv;
        unsigned char* m_rgb;

    };

    #endif // CAMTHREAD_H

这是camthread.cpp

点击(此处)折叠或打开

    #include "camthread.h"

    CamThread::CamThread(QString devName, int num)
    {
        m_devName = devName; //设备文件名
        m_camNum = num; //用于区别左右摄像头
        m_fd = -1; //文件描述符
        m_buffers = NULL; //数据缓存
        m_nbuffers = 0; //记录分配内存数量

        m_yuv = NULL;
        m_rgb = NULL;
        //m_qimage = NULL;
    }

    CamThread::~CamThread()
    {

    }

    //////////////////////////图像获取///////////////////////////////////////////////////
    int CamThread::initCam()
    {
        if(openDevice() == -1)
        {
            printf("open %s error\n", m_devName.toStdString().c_str());
            closeDevice();
            return -1;
        }
        if(initDevice() == -1)
        {
            printf("init %s error\n", m_devName.toStdString().c_str());
            closeDevice();
            return -1;
        }
        if(startCapturing() == -1)
        {
            printf("startCapturing %s error\n", m_devName.toStdString().c_str());
            closeDevice();
            return -1;
        }

        return 0;
    }

    void CamThread::run()
    {
        while(1)
        {
                getFrame();
                //printf("getFrame()\n");
                convertYUVtoRGBbuffer(m_yuv, m_rgb, IMG_WIDTH, IMG_HEIGHT);
                //printf("YUV2RGB\n");
                emit sigGotImage(m_camNum, m_rgb);
                //printf("emit signal\n");
                ungetFrame();
                msleep(30);
        }
    }

    ////////////////////////摄像头具体操作/////////////////////////////////////////////////////
    int CamThread::openDevice()
    {
        m_fd = open(m_devName.toStdString().c_str(), O_RDWR, 0);
        if(m_fd == -1)
        {
            printf("open: %s\n", strerror(errno));
            return -1;
        }

        return 0;
    }

    int CamThread::initDevice()
    {
        //查询设备属性
        v4l2_capability cap;
        if(ioctl(m_fd, VIDIOC_QUERYCAP, &cap) == -1)
        {
            if(EINVAL == errno)
                printf("%s is no v4l2 device\n", (char*)&m_devName);
            else
                printf("VIDIOC_QUERYCAP: %s\n", strerror(errno));
            return -1;
        }
        if(!(cap.capabilities & V4L2_CAP_VIDEO_CAPTURE))
        {
            printf("%s is not video capture device\n", (char*)&m_devName);
            return -1;
        }
        if(!(cap.capabilities & V4L2_CAP_STREAMING))
        {
            printf("%s dose not support streaming\n", (char*)&m_devName);
            return -1;
        }
        if(!(cap.capabilities & V4L2_CAP_READWRITE))
        {
            printf("%s dose not support read.write\n", m_devName.toStdString().c_str());
            //return -1;
        }

        //图像的缩放
        v4l2_cropcap cropcap;
        v4l2_crop crop;
        CLEAR(cropcap);
        cropcap.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
        if(ioctl(m_fd, VIDIOC_CROPCAP, &cropcap) == 0)
        {
            CLEAR(crop);
            crop.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
            crop.c = cropcap.defrect;
            if(ioctl(m_fd, VIDIOC_S_CROP, &crop) == -1)
            {
                if(EINVAL == errno)
                {
                    printf("VIDIOC_S_CROP not supported\n");
                }
                else
                {
                    printf("VIDIOC_S_CROP: %s\n", strerror(errno));
                    return -1;
                }
            }
        }
        else
        {
            printf("VIDIOC_CROPCAP: %s\n", strerror(errno));
            return -1;
        }

    //查询所有支持格式
        v4l2_fmtdesc fmtdesc;
         CLEAR(fmtdesc);
         fmtdesc.index = 0;
         fmtdesc.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
         printf("support format:\n");
         while(ioctl(m_fd, VIDIOC_ENUM_FMT, &fmtdesc) != -1)
         {
             printf("\t%d.%s\n", fmtdesc.index+1, fmtdesc.description);
             fmtdesc.index++;
         }

        //设置格式
        v4l2_format fmt;
        CLEAR(fmt);
        fmt.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
        fmt.fmt.pix.width = IMG_WIDTH;
        fmt.fmt.pix.height = IMG_HEIGHT;
        fmt.fmt.pix.pixelformat = PIXE_FORMAT;
        fmt.fmt.pix.field = V4L2_FIELD_INTERLACED;
        if(ioctl(m_fd, VIDIOC_S_FMT, &fmt) == -1)
        {
            printf("VIDIOC_S_FMT: %s\n", strerror(errno));
            return -1;
        }

        //mmap
        if(initMmap() == -1)
        {
            printf("init mmap error \n");
            return -1;
        }

        //m_rgb m_qimage
        m_yuv = (unsigned char*)malloc(IMG_WIDTH*IMG_HEIGHT*3*sizeof(char));
        m_rgb = (unsigned char*)malloc(IMG_WIDTH*IMG_HEIGHT*3*sizeof(char));

        return 0;
    }

    int CamThread::startCapturing()
    {
        //把四个缓冲帧放入队列，并启动数据流
        for(unsigned int i = 0; i < m_nbuffers; ++i)
        {
            v4l2_buffer buf;
            CLEAR(buf);
            buf.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
            buf.memory = V4L2_MEMORY_MMAP;
            buf.index = i;
            if(ioctl(m_fd, VIDIOC_QBUF, &buf) == -1) //缓冲帧放入队列
            {
                printf("VIDIOC_QBUF %s\n",strerror(errno));
                return -1;
            }
        }

        v4l2_buf_type type;
        type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
        if(ioctl(m_fd, VIDIOC_STREAMON, &type) == -1)
        {
            printf("VIDIOC_STREAMON %s\n", strerror(errno));
            return -1;
        }

        return 0;
    }

    //int CamThread::getFrame(void** frameBuf, size_t* len)
    int CamThread::getFrame()
    {
        //从缓冲区取出一帧，并保存
        v4l2_buffer queue_buf;
        CLEAR(queue_buf);
        queue_buf.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
        queue_buf.memory = V4L2_MEMORY_MMAP;
        if(ioctl(m_fd, VIDIOC_DQBUF, &queue_buf) == -1)
        {
            switch(errno)
            {
                case EAGAIN:
                    return -1;
                case EIO:
                    return -1;
                default:
                    printf("VIDIOC_DQUBUF: %s\n", strerror(errno));
                    return -1;
            }
        }
        //printf("DQBUF done\n");
        //*frameBuf = m_buffers[queue_buf.index].start;
        //*len = m_buffers[queue_buf.index].length; //queue_buf.bytesused;
        m_index = queue_buf.index; //buffer的序号

        //YUYV
        memcpy(m_yuv, m_buffers[queue_buf.index].start, m_buffers[queue_buf.index].length);
        //printf("memcpy done\n");

    /*
        //MJPEG
        memcpy(m_tmpBuffer, m_buffers[queue_buf.index].start, queue_buf.bytesused );

        m_fileFd = fopen("cam.jpg", "wb");
        unsigned char *ptdeb, *ptcur = m_tmpBuffer;
        int sizein;
        if(!is_huffman(m_tmpBuffer))
        {
            ptdeb = ptcur = m_tmpBuffer;
            while (((ptcur[0] << 8) | ptcur[1]) != 0xffc0)
                ptcur++;
            sizein = ptcur - ptdeb;
            fwrite(m_tmpBuffer, sizein, 1, m_fileFd);
            fwrite(dht_data, DHT_SIZE, 1, m_fileFd);
            fwrite(ptcur, queue_buf.bytesused-sizein, 1, m_fileFd);
        }
        else
        {
            fwrite(ptcur, queue_buf.bytesused, 1, m_fileFd);
        }
        fclose(m_fileFd);
    */

        return 0;
    }

    int CamThread::ungetFrame()
    {
        if(m_index != -1)
        {
            //将取出的帧放回缓冲区(队列)
            v4l2_buffer queue_buf;
            CLEAR(queue_buf);
            queue_buf.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
            queue_buf.memory = V4L2_MEMORY_MMAP;
            queue_buf.index = m_index;
            if(ioctl(m_fd, VIDIOC_QBUF, &queue_buf) == -1)
            {
                printf("VIDIOC_QBUF: %s\n", strerror(errno));
                return -1;
            }

            return 0;
        }
        printf("m_index = -1\n");
        return -1;
    }

    int CamThread::stopCapturing()
    {
        v4l2_buf_type type;
        type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
        if(ioctl(m_fd, VIDIOC_STREAMOFF, &type) == -1)
        {
            printf("VIDIOC_STREAMOFF %s\n", strerror(errno));
            return -1;
        }

        return 0;
    }

    int CamThread::uninitDevice()
    {
        for(unsigned int i = 0; i < m_nbuffers; ++i)
        {
            if(munmap(m_buffers[i].start, m_buffers[i].length))
            {
                printf("munmap %s\n", strerror(errno));
                return -1;
            }
        }
        free(m_buffers);
        free(m_yuv);
        free(m_rgb);

        return 0;
    }

    int CamThread::closeDevice()
    {
        if(close(m_fd) == -1)
        {
            printf("close: %s", strerror(errno));
            return -1;
        }

        return 0;
    }

    int CamThread::initMmap()
    {
        //申请缓冲区 ?申请设备中的缓存帧
        v4l2_requestbuffers reqbuf;
        CLEAR(reqbuf);
        reqbuf.count = 4; //缓冲区内缓冲帧数目
        reqbuf.type = V4L2_BUF_TYPE_VIDEO_CAPTURE; //缓存帧数据格式
        reqbuf.memory = V4L2_MEMORY_MMAP; //I/O方式，内存映射的方式
        if(ioctl(m_fd, VIDIOC_REQBUFS, &reqbuf) == -1)
        {
            if(EINVAL == errno)
                printf("%s does not support memory mapping\n", (char*)&m_devName);
            else
                printf("VIDIOC_REQUBUF %s\n", strerror(errno));
            return -1;
        }
        if(reqbuf.count < 2)
        {
            printf("insufficient buffer memory on %s\n", (char*)&m_devName);
            return -1;
        }

        //映射缓存区帧
        m_buffers = (camBuffer*)calloc(reqbuf.count, sizeof(*m_buffers));
        if(!m_buffers)
        {
            printf("out of memory\n");
            return -1;
        }
        for(m_nbuffers = 0; m_nbuffers < reqbuf.count; ++m_nbuffers)
        {
            v4l2_buffer buf; //缓存帧
            CLEAR(buf);
            buf.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
            buf.memory = V4L2_MEMORY_MMAP;
            buf.index = m_nbuffers; //buffer的序号
            // 查询序号为n_buffers 的缓冲区，得到其起始物理地址和大小
            if(ioctl(m_fd, VIDIOC_QUERYBUF, &buf) == -1) //获取(查询)这些缓存帧的地址、长度
            {
                printf("VIDIOC_QUERYBUF: %s\n", strerror(errno));
                return -1;
            }
            m_buffers[m_nbuffers].length = buf.length; //设置
            //将申请到的缓存帧映射到应用程序，用m_buffers指针记录
            m_buffers[m_nbuffers].start = mmap(NULL,
                                                                            buf.length,
                                                                            PROT_READ | PROT_WRITE,
                                                                            MAP_SHARED,
                                                                            m_fd,
                                                                            buf.m.offset);
            if(m_buffers[m_nbuffers].start == MAP_FAILED)
            {
                printf("mmap %s\n", strerror(errno));
                return -1;
            }
        }

        return 0;
    }

    //////////////////////MJPEG/////////////////////////////////
    /*
    int CamThread::is_huffman(unsigned char *buf)
    {
        unsigned char *ptbuf;
        int i = 0;
        ptbuf = buf;
        while (((ptbuf[0] << 8) | ptbuf[1]) != 0xffda)
        {
                if(i++ > 2048)
                        return 0;
                if(((ptbuf[0] << 8) | ptbuf[1]) == 0xffc4)
                        return 1;
                ptbuf++;
        }
        return 0;
    }
    */

    //////////////////////YUYV图像转换////////////////////////////////////////
    int CamThread::convertYUVtoRGBpixel(int y, int u, int v)
    {
        unsigned int pixel_32 = 0;
        unsigned char *pixel = (unsigned char *)&pixel_32;
        int r, g, b;
        r = y + (1.370705 * (v-128));
        g = y - (0.698001 * (v-128)) - (0.337633 * (u-128));
        b = y + (1.732446 * (u-128));
        if(r > 255)
            r = 255;
        if(g > 255)
            g = 255;
        if(b > 255)
            b = 255;
        if(r < 0)
            r = 0;
        if(g < 0)
            g = 0;
        if(b < 0)
            b = 0;
        pixel[0] = r*220/256;
        pixel[1] = g*220/256;
        pixel[2] = b*220/256;

        return pixel_32;
    }

    int CamThread::convertYUVtoRGBbuffer(unsigned char* yuv, unsigned char* rgb, unsigned int w, unsigned int h)
    {
        unsigned int in, out = 0;
        unsigned int pixel_16;
        unsigned char pixel_24[3];
        unsigned int pixel_32;
        int y0, u, y1, v;

        for(in = 0; in < w*h*2; in+=4)
        {
            pixel_16 = yuv[in+3]<<24 |
                              yuv[in+2]<<16 |
                              yuv[in+1]<<8 |
                              yuv[in+0];
            y0 = (pixel_16 & 0x000000ff);
            u = (pixel_16 & 0x0000ff00) >> 8;
            y1 = (pixel_16 & 0x00ff0000) >> 16;
            v = (pixel_16 & 0xff000000) >> 24;

            pixel_32 = convertYUVtoRGBpixel(y0, u, v);
            pixel_24[0] = (pixel_32 & 0x000000ff);
            pixel_24[1] = (pixel_32 & 0x0000ff00) >> 8;
            pixel_24[2] = (pixel_32 & 0x00ff0000) >> 16;
            rgb[out++] = pixel_24[0];
            rgb[out++] = pixel_24[1];
            rgb[out++] = pixel_24[2];

            pixel_32 = convertYUVtoRGBpixel(y1, u, v);
            pixel_24[0] = (pixel_32 & 0x000000ff);
            pixel_24[1] = (pixel_32 & 0x0000ff00) >> 8;
            pixel_24[2] = (pixel_32 & 0x00ff0000) >> 16;
            rgb[out++] = pixel_24[0];
            rgb[out++] = pixel_24[1];
            rgb[out++] = pixel_24[2];
        }

        return 0;
    }

CamThread类是通过V4L2来实现对摄像头的操作，从摄像头中获取到YUV格式的数据后，还要将其转换为RGB格式的，这里看了关于YUV与RGB颜色空间之间关系的论文，他俩之间是可以相互转换的，最后参考了网上一位大神的代码，时间久远查找不便，不能给出出处请见谅。发现论文中的参数和大神代码中的参数是有些微不同的，但大神的代码运行良好而且参数差值很小，因此没有修改。

至于main.cpp就不用在赘述了。。。

附上运行图
![](https://img2024.cnblogs.com/blog/3593162/202502/3593162-20250217104540222-1496356140.jpg)

个人水平有限难免有错误之处，希望不吝敕教
未能详尽解说，之后会再进行补充
