kubernetes1.5.2 dashboard配置

镜像：https://hub.daocloud.io/#!/repos/f8919a2c-2540-424e-8758-d23cc76b6d80

启动Kubernetes集群

配置Kubernetes网络，在master和nodes上都需要安装flannel

vi /etc/sysconfig/flanneld
# Flanneld configuration options
# etcd url location. Point this to the server where etcd runs
FLANNEL_ETCD_ENDPOINTS="http://192.168.132.148:2379"
# etcd config key. This is the configuration key that flannel queries
# For address range assignment
FLANNEL_ETCD_PREFIX="/atomic.io/network"
# Any additional options that you want to pass
#FLANNEL_OPTIONS=""

配置etcd中flannel的key,需要在etcd中进行配置（如果做了集群可忽略此步骤）

在master节点上启动

systemctl enable flanneld.service
systemctl start flanneld.service
service docker restart
systemctl restart kube-apiserver.service
systemctl restart kube-controller-manager.service
systemctl restart kube-scheduler.service

在各个Nodes上启动

systemctl enable flanneld.service
systemctl start flanneld.service
service docker restart
systemctl restart kubelet.service
systemctl restart kube-proxy.service

测试集群

配置dashboard并启动

编辑kubernetes-dashboard.yaml文件

dashboard-deployment.yaml

apiVersion: extensions/v1beta1
kind: Deployment
metadata:
# Keep the name in sync with image version and
# gce/coreos/kube-manifests/addons/dashboard counterparts
  name: kubernetes-dashboard-latest
  namespace: kube-system
spec:
  replicas: 1
  template:
    metadata:
      labels:
        k8s-app: kubernetes-dashboard
        version: latest
        kubernetes.io/cluster-service: "true"
    spec:
      containers:
      - name: kubernetes-dashboard
        image: bestwu/kubernetes-dashboard-amd64:v1.6.3
        resources:
          # keep request = limit to keep this container in guaranteed class
          limits:
            cpu: 100m
            memory: 50Mi
          requests:
            cpu: 100m
            memory: 50Mi
        ports:
        - containerPort: 9090
        args:
         -  --apiserver-host=http://192.168.132.148:8080
        livenessProbe:
          httpGet:
            path: /
            port: 9090
          initialDelaySeconds: 30
          timeoutSeconds: 30

dashboard-service.yaml

---
kind: Service
metadata:
  name: kubernetes-dashboard
  namespace: kube-system
  labels:
    k8s-app: kubernetes-dashboard
    kubernetes.io/cluster-service: "true"
spec:
  selector:
    k8s-app: kubernetes-dashboard
  ports:
  - port: 80
    targetPort: 9090

注释:

image 此处要写镜像地址，由于大多数dashboard的镜像国内无法访问，所以找到一个国内可用的
--apiserver-host=http://192.168.132.148:8080 这里为apiserver的地址（node下配置）

创建dashboard

[root@k8s_master ~]# kubectl create -f ui.yaml
deployment "kubernetes-dashboard-latest" created
service "kubernetes-dashboard" created

查看创建deployment

[root@k8s_master ~]# kubectl get -f ui.yaml
NAME                                 DESIRED   CURRENT   UP-TO-DATE   AVAILABLE   AGE
deploy/kubernetes-dashboard-latest   1         1         1            1           47m

NAME                       CLUSTER-IP       EXTERNAL-IP   PORT(S)   AGE
svc/kubernetes-dashboard   10.254.159.141   <none>        80/TCP    47m

[root@k8s_master ~]# kubectl get pods --all-namespaces
NAMESPACE     NAME                                           READY     STATUS    RESTARTS   AGE
kube-system   kubernetes-dashboard-latest-1381663337-0wwml   1/1       Running   0          48m

如果status处异常可查看日志

[root@k8s_master ~]# kubectl  logs -f   kubernetes-dashboard-latest-1381663337-0wwml -n kube-system

[root@k8s_master ~]# kubectl describe po kubernetes-dashboard --namespace=kube-system

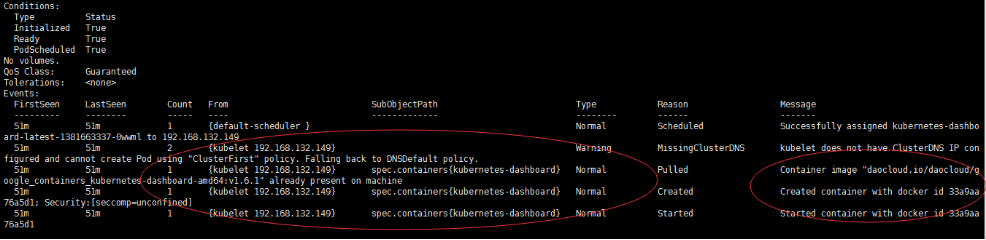

正常为

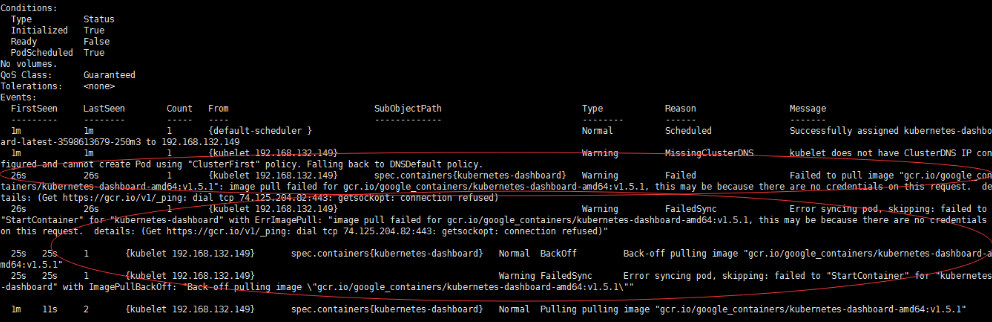

错误（提示无法拉取镜像）：

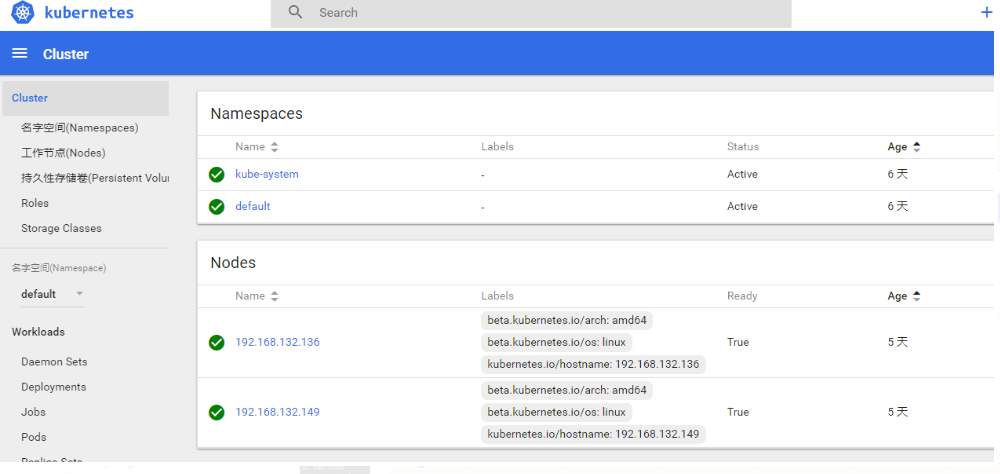

访问web (http://192.168.132.148:8080/ui)
Error: 'dial tcp 10.1.23.2:9090: getsockopt: connection refused'
需要检查apiserver的地址设置的是否正确（重启apiserver和kubenets）,然后就是flannel是否配置启动

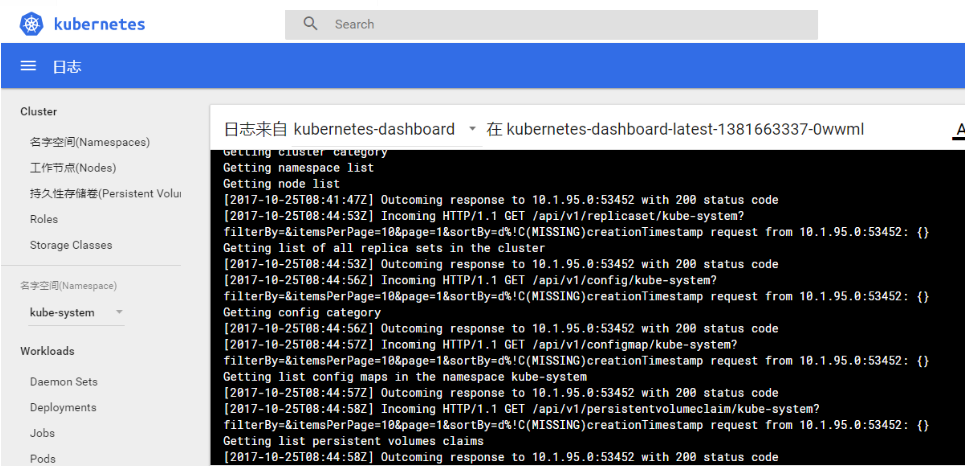

http://192.168.132.148:8080/api/v1/proxy/namespaces/kube-system/services/kubernetes-dashboard/#!/cluster?namespace=kube-system
