android开发 RecyclerView 瀑布列表布局

1.写一个内容的自定义小布局：

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:layout_margin="10dp">
    <ImageView
        android:id="@+id/waterfall_Image"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@drawable/ace"/>
    <TextView
        android:id="@+id/waterfall_Name_TextView"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="这里显示名称"
        android:textSize="15sp"
        android:textColor="@color/colorBlack"
        android:layout_gravity="center_horizontal"/>
    <TextView
        android:id="@+id/waterfall_contents_TextView"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="这里显示内容"
        android:textSize="10sp"
        android:textColor="@color/colorblue"/>

</LinearLayout>

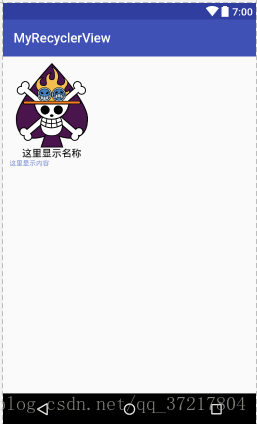

布局预览：

写一个内容适配器class：

package com.example.lenovo.myrecyclerview.RecyclerViewToolkit;

import android.support.v7.widget.RecyclerView;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ImageView;
import android.widget.TextView;
import com.example.lenovo.myrecyclerview.R;

import java.util.List;

/**
 * Created by lenovo on 2018/5/2.
 */

public class ListAdapter extends RecyclerView.Adapter<ListAdapter.ViewHolder> {
    private List<ListData> mDataList;
    static class ViewHolder extends RecyclerView.ViewHolder{
        ImageView imageAvatar;
        TextView nameText;
        TextView contentsText;
        public ViewHolder(View itemView) {
            super(itemView);
            //注意这里可能需要import com.example.lenovo.myrecyclerview.R; 才能使用R.id
            imageAvatar = (ImageView)itemView.findViewById(R.id.waterfall_Image);
            nameText =(TextView) itemView.findViewById(R.id.waterfall_Name_TextView);
            contentsText = (TextView)itemView.findViewById(R.id.waterfall_contents_TextView);
        }
    }
    public  ListAdapter(List<ListData> listDatas){
        mDataList = listDatas;
    }

    @Override
    public ViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {
        View view = LayoutInflater.from(parent.getContext()).inflate(R.layout.waterfall_list_view,
                parent,false);
        ViewHolder holder = new ViewHolder(view);
        return holder;
    }

    @Override
    public void onBindViewHolder(ViewHolder holder, int position) {
        ListData listData = mDataList.get(position);
        holder.imageAvatar.setImageResource(listData.getImageView());
        holder.nameText.setText(listData.getNameText());
        holder.contentsText.setText(listData.getContentsText());
    }

    @Override
    public int getItemCount() {
        return mDataList.size();
    }
}

写一个RecyclerView 瀑布列表布局活动class：

package com.example.lenovo.myrecyclerview;

import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.support.v7.widget.LinearLayoutManager;
import android.support.v7.widget.RecyclerView;
import android.support.v7.widget.StaggeredGridLayoutManager;

import com.example.lenovo.myrecyclerview.RecyclerViewToolkit.ListAdapter;
import com.example.lenovo.myrecyclerview.RecyclerViewToolkit.ListData;

import java.util.ArrayList;
import java.util.List;

public class RecyclerViewActivity extends AppCompatActivity {
    private List<ListData> listDatas = new ArrayList<>(); //创建数据list

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_recycler_view);
        addingData(); //导入数据
        RecyclerView recyclerView = (RecyclerView)findViewById(R.id.RecyclerView);
        //在此处修改布局排列方向
        StaggeredGridLayoutManager staggeredGridLayoutManager = new StaggeredGridLayoutManager(3,
                StaggeredGridLayoutManager.VERTICAL);
        recyclerView.setLayoutManager(staggeredGridLayoutManager);
        ListAdapter listAdapter = new ListAdapter(listDatas); //创建适配器，并且导入数据list
        recyclerView.setAdapter(listAdapter);//布局导入适配器
    }
    //添加数据
    public void addingData(){
        ListData ace = new ListData(R.drawable.ace,"ace", "波特卡斯·D·艾斯：" +
                "烧烧果实的前任能力者，绰号“火拳”，实力强大。");
        listDatas.add(ace);
//以下省略.....

    }

}

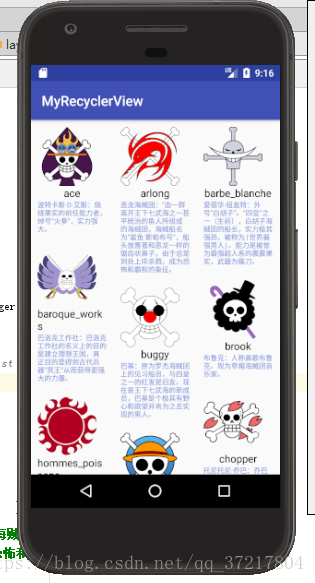

实现效果图：
