netty 服务器端流程调度Flow笔记

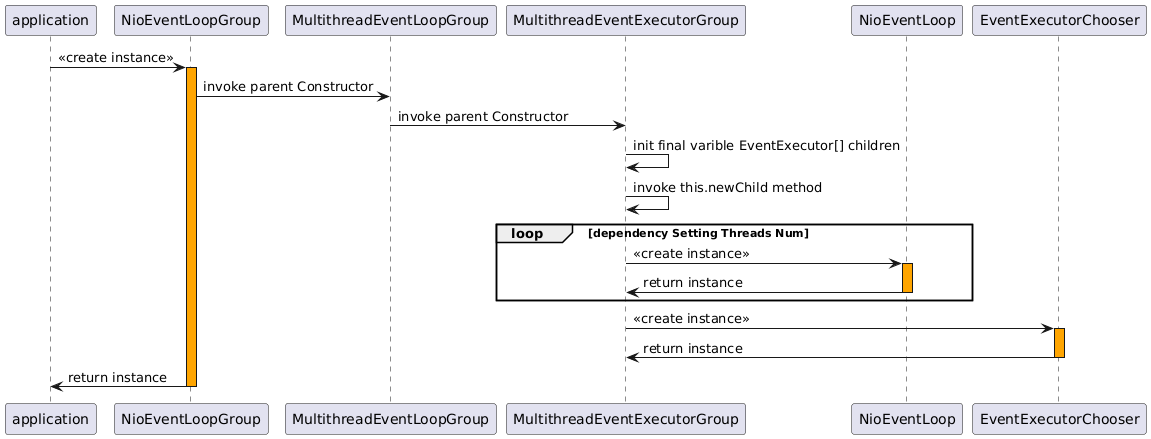

create NioEventLoopGroup Instance

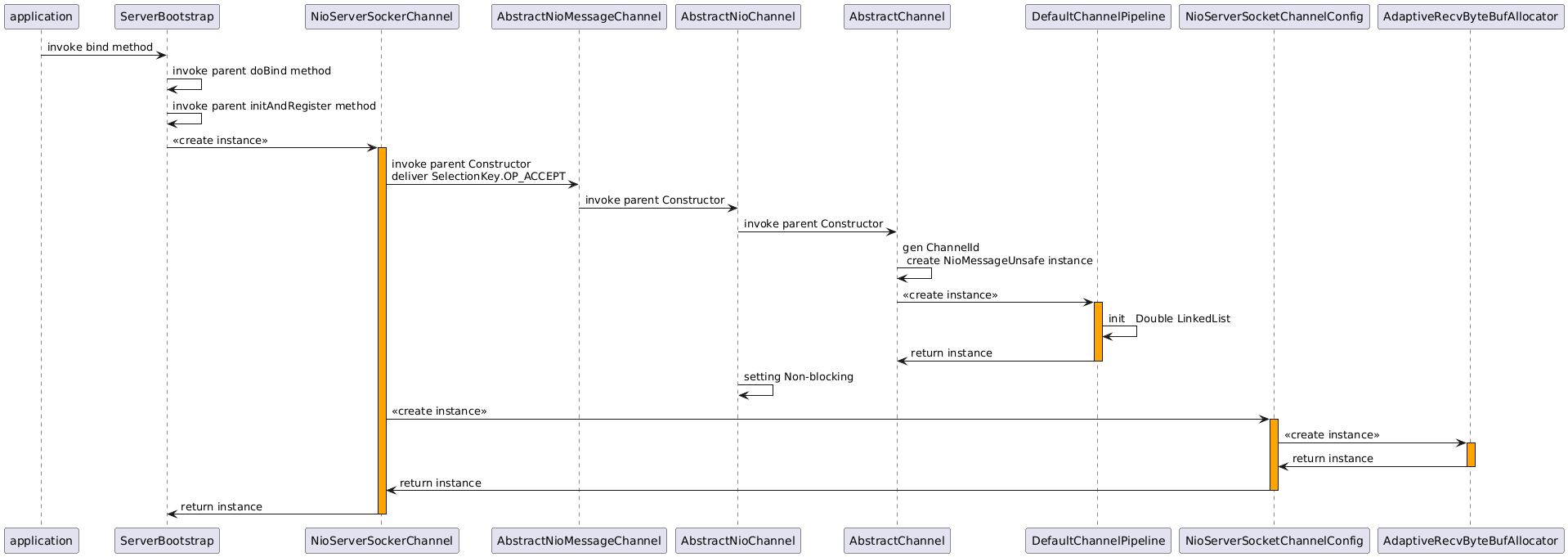

一、NioServerSocketChannel init

note:Initializing ChannelConfig creates a WriteBufferWaterMark instance,Default low 32k,high 64k
　　作用: 防止ChannelOutboundBuffer 太大最终导致内存溢出，达到 High water值，
　　会传播ChannelHandler 的 channelWritabilityChanged method,但是依旧能 write to buffer
　　需要依据ChannelOutboundBuffer.isWritable 方法判断是否继续 write 处理.
　　
　　方案:after write to buffer，调用 ChannelOutboundBuffer,isWritable 方法是否可写，不可写时候,
　　调用Channel config AutoRead 置为false,停止从Socket接收缓冲区读取到应用缓冲区
　　(利用Tcp协议栈的滑动窗口做流控)，监听ChannelHandler.channelWritabilityChanged 方法处理是否
　　恢复AutoRead:true

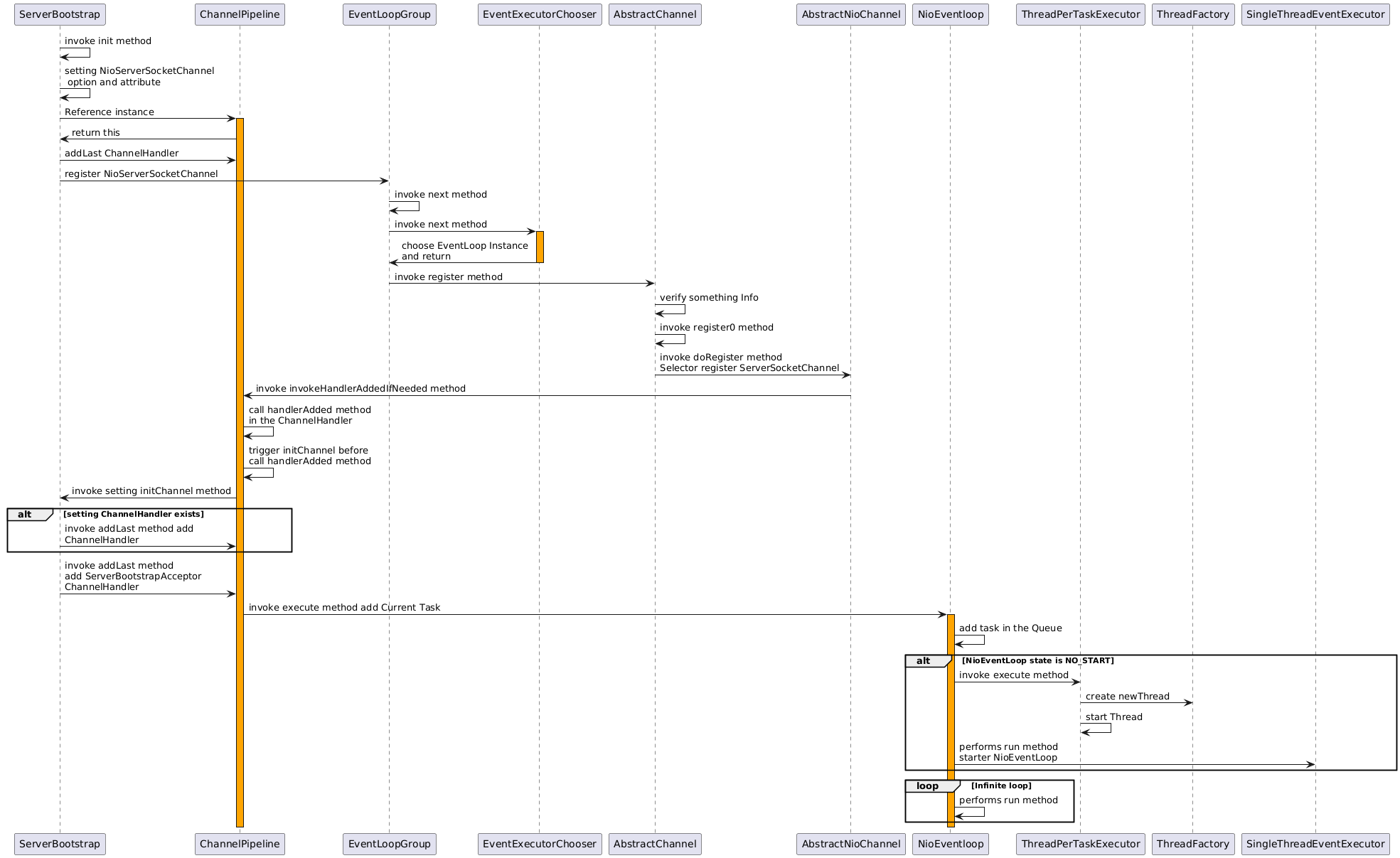

二、NioServerSocketChannel performs

register0 method code int the AbstractChannel class:

private void register0(ChannelPromise promise) {
  try {
    // check
    if (!promise.setUncancellable() || !ensureOpen(promise)) {
      return;
    }
    boolean firstRegistration = neverRegistered;
    doRegister();//Selector register ServerSocketChannel
    neverRegistered = false;
    registered = true;

    // 传播 ChannelHandler 的 handlerAdded 方法(先执行 initChannel 方法)
    // 之前在ServerBootstrap 类中定义的init 方法里将会触发ChannelInitializer 的执行
    // performs complete, remove current ChannelHandler
    pipeline.invokeHandlerAddedIfNeeded();

    safeSetSuccess(promise);//如果启用listener，callBacks Results

    //传播 channelHandler 的 channelRegistered 方法
    pipeline.fireChannelRegistered();

    // 是否传播 ChannelHandler 的 channelActive 方法
    if (isActive()) {
      if (firstRegistration) {
        pipeline.fireChannelActive();
      } else if (config().isAutoRead()) {//默认AutoRead:true(是否从Socket接收缓冲区读取数据)
        beginRead();
      }
    }
  } catch (Throwable t) {
    closeForcibly();
    closeFuture.setClosed();
    safeSetFailure(promise, t);
  }
}

note:sun Jdk的Selector选择是依据 OS 来挑选 select、poll、epoll．

三、ChannelPipeline, Channel, ChannelHandler 和 ChannelHandlerContext 的关系

.Channel 绑定到 ChannelPipeline
.ChannelPipeline 绑定到 包含 ChannelHandler 的 Channel
.ChannelHandler
.当添加 ChannelHandler 到 ChannelPipeline 时，ChannelHandlerContext 被创建

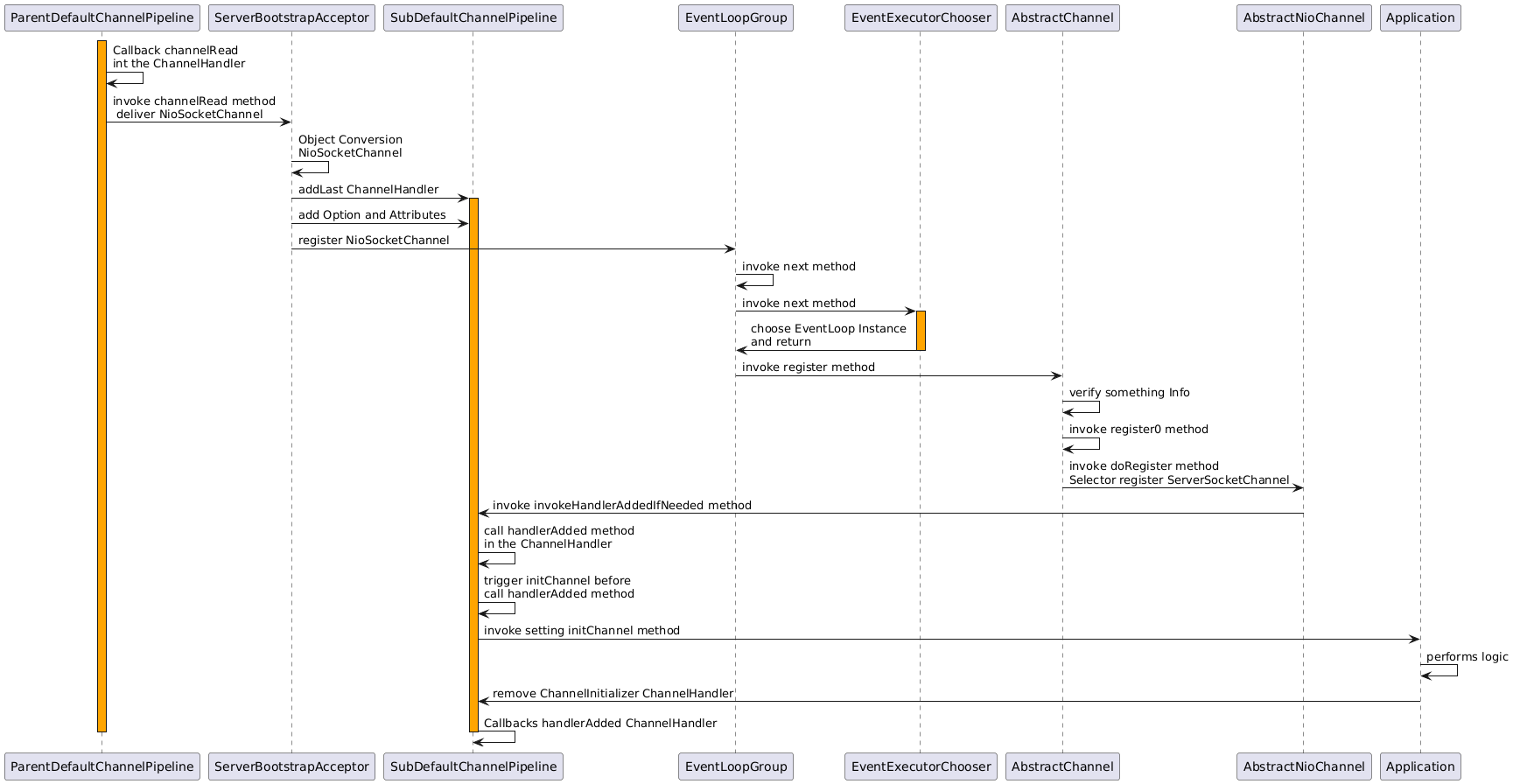

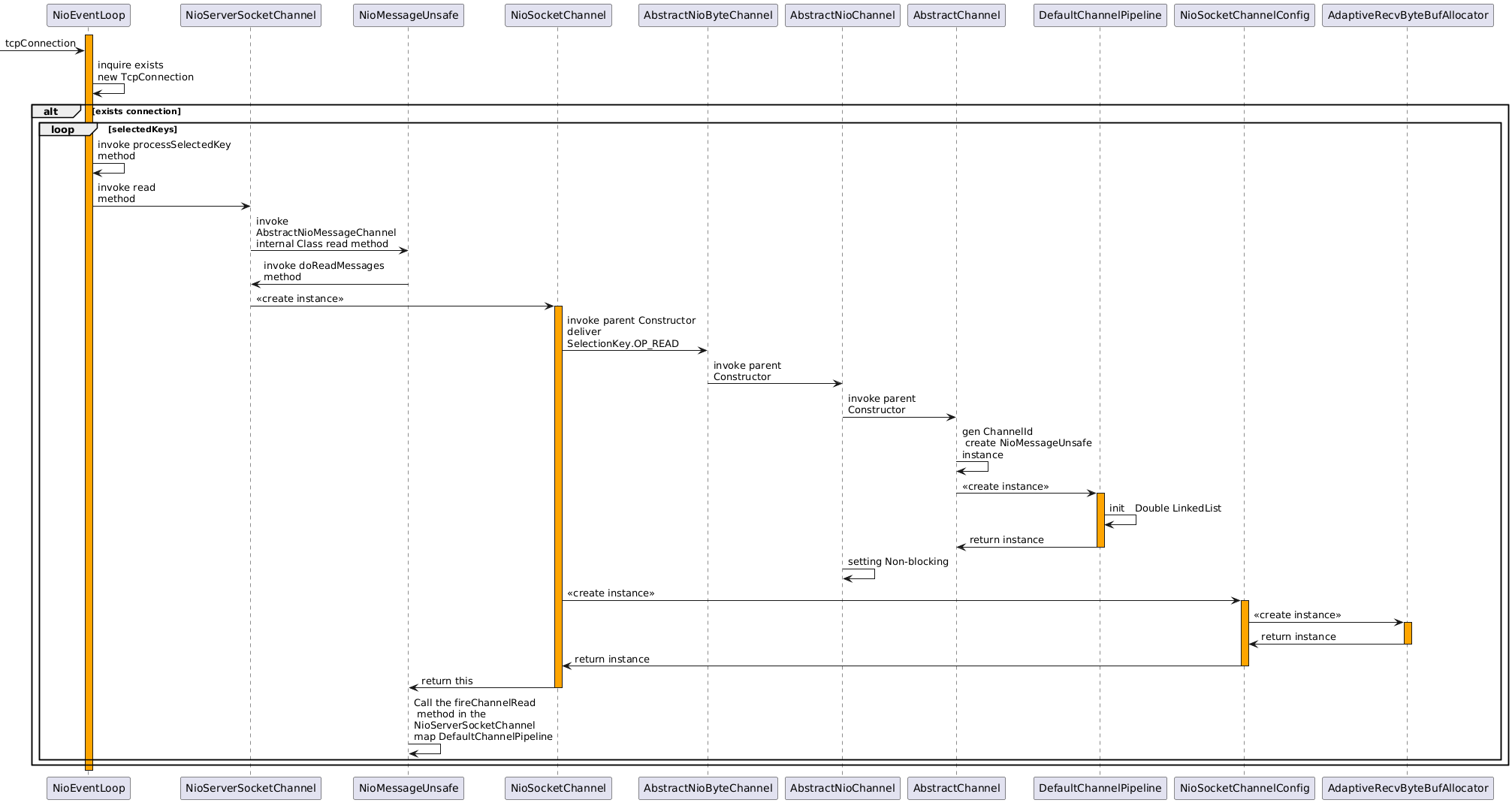

四、Client Connection to Server

note:传播之前添加的ServerBootstrapAcceptor(ChannelHandler) 的 channelRead 方法

note:ParentDefaultChannelPipeline -> NioServerSocketChannel
     SubDefaultChannelPipeline -> NioSocketChannel(a TcpConnection map a NioSocketChannel)
流程和NioServerSocketChannel一致，对Multi NioScoketChannel采用分治思想,多线程去承担(IO Read/Write),
利用multi core cpu.

Core Code in the ServerBootstrap.ServerBootstrapAcceptor Class:

public void channelRead(ChannelHandlerContext ctx, Object msg) {
        final Channel child = (Channel) msg;//Converted to NioSockerChannel

        child.pipeline().addLast(childHandler);//Add Application setting childHandler

        //添加Application 配置的相关属性和选项
        setChannelOptions(child, childOptions, logger);

        for (Entry<AttributeKey<?>, Object> e: childAttrs) {
            child.attr((AttributeKey<Object>) e.getKey()).set(e.getValue());
        }

        //切换NioSocketChannel 到其他线程的Scheduling和Register
        try {
            childGroup.register(child).addListener(new ChannelFutureListener() {
                @Override
                public void operationComplete(ChannelFuture future) throws Exception {
                    if (!future.isSuccess()) {//操作结果失败
                        forceClose(child, future.cause());
                    }
                }
            });
        } catch (Throwable t) {
            forceClose(child, t);
        }
    }

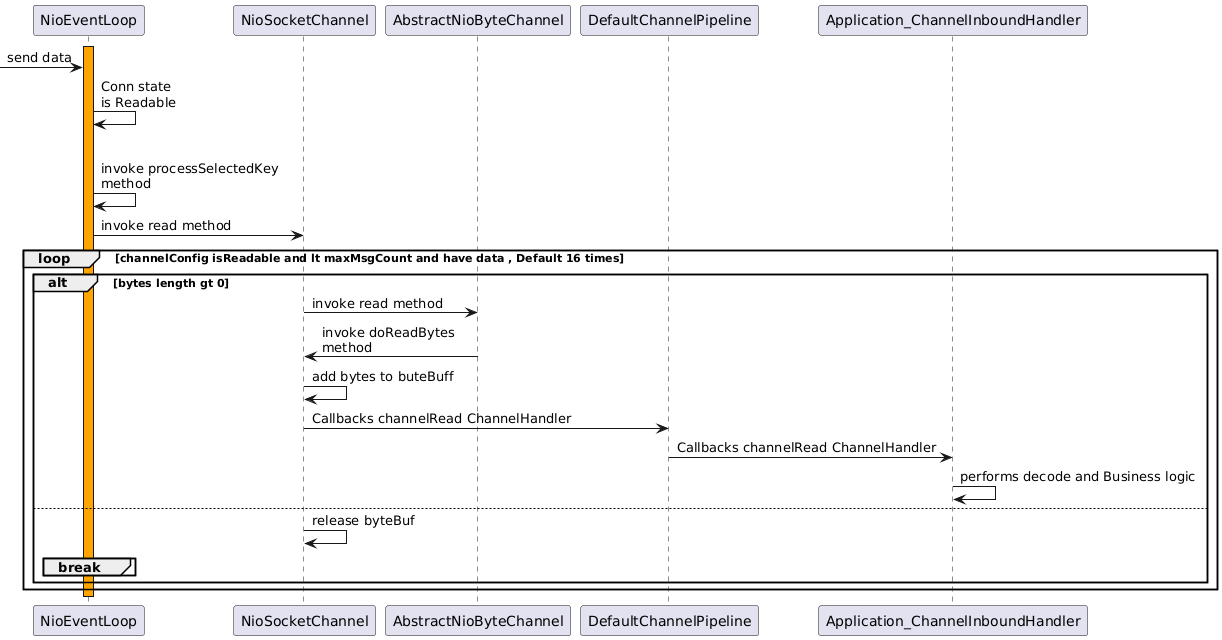

五、Client transmits data to the Server

Core Code in the AbstractNioByteChannel.NioByteUnsafe Class:

public final void read() {
        final ChannelConfig config = config();//获取NioSocketChannel 配置
        //检查是否可读
        if (shouldBreakReadReady(config)) {
            clearReadPending();
            return;
        }
        //接收缓存区分配器
        final ChannelPipeline pipeline = pipeline();
        final ByteBufAllocator allocator = config.getAllocator();
        final RecvByteBufAllocator.Handle allocHandle = recvBufAllocHandle();
        allocHandle.reset(config);//重置

        ByteBuf byteBuf = null;
        boolean close = false;
        try {
        　　//NioSocketChannel配置(AutoRead)是否可读,最大读取次数范围内是否读取数据流完毕
            do {
                byteBuf = allocHandle.allocate(allocator);//分配byteBuf
                allocHandle.lastBytesRead(doReadBytes(byteBuf));//读取数据流
                if (allocHandle.lastBytesRead() <= ) {//是否读取完毕
                    byteBuf.release();//释放资源
                    byteBuf = null;
                    close = allocHandle.lastBytesRead() < ;
                    if (close) {
                        readPending = false;
                    }
                    break;
                }

                allocHandle.incMessagesRead();//递增一次读取次数
                readPending = false;
                pipeline.fireChannelRead(byteBuf);//Callbacks channelRead ChannelHandler
                byteBuf = null;
            } while (allocHandle.continueReading());

            allocHandle.readComplete();
            pipeline.fireChannelReadComplete();//Callbacks channelReadComplete ChannelHandler

            if (close) {
                closeOnRead(pipeline);
            }
        }
        ...
    }
}

Flow:
                                                  I/O Request
                                                    Channel
                                                       |
   +---------------------------------------------------+---------------+
   |                           ChannelPipeline         |               |
   |                                                  \|/              |
   |    +---------------------+            +-----------+----------+    |
   |    | Inbound Handler  N  |            | Outbound Handler    |    |
   |    +----------+----------+            +-----------+----------+    |
   |              /|\                                  |               |
   |               |                                  \|/              |
   |    +----------+----------+            +-----------+----------+    |
   |    | Inbound Handler N- |            | Outbound Handler    |    |
   |    +----------+----------+            +-----------+----------+    |
   |              /|\                                  .               |
   |               .                                   .               |
   | ChannelHandlerContext.fireIN_EVT() ChannelHandlerContext.OUT_EVT()|
   |        [ method call]                       [method call]         |
   |               .                                   .               |
   |               .                                  \|/              |
   |    +----------+----------+            +-----------+----------+    |
   |    | Inbound Handler    |            | Outbound Handler M- |    |
   |    +----------+----------+            +-----------+----------+    |
   |              /|\                                  |               |
   |               |                                  \|/              |
   |    +----------+----------+            +-----------+----------+    |
   |    | Inbound Handler    |            | Outbound Handler  M  |    |
   |    +----------+----------+            +-----------+----------+    |
   |              /|\                                  |               |
   +---------------+-----------------------------------+---------------+
                   |                                  \|/
   +---------------+-----------------------------------+---------------+
   |               |                                   |               |
   |       [ Socket.read() ]                    [ Socket.write() ]     |
   |                                                                   |
   +-------------------------------------------------------------------+

writeAndFlush流程:
   Application --write--> ChannelOutboundBuffer --flush--> Socket发送缓冲区

六、Netty UDP Server is Single Thread Mode

note:不能阻塞IO线程，业务依靠业务线程池处理，否则Socket接收缓冲区溢出，会造成接收数据丢失，
数据可靠性问题，服务端设计方向利用 listen multi Network Interface 去处理，利用资源
