一文吃透如何部署kubernetes之Dashboard

kubernetes Dashboard是什么？
Dashboard是kubernetes的Web GUI，可用于在kubernetes集群上部署容器化应用，应用排错，管理集群本身及其附加的资源等，它常被管理员用于集群及应用速览，创建或修改单个资源，（如Deployments，Jobs，DaemonSets的等）以及扩展Deployment，启动滚动更新，重启pod或使用向导部署一个新应用等。

部署dashboard
#当前部署dashboard版本:v2.0.0,注意检查dashboard版本与kubernetes版本兼容性

root@K8s-node2:~# docker pull kubernetesui/dashboard:v2.0.0-rc6
root@K8s-node2:~# docker pull kubernetesui/metrics-scraper:v1.0.3
root@K8s-master:/usr/local/src# vim dash_board-2.0.0-rc6.yml
containers:
        - name: kubernetes-dashboard
          image: kubernetesui/dashboard:v2.0.0-rc6
          imagePullPolicy: Always
kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: dashboard-metrics-scraper
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard

kubectl apply -f dash_board-2.0.0-rc6.yml
root@K8s-master:~# kubectl apply -f ad_min-user.yml

2.获取token

root@K8s-master:~# kubectl get secret -A | grep admin-user
root@K8s-master:~# kubectl describe secret admin-user-token-f8dxt -n kubernetes-dashboard
ard
Name:         admin-user-token-f8dxt
Namespace:    kubernetes-dashboard
Labels:       <none>
Annotations:  kubernetes.io/service-account.name: admin-user
              kubernetes.io/service-account.uid: 97addc8d-e189-4df0-bd3c-0a63227d51b3

Type:  kubernetes.io/service-account-token

Data
====
ca.crt:     1025 bytes
namespace:  20 bytes
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6IlA3RnBTTGVvbG44azA5M1B1bDVuMU81M0pBU0hhWGE2eG5ENFlBR3BNWVkifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLWY4ZHh0Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiI5N2FkZGM4ZC1lMTg5LTRkZjAtYmQzYy0wYTYzMjI3ZDUxYjMiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZXJuZXRlcy1kYXNoYm9hcmQ6YWRtaW4tdXNlciJ9.VPD5ywdQ72bniCo-etcf731gv_jjIux6PamWjYZANCStY6ayTRAla71G-g5D8gCDqiwdbQdMu7Sf8g64Y9z_E5vnhc7hklGC4A2qw2v6q8lnPnDG8RMkzLhA2NM-aRIy5df0bPRzhBas9YofaQHv_5TjOJEY4TWJ0XZkk78h_JM16X-ttS1-by_DnMGvnZGzu30wct-Twv0R-F-AuxETh3lGr2iL4uJZ41tnyefdrDvXB0un2OtgShlmu6HvqQXKFrw3umhUpasHo7OxtZX-f-2EFTz3xiQTt6QQY13YA2X48hqwtmCgREBiWJuV0aY7xXkI9qli-Ko6Ma4ra19IMA

3.验证nodeport
root@K8s-master:/usr/local/src# kubectl get svc -A
NAMESPACE              NAME                        TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                  AGE
default                kubernetes                  ClusterIP   10.20.0.1       <none>        443/TCP                  21h
kube-system            kube-dns                    ClusterIP   10.20.0.10      <none>        53/UDP,53/TCP,9153/TCP   21h
kubernetes-dashboard   dashboard-metrics-scraper   ClusterIP   10.20.121.211   <none>        8000/TCP                 4h48m
kubernetes-dashboard   kubernetes-dashboard        NodePort    10.20.41.179    <none>        443:30002/TCP            4h48m

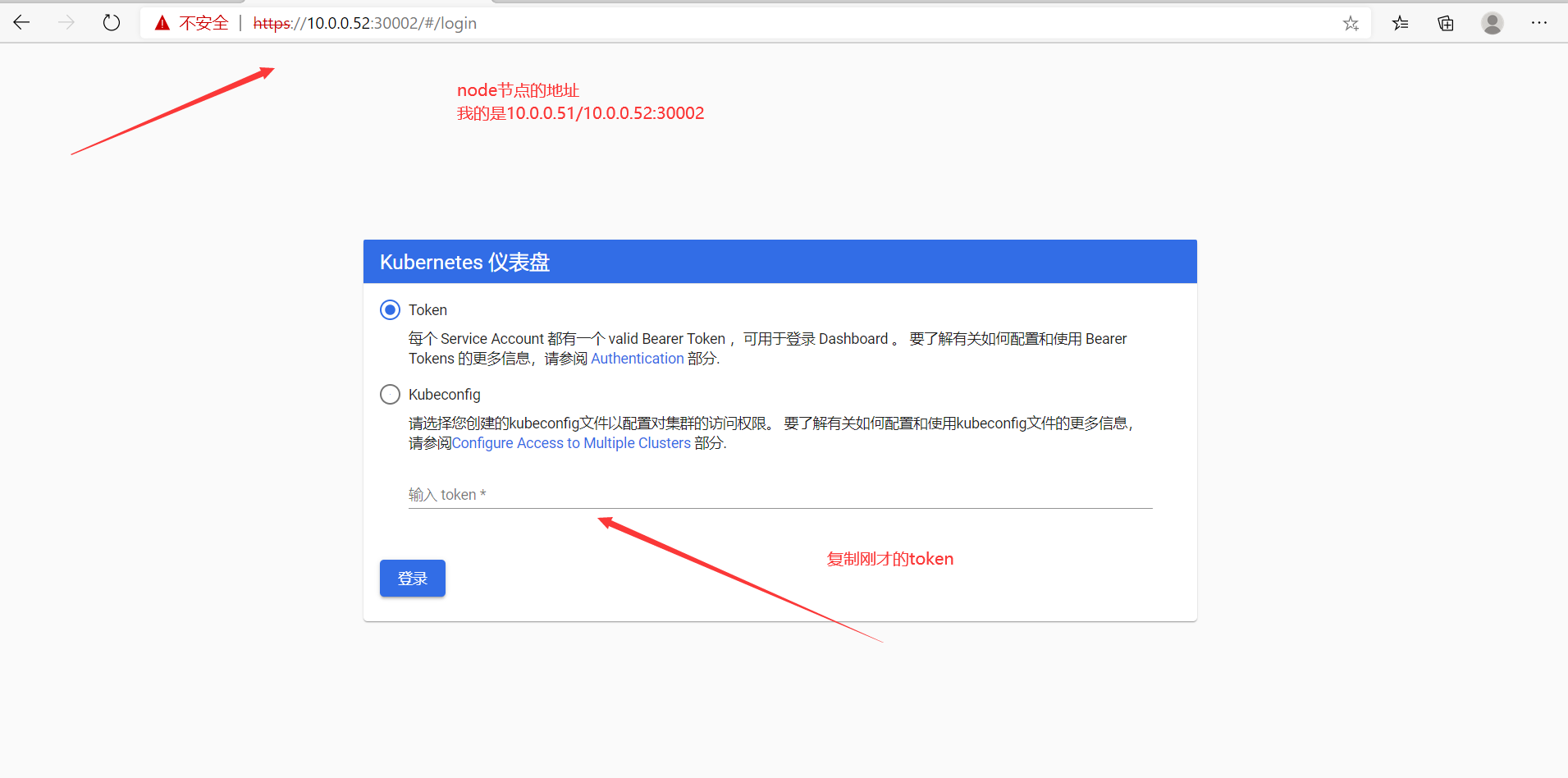

4.验证登录

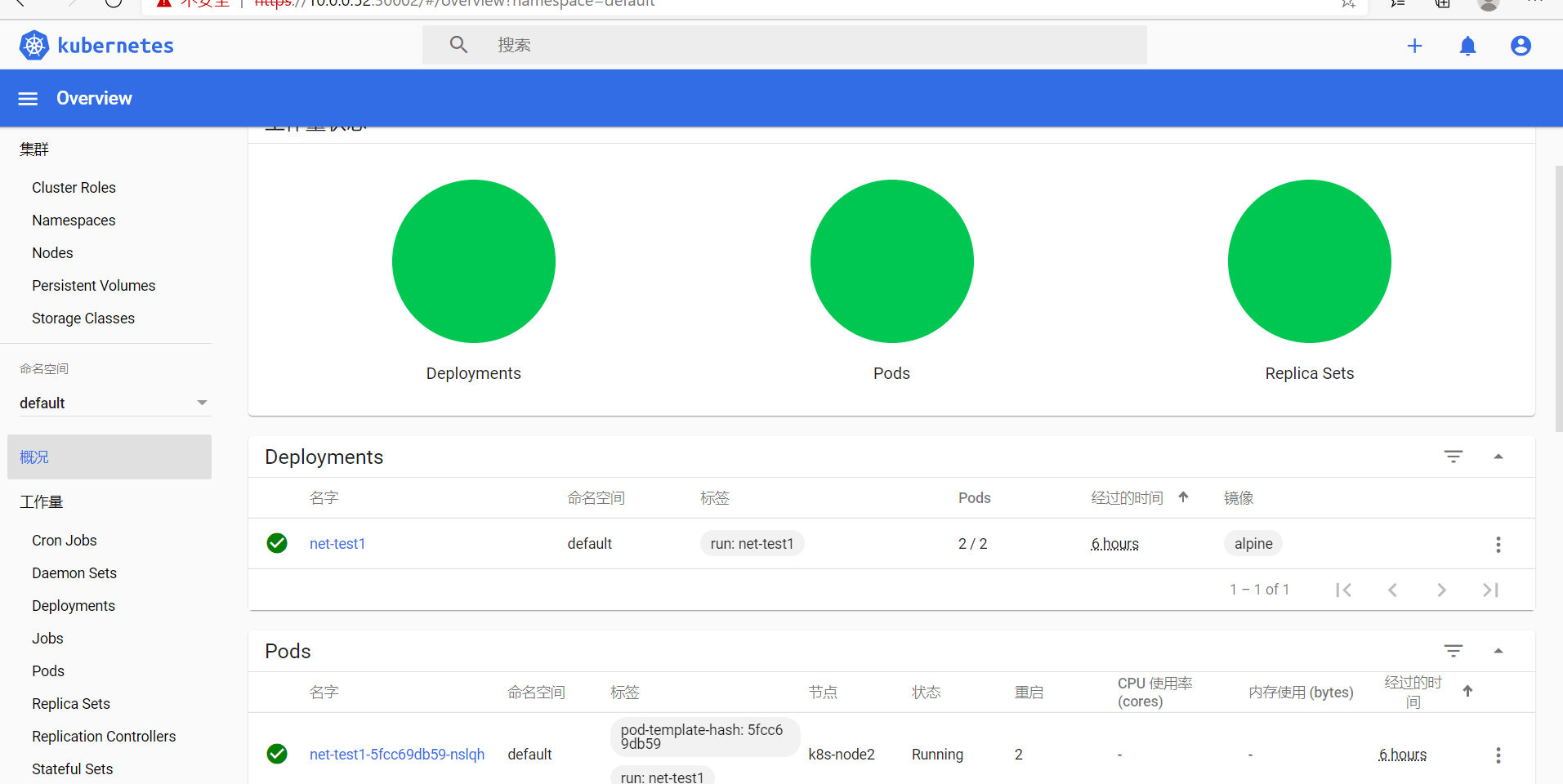

5.登录成功

#！！！！到此 kubernetes之dashboard部署完成，希望对你有所帮助
