Neo4j 爬坑笔记for3.2.6

官网语法，非常详尽：http://neo4j.com/docs/developer-manual/current/cypher/clauses/match/

A：请对应版本号，不同大版本可能会有很大区别

B：我会对我学习过程中遇到的难点详细说明，有些基本的东西会带过

C:  初学，有错误我以后会修改

=============================2017.11.02============================================

1、是什么：

简单来说就是用于图形计算的非关系行数据库。

2、安装：略

      linux与windows版本，学习的话装windows即可，安装非常简单，这里不说了，百度会有好多。

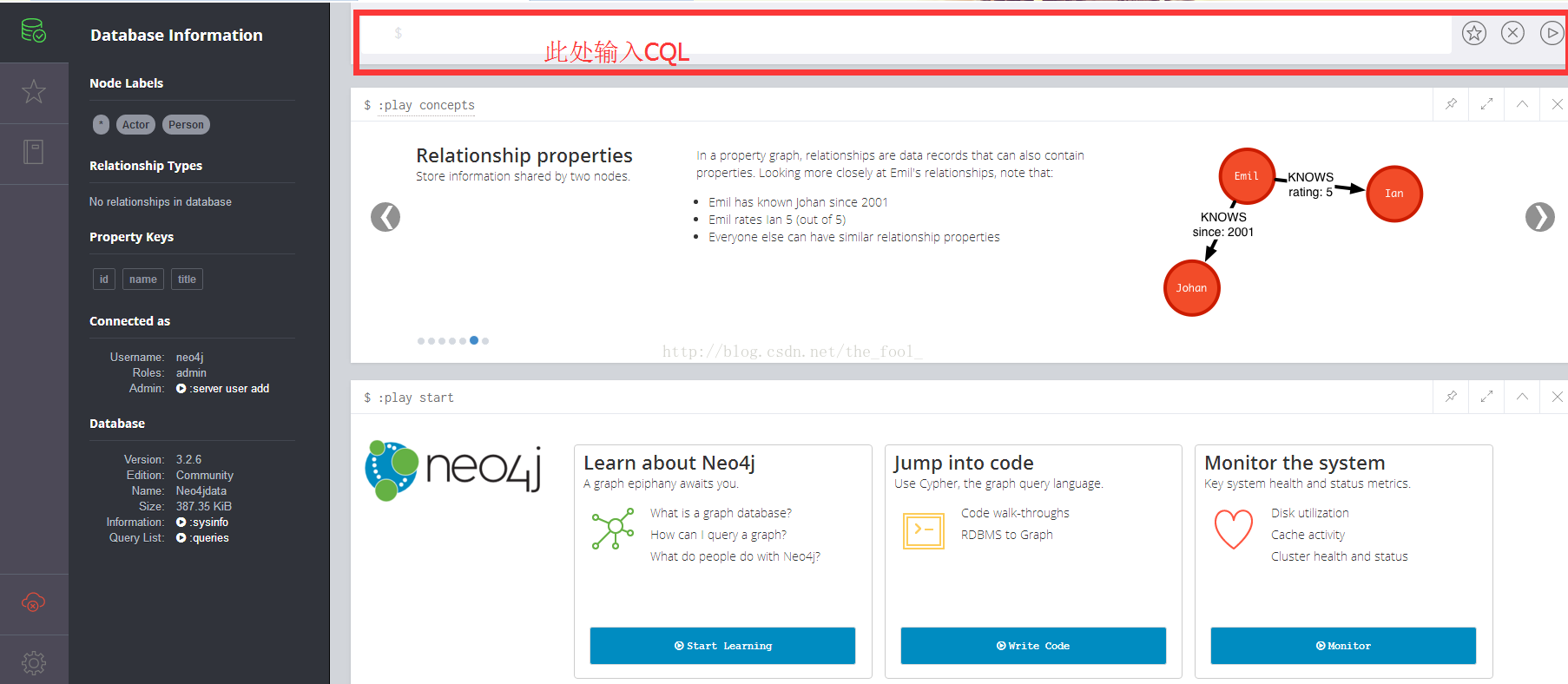

      进入如图：



3、使用：

      版本：v3.2.6                 2017.11.2日最新版本

a、基础语法CQL（网上语法很多，但都没有解释什么是什么）：

      节点

      增：create (a:aDemo{dId:"001",name:"zhangsan"})

      create:创建（创建出来的点叫节点）；

      a：我开始理解的是类似表别名、变量名（很可能不对，好像没有什么意义，先一放）；

      aDemo：经试验类似于表名，或者说一个类型的集合

create (a:aDemo{dId:"001",name:"zhangsan"})

        create (a:aDemo{dId:"002",name:"lisi"})

        create (a:aDemo{dId:"003",name:"wamhwu"})

        create (a:aDemo{dId:"003",name:"wamhwu"})

        create (a:aDemo{dId:"003",name:"wamhwu"})

依次执行，我创建了五个节点，每个节点内置了一个自增的唯一id

删：MATCH(n:aDemo
{name:"lisi"}) DETACH DELETE n

查：MATCH
(n) RETURN n  也可：start
a = node(*) return a//查询所有集合中所有数据

MATCH (n:aDemo) RETURN n LIMIT 25//查询 aDemo集合中所有数据

MATCH (n:aDemo{name:"zhangsan"}) RETURN n LIMIT 25

改：MATCH
(dc:aDemo{name:"zhangsan"})SET dc.newAttr = "new attr" RETURN dc

关系：

摘抄地址：W3C：https://www.w3cschool.cn/neo4j/neo4j_cql_relationship_basics.html

语法：

	CREATE (<node1-details>)-[<relationship-details>]->(<node2-details>)

<node1-details>是“From Node”节点详细信息

<node2-details>是“到节点”节点详细信息

relationship-details>是关系详细信息

CREATE (n1:aDemo{name:"zhangsan"})-[r1:Relationship]->(n2:aDemo{name:"wangwu"})

此处值得注意的是，我有多个张三一个李四，只建立了一条关系（最后一条张三（id最大））

=========================================================================

基础语法不准备再补充了，有这点基础，就可以边百度边用了，下面是尝试集成到Spring4中，网上只有

集成到Spring-boot的资源与教程，但是为了加一个图数据库改动框架实在有些得不偿失。

首先看一下简单的JDBC：

demo写完就找不到了，那就不管了，下面是需求，结合SpringMVC使用Neo4j

===================================================================================20171110

今天正式填完了所有坑，下面记录下过程：

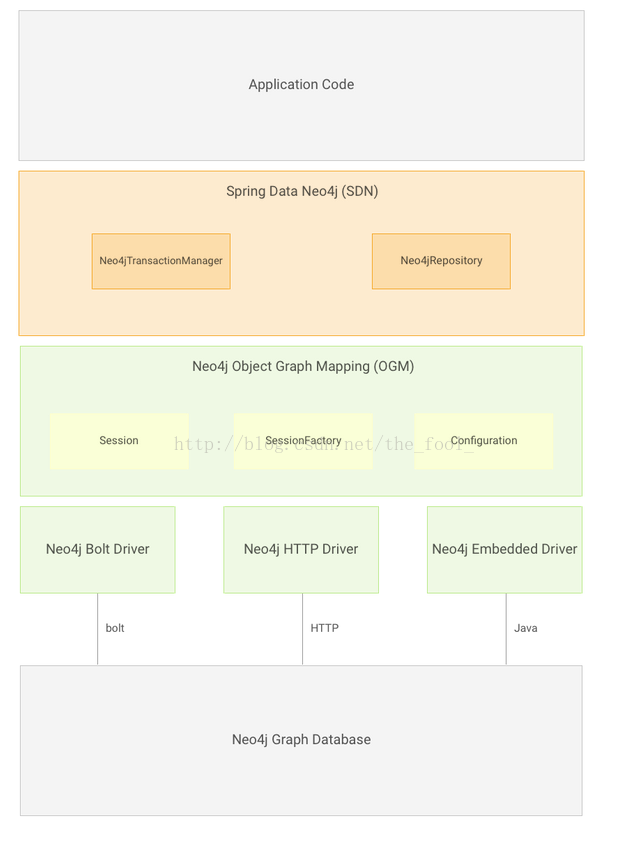

官方文档祭天：

https://docs.spring.io/spring-data/data-neo4j/docs/4.2.0.RELEASE/reference/html/#preface.requirements

首先对应版本：

3. Requirements

Spring Data Neo4j 4.2.x at minimum, requires:

JDK Version 8 and above.

Neo4j Graph Database 2.3.x / 3.0.x / 3.1.x and above.

Spring Framework 4.3.6.RELEASE and above.

If you plan on altering the version of the OGM make sure it is only in the 2.1.1+

release family.

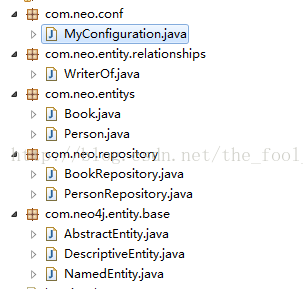

项目结构：

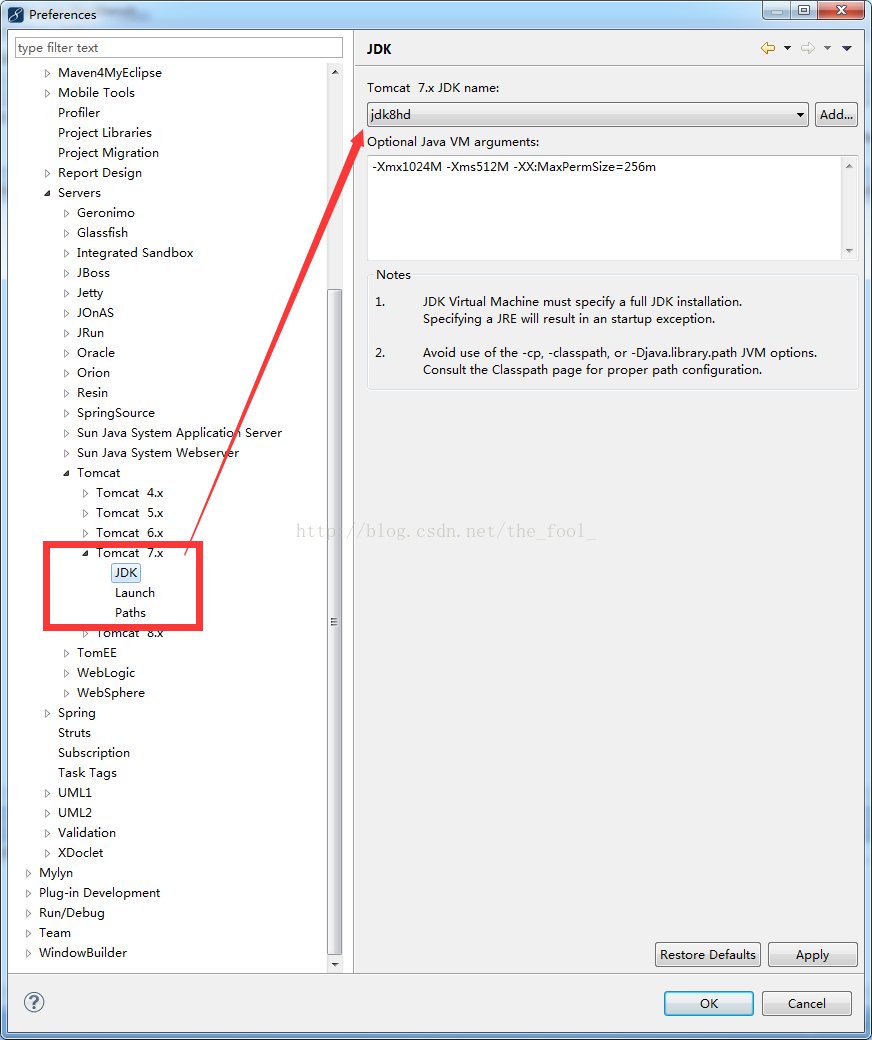

升级jdk（主要是把编译器换成1.8的）：

根据要求配置依赖包：



	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<spring.version>4.3.12.RELEASE</spring.version><!-- 声明版本号，以后统一在这里进行管理 -->
	</properties>
	<dependencies>
		<!-- neo4j-data以及依赖包 -->
		<dependency>
			<groupId>org.springframework.data</groupId>
			<artifactId>spring-data-neo4j</artifactId>
			<version>4.2.8.RELEASE</version><!-- 4.1.1.RELEASE -->
		</dependency>
		<dependency>
			<groupId>org.neo4j</groupId>
			<artifactId>neo4j-ogm-core</artifactId>
			<version>2.1.1</version>
			<scope>compile</scope>
		</dependency>
		<!-- Only add if you're using the Bolt driver这里我选择了bolt协议 -->
		<dependency>
			<groupId>org.neo4j</groupId>
			<artifactId>neo4j-ogm-bolt-driver</artifactId>
			<version>2.1.1</version>
			<scope>runtime</scope>
		</dependency>
		<!-- Only add if you're using the HTTP driver -->
		<!-- <dependency> <groupId>org.neo4j</groupId> <artifactId>neo4j-ogm-http-driver</artifactId>
			<version>2.1.1</version> <scope>runtime</scope> </dependency> -->

		<!-- Only add if you're using the Embedded driver -->
		<!-- <dependency> <groupId>org.neo4j</groupId> <artifactId>neo4j-ogm-embedded-driver</artifactId>
			<version>2.1.1 RELEASE</version> <scope>runtime</scope> </dependency> -->
因为升级了spring版本，对其它组件版本进行了微调，这个不难，也就不列举了

配置启动类（有xml与方法配置的方式，这里使用了后者）：

MyConfiguration类：
package com.neo.conf;

import org.neo4j.ogm.session.SessionFactory;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.neo4j.repository.config.EnableNeo4jRepositories;
import org.springframework.transaction.annotation.EnableTransactionManagement;

@Configuration
@EnableNeo4jRepositories(basePackages = "com.neo.repository")//相当于service、执行库的位置
@EnableTransactionManagement
public class MyConfiguration {

   @Bean
   public org.neo4j.ogm.config.Configuration getConfiguration() {
      org.neo4j.ogm.config.Configuration config =
               new org.neo4j.ogm.config.Configuration();
      // TODO: Temporary uses the embedded driver. We need to switch to http
      // driver. Then we can horizontally scale neo4j
      config.driverConfiguration()
      .setDriverClassName("org.neo4j.ogm.drivers.bolt.driver.BoltDriver")
      .setURI("bolt://neo4j:123456@localhost")
      .setConnectionPoolSize(150);
      return config;
   }

   @Bean
   public SessionFactory getSessionFactory() {
      // Return the session factory which also includes the persistent entities
      return new SessionFactory(getConfiguration(), "com.neo.entitys");
   }
}

Repository类：

/**
 * @author Michael Hunger
 * @author Mark Angrish
 */

public interface MovieRepository  extends GraphRepository<Movie>{

	Movie findByTitle(@Param("title") String title);

	Collection<Movie> findByTitleLike(@Param("title") String title);

	@Query("MATCH (m:Movie)<-[r:ACTED_IN]-(a:Person) RETURN m,r,a LIMIT {limit}")
	Collection<Movie> graph(@Param("limit") int limit);
}

@Repository
public interface PersonRepository extends GraphRepository<PersonBak> {
}

public interface RoleRepository extends GraphRepository<Role> {}

Entity类：

@JsonIdentityInfo(generator=ObjectIdGenerators.PropertyGenerator.class, property="id")
@NodeEntity
public class Movie {

	@GraphId
	private Long id;

	private String title;

	private int released;

	private String tagline;

	@Relationship(type = "ACTED_IN", direction = Relationship.INCOMING)
	private List<Role> roles = new ArrayList<>();

	public Movie() {
	}

	public Movie(Long id,String title, int released) {
		this.id=id;
		this.title = title;
		this.released = released;
	}
	public Movie(String title, int released) {
		this.title = title;
		this.released = released;
	}
	public Long getId() {
		return id;
	}
	public void setId(Long id) {
		this.id = id;
	}
	public String getTitle() {
		return title;
	}
	public int getReleased() {
		return released;
	}

	public String getTagline() {
		return tagline;
	}
	public Collection<Role> getRoles() {
		return roles;
	}
	public void addRole(Role role) {
		this.roles.add(role);
	}
}

@JsonIdentityInfo(generator=ObjectIdGenerators.PropertyGenerator.class, property="id")
@NodeEntity
public class Person {

	@GraphId
	private Long id;

	private String name;

	private int born;

	@Relationship(type = "ACTED_IN")
	private List<Movie> movies = new ArrayList<>();

	public Person() {
	}
	public Person(String name) {
		this.name = name;
	}
	public Person( Long id,String name) {
		this.id = id;
		this.name = name;
	}
	public Long getId() {
		return id;
	}
	public String getName() {
		return name;
	}
	public int getBorn() {
		return born;
	}
	public List<Movie> getMovies() {
		return movies;
	}
}

@JsonIdentityInfo(generator=ObjectIdGenerators.PropertyGenerator.class, property="id")
@RelationshipEntity(type = "ACTED_IN")
public class Role {

	@GraphId
	private Long id;

	private Collection<String> roles = new ArrayList<>();

	@StartNode
	private Person person;

	@EndNode
	private Movie movie;

	public Role() {
	}
	public Role(Movie movie, Person actor) {
		this.movie = movie;
		this.person = actor;
	}
	public Long getId() {
		return id;
	}
	public Collection<String> getRoles() {
		return roles;
	}
	public Person getPerson() {
		return person;
	}
	public Movie getMovie() {
		return movie;
	}
	public void addRoleName(String name) {
		this.roles.add(name);
	}
}

使用：
@Autowired
	private PersonRepository personRepository;
	@Autowired
	MovieRepository movieRepository;
	@Autowired
	RoleRepository roleRepository;

    Public void test(){
		Person persontmp1=new Person("anmuxi12222");
		Movie movieTmp=new Movie(66l,"title22222222",1);

		Role ro = new Role(movieTmp,persontmp1);

		roleRepository.save(ro);
Collection<Movie> graph = movieRepository.graph(10);
		Iterator<Movie> iterator = graph.iterator();
		while (iterator.hasNext()) {
			Movie next = iterator.next();
			System.out.println(next.getId());

		}
}

这时候发现，存在中文乱码情况：

查看源码，打印了下系统编码

String csn = Charset.defaultCharset().name();

System.err.println(csn);//结果是GBK

配置环境变量：

“JAVA_TOOL_OPTIONS” 变量，值为“-Dfile.encoding=UTF-8” over
