(转载)基于Unity~UGUI的简单UI框架（附UIFramework源码）

此博客跟随siki老师的课程笔记生成，感谢siki老师的辛勤付出！
此框架功能较简单，适用于学习，可以很好的锻炼我们的设计思想
框架源码地址： UIFramework
litjson.dll下载地址： litjson

---

不使用UI框架存在的一些问题

---

1.随着游戏系统的复杂，UI控件越来越多，各个UI直接的通讯，以及UI与GameObject之间的通讯形成一张复杂的蜘蛛网，
拖着拖着，有时候我都忘了哪个对象跟哪个对象关联了。如果是别人要看我的程序，我估计他找半天都找不到UI逻辑的入口。
2.耦合性非常严重，如果要改变需求，更改某个UI或者更改某个游戏对象，那么你需要再手动全部与该对象关联的物件重新更改一次。
3.作为强迫症的程序员，最受不了程序代码的混乱。这种组织方式十分“不优雅”，看着很乱。
鉴于以上各种情况，我们需要寻找一种新的，科学的，高效的UI管理方式

---

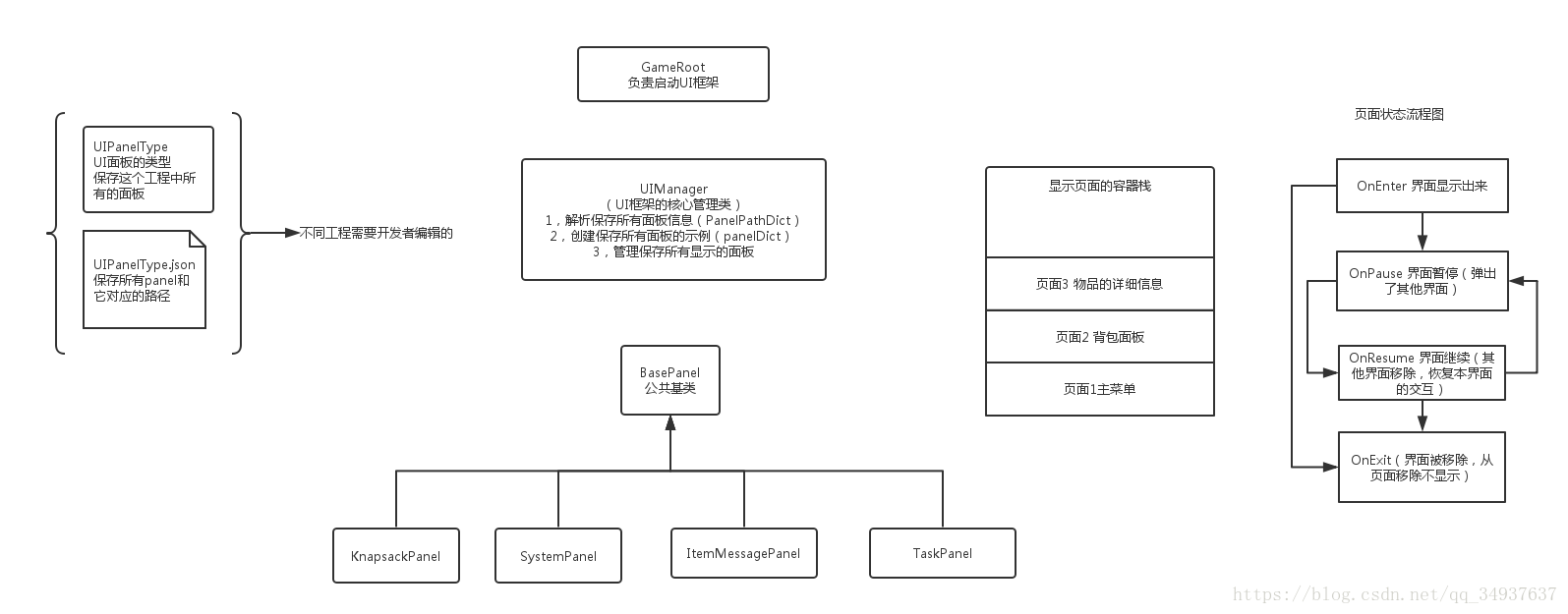

UI框架总揽：

---

---

创建测试面板（非框架部分）

---

将面板以Prefab形式放入Resources文件夹下面，便于框架加载面板

---

创建json文件和UIPanelType类来保存所有的面板信息

---

UIPanelType.json：

{
    "panelInfoList":
    [
        {"panelType":"MainMenu","path":"UIPanel/MainMenuPanel"},
        {"panelType":"ItemMessage","path":"UIPanel/ItemMessagePanel"},
        {"panelType":"Knapsack","path":"UIPanel/KnapsackPanel"},
        {"panelType":"Shop","path":"UIPanel/ShopPanel"},
        {"panelType":"Skill","path":"UIPanel/SkillPanel"},
        {"panelType":"System","path":"UIPanel/SystemPanel"},
        {"panelType":"Task","path":"UIPanel/TaskPanel"}
    ]
}

UIPanelType.cs：

public class UIPanelType {
    public const string MainMenu = "MainMenu";
    public const string Knapsack = "Knapsack";
    public const string ItemMessage = "ItemMessage";
    public const string Shop = "Shop";
    public const string Skill = "Skill";
    public const string System = "System";
    public const string Task = "Task";
}

---

开发UIManger来解析面板信息json文件（框架核心：UIManager）

---

UIManager为框架的核心，全局只有一个UIManager，因此UIManager要使用单例模式
现阶段的完整的UIManager.cs（后续还会继续完善）：

using System.Collections.Generic;
using System.Collections;
using System;
using UnityEngine;
using LitJson;
public class UIPanelManager
{
    private static UIPanelManager _instance;

    public static UIPanelManager Instance
    {
        get
        {
            if (_instance == null)
            {
                _instance = new UIPanelManager();
            }
            return _instance;
        }
    }

    private Dictionary<string, string> panelPathDict;
    //private Dictionary<UIPanelType,>
    //private Stack<>

    private UIPanelManager()
    {
        ParseUIPanelTypeJson();
    }

    private void ParseUIPanelTypeJson()
    {
        panelPathDict = new Dictionary<string, string>();
        TextAsset textUIPanelType = Resources.Load<TextAsset>("UIPanelTypeJson");
        UIPanelInfoList panelInfoList = JsonMapper.ToObject<UIPanelInfoList>(textUIPanelType.text);

        foreach (UIPanelInfo panelInfo in panelInfoList.panelInfoList)
        {
            panelPathDict.Add(panelInfo.panelType, panelInfo.path);
            Debug.Log(panelInfo.panelType + ":" + panelInfo.path);
        }
    }
}

---

开发BasePanel抽象类（各个UIPanel的基类）

---

BasePanel给每个Panel定义了四个事件：
OnEnter：面板进入时调用
OnPause：面板停止时调用（鼠标与面板的交互停止）
OnResume：面板恢复使用时调用（鼠标与面板的交互恢复）
OnExit：面板退出时调用

using UnityEngine;

public abstract class BasePanel : MonoBehaviour
{
    public abstract void OnEnter();

    public abstract void OnPause();

    public abstract void OnResume();

    public abstract void OnExit();

}

给各个面板添加UIPanel类（非框架部分）

using UnityEngine;

public class MainMenuPanel : BasePanel
{

    public override void OnEnter()
    {
    }

    public override void OnPause()
    {
    }

    public override void OnResume()
    {
    }

    public override void OnExit()
    {
    }
}

---

对UI面板Prefab实例化的创建与管理

---

获取Panel（如果panel没有被实例化，进行实例化，并且存储到已经实例化好的panel字典中）

private BasePanel GetPanel(string panelType)
    {
        BasePanel panel = panelDict.GetValue(panelType);

        //如果没有实例化面板，寻找路径进行实例化，并且存储到已经实例化好的字典面板中
        if (panel == null)
        {
            string path = panelPathDict.GetValue(panelType);
            Transform panelTransform = GameObject.Instantiate(Resources.Load<GameObject>(path), canvasTransform).transform;
            panel = panelTransform.GetComponent<BasePanel>();
            panelDict.Add(panelType, panel);
        }
        return panel;
    }

字典的扩展：

using System.Collections.Generic;

public static class DictTool
{
    public static Tvalue GetValue<Tkey, Tvalue>(this Dictionary<Tkey, Tvalue> dict, Tkey key)
    {
        Tvalue value = default(Tvalue);
        dict.TryGetValue(key, out value);
        return value;
    }
}

现阶段的完整的UIManager.cs（后续还会继续完善）：

using System.Collections.Generic;
using System.Collections;
using System;
using UnityEngine;
using LitJson;
public class UIPanelManager
{
    private static UIPanelManager _instance;
    private Transform canvasTransform;
    private Transform CanvasTransform
    {
        get
        {
            if (canvasTransform == null)
            {
                canvasTransform = GameObject.Find("Canvas").transform;
            }
            return canvasTransform;
        }
    }
    public static UIPanelManager Instance
    {
        get
        {
            if (_instance == null)
            {
                _instance = new UIPanelManager();
            }

            return _instance;
        }
    }

    private Dictionary<string, string> panelPathDict;
    private Dictionary<string, BasePanel> panelDict;
    //private Stack<>

    private UIPanelManager()
    {
        ParseUIPanelTypeJson();
    }

    private BasePanel GetPanel(string panelType)
    {

        if (panelDict == null)
        {
            panelDict = new Dictionary<string, BasePanel>();
        }

        BasePanel panel = panelDict.GetValue(panelType);

        //如果没有实例化面板，寻找路径进行实例化，并且存储到已经实例化好的字典面板中
        if (panel == null)
        {
            string path = panelPathDict.GetValue(panelType);
            GameObject panelGo = GameObject.Instantiate(Resources.Load<GameObject>(path), CanvasTransform, false);
            panel = panelGo.GetComponent<BasePanel>();
            panelDict.Add(panelType, panel);
        }
        return panel;
    }

    //解析json文件
    private void ParseUIPanelTypeJson()
    {
        panelPathDict = new Dictionary<string, string>();
        TextAsset textUIPanelType = Resources.Load<TextAsset>("UIPanelTypeJson");
        UIPanelInfoList panelInfoList = JsonMapper.ToObject<UIPanelInfoList>(textUIPanelType.text);

        foreach (UIPanelInfo panelInfo in panelInfoList.panelInfoList)
        {
            panelPathDict.Add(panelInfo.panelType, panelInfo.path);
            //Debug.Log(panelInfo.panelType + ":" + panelInfo.path);
        }
    }
}

---

开发界面存储栈，并进行出栈和入栈操作

---

【设计理念】
1.鼠标只允许和一个界面进行交互，当一个界面显示后，上一个界面要停止和鼠标的交互
2.界面显示，进行入栈操作（Push，OnEnter），停止上一个界面（OnPause）
3.界面隐藏，进行出栈操作（Pop，OnExit），恢复上一个界面（OnResume）

 private Stack<BasePanel> panelStack;
    public void PushPanel(string panelType)
    {
        if (panelStack == null)
        {
            panelStack = new Stack<BasePanel>();
        }

        //停止上一个界面
        if (panelStack.Count > 0)
        {
            BasePanel topPanel = panelStack.Peek();
            topPanel.OnPause();
        }

        BasePanel panel = GetPanel(panelType);
        panelStack.Push(panel);
        panel.OnEnter();
    }

    public void PopPanel()
    {
        if (panelStack == null)
        {
            panelStack = new Stack<BasePanel>();
        }
        if (panelStack.Count <= 0)
        {
            return;
        }

        //退出栈顶面板
        BasePanel topPanel = panelStack.Pop();
        topPanel.OnExit();

        //恢复上一个面板
        if (panelStack.Count > 0)
        {
            BasePanel panel = panelStack.Peek();
            panel.OnResume();
        }

    }

---

控制Panel之间的跳转（非框架部分）

---

完善面板中的一些操作，实现面板之间的跳转，此部分不是框架部分，省略！
MainMenuPanel.cs：

using UnityEngine;
using UnityEngine.UI;

public class MainMenuPanel : BasePanel
{
    private Button TaskButton;
    private Button KnapsackButton;
    private Button SkillButton;
    private Button ShopButton;
    private Button SystemButton;
    private CanvasGroup canvasGroup;
    void Awake()
    {
        TaskButton = transform.Find("IconPanel/TaskButton").GetComponent<Button>();
        KnapsackButton = transform.Find("IconPanel/KnapsackButton").GetComponent<Button>();
        SkillButton = transform.Find("IconPanel/SkillButton").GetComponent<Button>();
        ShopButton = transform.Find("IconPanel/ShopButton").GetComponent<Button>();
        SystemButton = transform.Find("IconPanel/SystemButton").GetComponent<Button>();
        canvasGroup = transform.GetComponent<CanvasGroup>();

        TaskButton.onClick.AddListener(OnTaskButtonClick);
        KnapsackButton.onClick.AddListener(OnKnapsackButtonClick);
        SkillButton.onClick.AddListener(OnSkillButtonClick);
        ShopButton.onClick.AddListener(OnShopButtonClick);
        SystemButton.onClick.AddListener(OnSystemButtonClick);
    }

    void OnDestory()
    {
        TaskButton.onClick.RemoveListener(OnTaskButtonClick);
        KnapsackButton.onClick.RemoveListener(OnKnapsackButtonClick);
        SkillButton.onClick.RemoveListener(OnSkillButtonClick);
        ShopButton.onClick.RemoveListener(OnShopButtonClick);
        SystemButton.onClick.RemoveListener(OnSystemButtonClick);
    }
    public override void OnEnter()
    {
    }

    public override void OnPause()
    {
        canvasGroup.blocksRaycasts = false;
    }

    public override void OnResume()
    {
        canvasGroup.blocksRaycasts = true;
    }

    public override void OnExit()
    {
    }

    private void OnTaskButtonClick()
    {
        UIPanelManager.Instance.PushPanel(UIPanelType.Task);
    }
    private void OnKnapsackButtonClick()
    {
        UIPanelManager.Instance.PushPanel(UIPanelType.Knapsack);
    }
    private void OnSkillButtonClick()
    {
        UIPanelManager.Instance.PushPanel(UIPanelType.Skill);
    }
    private void OnShopButtonClick()
    {
        UIPanelManager.Instance.PushPanel(UIPanelType.Shop);
    }
    private void OnSystemButtonClick()
    {
        UIPanelManager.Instance.PushPanel(UIPanelType.System);
    }
}

---

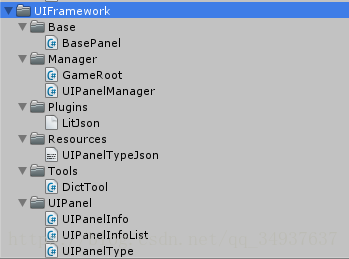

UI框架（完结）

---

【BasePanel（基类）：所有面板继承自BasePanel】
定义了四个事件：
OnEnter：面板进入时调用
OnPause：面板停止时调用（鼠标与面板的交互停止）
OnResume：面板恢复使用时调用（鼠标与面板的交互恢复）
OnExit：面板退出时调用

using UnityEngine;

public abstract class BasePanel : MonoBehaviour
{
    public abstract void OnEnter();
    public abstract void OnPause();
    public abstract void OnResume();
    public abstract void OnExit();

}

【GameRoot】
实例化游戏中的主面板

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using System;

public class GameRoot : MonoBehaviour {
    void Start () {
        UIPanelManager panelManager = UIPanelManager.Instance;
        panelManager.PushPanel(UIPanelType.MainMenu);
    }
}

【UIPanelManager（框架的核心，单例）】
进行解析面板信息json文件，实例化面板Prefab，面板的入栈和出栈等等一系列操作

using System.Collections.Generic;
using System.Collections;
using System;
using UnityEngine;
using LitJson;
public class UIPanelManager
{
    private static UIPanelManager _instance;
    private Transform canvasTransform;
    private Transform CanvasTransform
    {
        get
        {
            if (canvasTransform == null)
            {
                canvasTransform = GameObject.Find("Canvas").transform;
            }
            return canvasTransform;
        }
    }
    public static UIPanelManager Instance
    {
        get
        {
            if (_instance == null)
            {
                _instance = new UIPanelManager();
            }

            return _instance;
        }
    }

    private Dictionary<string, string> panelPathDict;
    private Dictionary<string, BasePanel> panelDict;
    private Stack<BasePanel> panelStack;

    private UIPanelManager()
    {
        ParseUIPanelTypeJson();
    }

    public void PushPanel(string panelType)
    {
        if (panelStack == null)
        {
            panelStack = new Stack<BasePanel>();
        }

        //停止上一个界面
        if (panelStack.Count > 0)
        {
            BasePanel topPanel = panelStack.Peek();
            topPanel.OnPause();
        }

        BasePanel panel = GetPanel(panelType);
        panelStack.Push(panel);
        panel.OnEnter();
    }

    public void PopPanel()
    {
        if (panelStack == null)
        {
            panelStack = new Stack<BasePanel>();
        }
        if (panelStack.Count <= 0)
        {
            return;
        }

        //退出栈顶面板
        BasePanel topPanel = panelStack.Pop();
        topPanel.OnExit();

        //恢复上一个面板
        if (panelStack.Count > 0)
        {
            BasePanel panel = panelStack.Peek();
            panel.OnResume();
        }

    }

    private BasePanel GetPanel(string panelType)
    {

        if (panelDict == null)
        {
            panelDict = new Dictionary<string, BasePanel>();
        }

        BasePanel panel = panelDict.GetValue(panelType);

        //如果没有实例化面板，寻找路径进行实例化，并且存储到已经实例化好的字典面板中
        if (panel == null)
        {
            string path = panelPathDict.GetValue(panelType);
            GameObject panelGo = GameObject.Instantiate(Resources.Load<GameObject>(path), CanvasTransform, false);
            panel = panelGo.GetComponent<BasePanel>();
            panelDict.Add(panelType, panel);
        }
        return panel;
    }

    //解析json文件
    private void ParseUIPanelTypeJson()
    {
        panelPathDict = new Dictionary<string, string>();
        TextAsset textUIPanelType = Resources.Load<TextAsset>("UIPanelTypeJson");
        UIPanelInfoList panelInfoList = JsonMapper.ToObject<UIPanelInfoList>(textUIPanelType.text);

        foreach (UIPanelInfo panelInfo in panelInfoList.panelInfoList)
        {
            panelPathDict.Add(panelInfo.panelType, panelInfo.path);
            //Debug.Log(panelInfo.panelType + ":" + panelInfo.path);
        }
    }
}

【litjson】
json文件解析的工具

【UIPanelTypeJson（保存面板信息的json文件）】
1.此文件需要加载，保存到Resources文件下
2.保存了面板的类型（相当于名称）和面板Prefab的路径（实例化面板时要用到）
3.每添加一个面板，都要在此文件添加该面板对应的信息

{
    "panelInfoList":
    [
        {"panelType":"MainMenu","path":"UIPanel/MainMenuPanel"},
        {"panelType":"ItemMessage","path":"UIPanel/ItemMessagePanel"},
        {"panelType":"Knapsack","path":"UIPanel/KnapsackPanel"},
        {"panelType":"Shop","path":"UIPanel/ShopPanel"},
        {"panelType":"Skill","path":"UIPanel/SkillPanel"},
        {"panelType":"System","path":"UIPanel/SystemPanel"},
        {"panelType":"Task","path":"UIPanel/TaskPanel"}
    ]
}

【DictTool】
Dictionnary的拓展工具类

using System.Collections.Generic;

public static class DictTool
{
    public static Tvalue GetValue<Tkey, Tvalue>(this Dictionary<Tkey, Tvalue> dict, Tkey key)
    {
        Tvalue value = default(Tvalue);
        dict.TryGetValue(key, out value);
        return value;
    }
}

【UIPanelInfo（面板的信息类）】
包括面板的名称和面板Prefab的路径
用于和json文件进行映射

using System;
[Serializable]
public class UIPanelInfo
{
    public string panelType;
    public string path;

    public UIPanelInfo()
    {

    }
}

【UIPanelInfoList（面板信息集合类）】
用于和json文件进行映射

using System;
using System.Collections.Generic;

[Serializable]
public class UIPanelInfoList
{
    public List<UIPanelInfo> panelInfoList;

    public UIPanelInfoList() { }
}

【UIPanelType（面板的类型）】
用来记录面板的类型（名称）
每添加一个面板都要在此类里面添加对应面板的类型

public class UIPanelType {
    public const string MainMenu = "MainMenu";
    public const string Knapsack = "Knapsack";
    public const string ItemMessage = "ItemMessage";
    public const string Shop = "Shop";
    public const string Skill = "Skill";
    public const string System = "System";
    public const string Task = "Task";
}

---

（完）

---------------------
作者：cchoop
来源：CSDN
原文：https://blog.csdn.net/qq_34937637/article/details/80374387
