使用heptiolabs/eventrouter收集K8S的事件

k8s的heapster项目中止以后，

事件收集的项目，就推荐使用https://github.com/heptiolabs/eventrouter项目了。

部署文档很简单，但有两个问题要解决：

一，eventrouter的官方镜像如何拿到？

官方yaml文件里，镜像地址为：

gcr.io/heptio-images/eventrouter:latest

众所周知，这个url不***，在国内是不可能下载的。

于是，我们迂回一点操作。

1，在github上新建一个项目，里面只有一个文件,Dockerfile。内容可如下：

FROM gcr.io/heptio-images/eventrouter:latest
MAINTAINER chengang <aguncn@163.com>

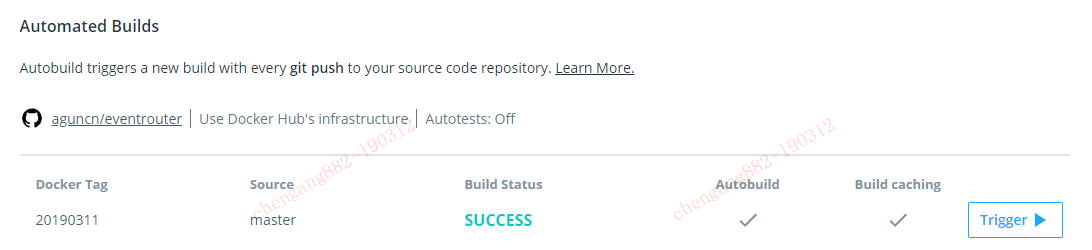

2，在dockerhub里，新建一个自动编译的仓库，项目指向github里的项目。

3，编译成功之后，docker pull命令下载即可。

二，如何将sink配置为kafka?

默认的sink为glog，是控制台输出，那如何将集件输出到kafka中的呢？

这时，就不得不吐槽一下官方文件文档了，连一个像样的配置demo都找不到。

于是，只好看看源文件中go的接口，凑合了一个最简版的json文件。

https://github.com/heptiolabs/eventrouter/blob/master/sinks/interfaces.go

case "kafka":
		viper.SetDefault("kafkaBrokers", []string{"kafka:9092"})
		viper.SetDefault("kafkaTopic", "eventrouter")
		viper.SetDefault("kafkaAsync", true)
		viper.SetDefault("kafkaRetryMax", 5)

		brokers := viper.GetStringSlice("kafkaBrokers")
		topic := viper.GetString("kafkaTopic")
		async := viper.GetBool("kakfkaAsync")
		retryMax := viper.GetInt("kafkaRetryMax")

		e, err := NewKafkaSink(brokers, topic, async, retryMax)
		if err != nil {
			panic(err.Error())
		}
		return e

　最终作成的yaml文件内容如下：# Copyright 2017 Heptio Inc.## Licensed under the Apache License, Version 2.0 (the "License");

# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: v1
kind: ServiceAccount
metadata:
  name: eventrouter
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRole
metadata:
  name: eventrouter
rules:
- apiGroups: [""]
  resources: ["events"]
  verbs: ["get", "watch", "list"]
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
  name: eventrouter
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: eventrouter
subjects:
- kind: ServiceAccount
  name: eventrouter
  namespace: kube-system
---
apiVersion: v1
data:
  config.json: |-
    {
      "sink": "kafka"　　　　"kafkaBrokers": ["x1:9092", "x2:9092"]
    }
kind: ConfigMap
metadata:
  name: eventrouter-cm
  namespace: kube-system
---
apiVersion: apps/v1beta2
kind: Deployment
metadata:
  name: eventrouter
  namespace: kube-system
  labels:
    app: eventrouter
spec:
  replicas: 1
  selector:
    matchLabels:
      app: eventrouter
  template:
    metadata:
      labels:
        app: eventrouter
        tier: control-plane-addons
    spec:
      containers:
        - name: kube-eventrouter
          image: harbor/3rd_part/eventrouter:20190311
          imagePullPolicy: IfNotPresent
          volumeMounts:
          - name: config-volume
            mountPath: /etc/eventrouter
      serviceAccount: eventrouter
      volumes:
        - name: config-volume
          configMap:
            name: eventrouter-cm

　　如果kafka后面接的elk，那么，在kibana中看到的样子如下：
