快速模式第一包: quick_outI1()
文章目录
1. 序言
openswan源码中有关隧道协商的文章已经比较久没有更新了，那么从这篇开始再重新回到更新流程上。这中间停了将近2个月，第一个月几乎没有更新任何博客，而第二个月主要整理翻译QAT相关的文章，接下来我将继续更新openswan源码相关的内容。初步计划按下表的顺序进行更新：
| 序号 | 内容 | 说明 |
|---|---|---|
| 1 | 快速模式三个报文流程 | 计划一周2篇文章 |
| 2 | IKEv2协商流程 | 首先还是先整理协商流程接口和基本知识点 |
| 3 | 国密标准 | 国密标准存在多个，计划以2014标准为例进行说明 |
| 4 | 野蛮模式 | 目前接触的比较少，后续再进行补充 |
| 5 |

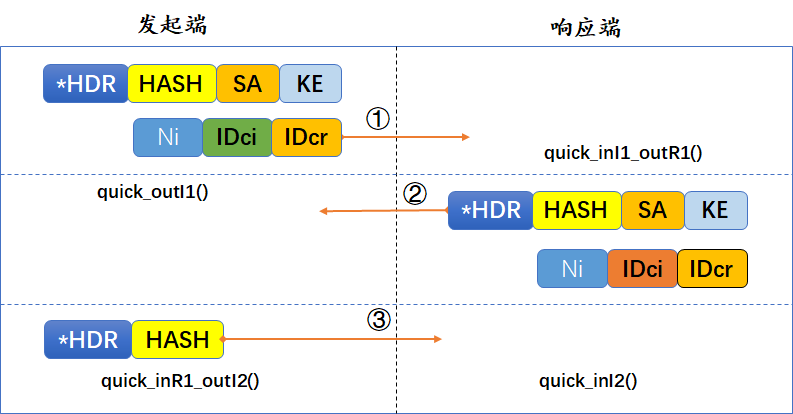

下面开始介绍IPSec 快速模式协商流程中的第①包，主要函数的入口为quick_outI1()：

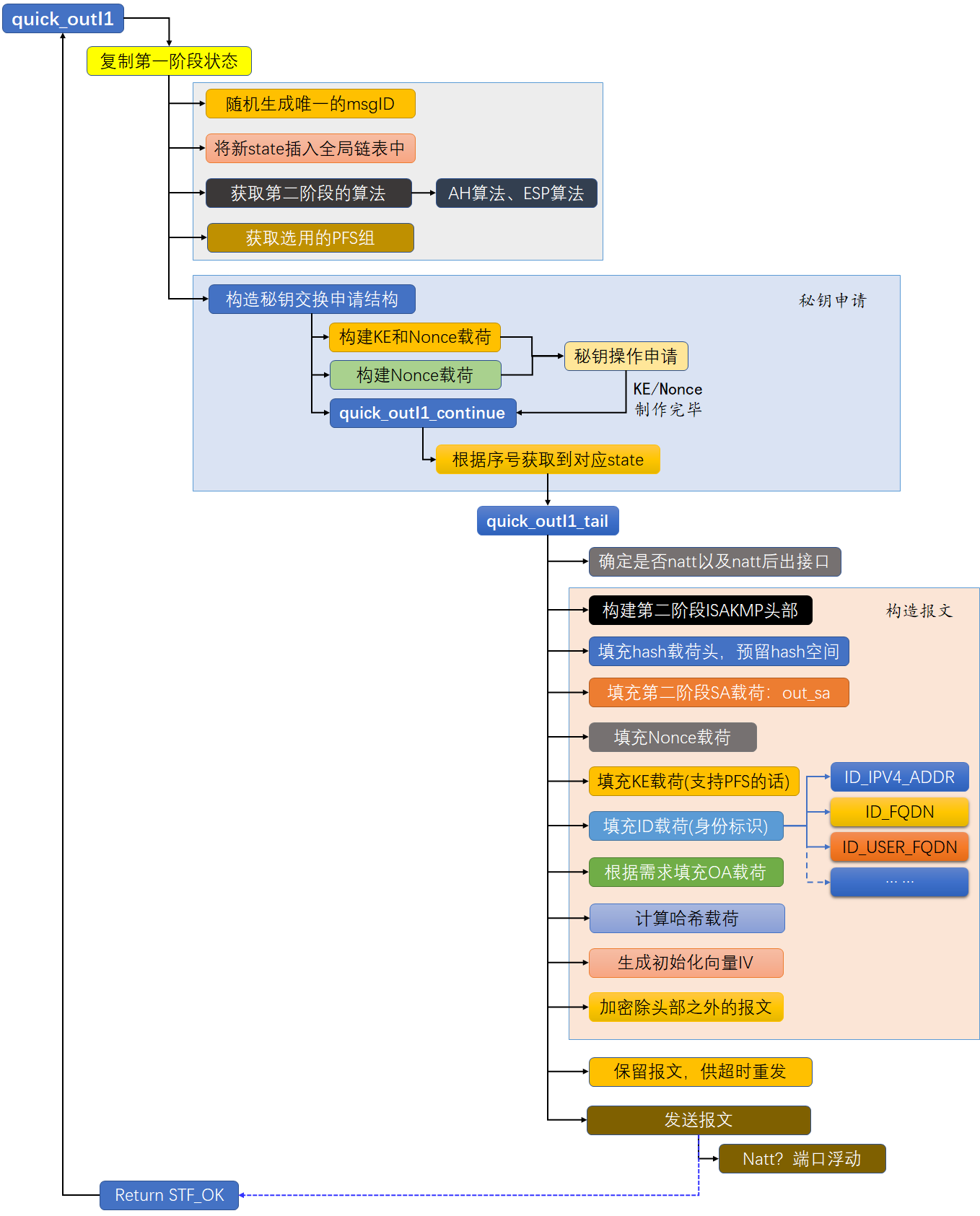

2. quick_outI1()流程图
3. quick_outI1()源码分析
quick_outI1()接口是第二阶段快速模式第一包的入口函数，它最主要的工作就是将第一阶段协商的ipsecsa状态信息转换为第二阶段的状态信息。通过duplicate_state实现状态的拷贝，然后将新的状态插入到全局的状态表中。之后就是根据隧道的配置信息(PFS, 算法信息)等做秘钥申请等准备工作。
- 复制第一阶段ipsecsa状态，并将其插入全局状态表中
- 显示第二阶段算法相关的debug信息
- 根据配置做秘钥申请
stf_status
quick_outI1(int whack_sock
, struct state *isakmp_sa
, struct connection *c
, lset_t policy
, unsigned long try
, so_serial_t replacing
, struct xfrm_user_sec_ctx_ike * uctx UNUSED
)
{
struct state *st = duplicate_state(isakmp_sa);/*复制第一阶段的状态,包括了所有的基本信息*/
struct qke_continuation *qke;
stf_status e;
const char *pfsgroupname;
char p2alg[256];
st->st_whack_sock = whack_sock;
st->st_connection = c;/*从这里可以看出每一个连接c可对应多个state结构，比如一个phase1,一个phase2.因此在隧道状态时需要特别注意*/
passert(c != NULL);
if(st->st_calculating) {
return STF_IGNORE;
}
set_cur_state(st); /* we must reset before exit */
st->st_policy = policy;
st->st_try = try;
#ifdef HAVE_LABELED_IPSEC
st->sec_ctx=NULL;
if(uctx != NULL) {
st->sec_ctx = clone_thing(*uctx, "sec ctx structure");
DBG(DBG_CONTROL, DBG_log("pending phase 2 with security context %s, %d", st->sec_ctx->sec_ctx_value, st->sec_ctx->ctx_len));
}
#endif
/*本端协议、对端协议、本端端口、对端端口*/
st->st_myuserprotoid = c->spd.this.protocol;
st->st_peeruserprotoid = c->spd.that.protocol;
st->st_myuserport = c->spd.this.port;
st->st_peeruserport = c->spd.that.port;
st->st_msgid = generate_msgid(isakmp_sa);/*随机生成唯一的msgid*/
change_state(st, STATE_QUICK_I1);/*设置当前状态为STATE_QUICK_I1*/
insert_state(st); /* needs cookies, connection, and msgid */
strcpy(p2alg, "defaults");
if(st->st_connection->alg_info_esp) {/*将alg_info_esp中的算法(第二阶段算法信息)解析转换为字符串，存储在p2alg*/
alg_info_snprint_phase2(p2alg, sizeof(p2alg)/*只是为了显示使用*/
, (struct alg_info_esp *)st->st_connection->alg_info_esp);
}
pfsgroupname="no-pfs";
/*
* See if pfs_group has been specified for this conn,
* if not, fallback to old use-same-as-P1 behaviour
*/
if (st->st_connection) {/*获取pfs组*/
st->st_pfs_group = ike_alg_pfsgroup(st->st_connection
, st->st_policy);
}
/* If PFS specified, use the same group as during Phase 1:
* since no negotiation is possible, we pick one that is
* very likely supported.
*/
if (!st->st_pfs_group)
st->st_pfs_group = policy & POLICY_PFS? isakmp_sa->st_oakley.group : NULL;
if(policy & POLICY_PFS && st->st_pfs_group) {
pfsgroupname = enum_name(&oakley_group_names, st->st_pfs_group->group);
}
{
char replacestr[32];
replacestr[0]='\0';
if(replacing != SOS_NOBODY)
snprintf(replacestr, 32, " to replace #%lu", replacing);
openswan_log("initiating Quick Mode %s%s {using isakmp#%lu msgid:%08x proposal=%s pfsgroup=%s}"
, prettypolicy(policy)
, replacestr
, isakmp_sa->st_serialno, st->st_msgid, p2alg, pfsgroupname);
}
qke = alloc_thing(struct qke_continuation , "quick_outI1 KE");
qke->replacing = replacing;
pcrc_init(&qke->qke_pcrc);
qke->qke_pcrc.pcrc_func = quick_outI1_continue;/*对于KE载荷、NONCE载荷的填充是在此回调函数中实现的*/
if(policy & POLICY_PFS) {/*生成KE载荷*/
e=build_ke(&qke->qke_pcrc, st, st->st_pfs_group, st->st_import);
} else {/*生成NONCE载荷*/
e=build_nonce(&qke->qke_pcrc, st, st->st_import);
}
reset_globals();
return e;
}
这个函数中应该注意到一点：就是一个connection(隧道)可以对应多个state结构。这有什么影响呢？
我们在查询隧道状态时，是通过查询该隧道(connection)对应的state来获取到协商的阶段，但是我们在遍历全局state表时只有全部遍历一遍才能查到最新的协商阶段，否则可能只是查询其中的一个state,这个可能不是最新的state。这样的话如果不采用效率高的数据结构存储状态，随着state增多，遍历的效率会很低。
**PFS（Perfect Forward Secrecy，完善的前向安全性）**是一种安全特性，指一个密钥被破解(例如说协商的第一阶段秘钥被破解)，并不影响第二阶段密钥的安全性，因为这些密钥间没有派生关系。此特性是通过在IKE第二阶段的协商中增加密钥交换来实现的，因此源码实现中，如果策略启动了PFS，则再次增加一个KE载荷进行秘钥交换。
4. quick_outI1_continue()源码分析
这个continue函数与之前的函数功能基本一致，通过pcrc中的状态序号获取到相应的状态，然后调用后续的函数进行报文封装操作。
static void
quick_outI1_continue(struct pluto_crypto_req_cont *pcrc
, struct pluto_crypto_req *r
, err_t ugh)
{
struct qke_continuation *qke = (struct qke_continuation *)pcrc;
struct state *const st = state_with_serialno(qke->qke_pcrc.pcrc_serialno);/*一个效率比较低的接口*/
stf_status e;
DBG(DBG_CONTROLMORE
, DBG_log("quick outI1: calculated ke+nonce, sending I1"));
if (st == NULL) {
loglog(RC_LOG_SERIOUS, "%s: Request was disconnected from state",
__FUNCTION__);
if (qke->md)
release_md(qke->md);
return;
}
st->st_calculating = FALSE;
/* XXX should check out ugh */
passert(ugh == NULL);
passert(cur_state == NULL);
passert(st != NULL);
set_cur_state(st); /* we must reset before exit */
set_suspended(st, NULL);
e = quick_outI1_tail(pcrc, r, st);
if (e == STF_INTERNAL_ERROR)
loglog(RC_LOG_SERIOUS, "%s: quick_outI1_tail() failed with STF_INTERNAL_ERROR", __FUNCTION__);
reset_globals();
}
这个有一个需要说明的地方，state_with_serialno函数需要遍历全局state哈希表，虽然O(n)的时间复杂度，但是如果state结构非常多的情况下，效率很低。因此如果应用场景中可添加的隧道比较多(成百上千条)，那么需要对该接口进行优化。
state_with_serialno()源码实现如下：
/* Find the state object with this serial number.
* This allows state object references that don't turn into dangerous
* dangling pointers: reference a state by its serial number.
* Returns NULL if there is no such state.
* If this turns out to be a significant CPU hog, it could be
* improved to use a hash table rather than sequential seartch.
*/
struct state *
state_with_serialno(so_serial_t sn)
{
if (sn >= SOS_FIRST)
{
struct state *st;
int i;
for (i = 0; i < STATE_TABLE_SIZE; i++)
for (st = statetable[i]; st != NULL; st = st->st_hashchain_next)
if (st->st_serialno == sn)
return st;
}
return NULL;
}
5. quick_outI1_tail()源码分析
quick_outI1_tail()函数的作用：构造第二阶段首包报文，他包括：
- 第二阶段的加解密算法、哈希(认证)算法、PFS等策略信息
- 构造SA建议载荷out_sa()
- 如果启动PFS，则重新进行秘钥交换，生成KE载荷
- 生成Nonce载荷
- 构造本端标识和对端标识载荷
- NAT穿越中的 OA载荷
- 计算报文的完整性(哈希算法)
- 对报文进行加密
源码如下：
static stf_status
quick_outI1_tail(struct pluto_crypto_req_cont *pcrc
, struct pluto_crypto_req *r
, struct state *st)
{
struct qke_continuation *qke = (struct qke_continuation *)pcrc;
struct state *isakmp_sa = state_with_serialno(st->st_clonedfrom);
struct connection *c = st->st_connection;
pb_stream rbody;
u_char /* set by START_HASH_PAYLOAD: */
*r_hashval, /* where in reply to jam hash value */
*r_hash_start; /* start of what is to be hashed *//*用来记录需要计算hash的起始位置*/
bool has_client = c->spd.this.has_client || c->spd.that.has_client ||
c->spd.this.protocol || c->spd.that.protocol ||
c->spd.this.port || c->spd.that.port;
if(isakmp_sa == NULL) {
/* phase1 state got deleted while cryptohelper was working */
loglog(RC_LOG_SERIOUS,"phase2 initiation failed because parent ISAKMP #%lu is gone", st->st_clonedfrom);
return STF_FATAL;
}
#ifdef NAT_TRAVERSAL
if (isakmp_sa->hidden_variables.st_nat_traversal & NAT_T_DETECTED) {/*第一阶段协商过程中发现存在NAT设备*/
/* Duplicate nat_traversal status in new state *//*将NAT信息存储在新的state上*/
st->hidden_variables.st_nat_traversal = isakmp_sa->hidden_variables.st_nat_traversal;
if (isakmp_sa->hidden_variables.st_nat_traversal & LELEM(NAT_TRAVERSAL_NAT_BHND_ME)) {/*本端位于NAT之后*/
has_client = TRUE;
}/*确定端口浮动后的出接口*/
nat_traversal_change_port_lookup(NULL, st);
}
else {
st->hidden_variables.st_nat_traversal = 0;
}
#endif
/* set up reply */
init_pbs(&reply_stream, reply_buffer, sizeof(reply_buffer), "reply packet");
/* HDR* out *//*填充第二阶段的ISAKMP的头部*/
{
struct isakmp_hdr hdr;
hdr.isa_version = ISAKMP_MAJOR_VERSION << ISA_MAJ_SHIFT | ISAKMP_MINOR_VERSION;
hdr.isa_np = ISAKMP_NEXT_HASH;
hdr.isa_xchg = ISAKMP_XCHG_QUICK;
hdr.isa_msgid = st->st_msgid;
hdr.isa_flags = ISAKMP_FLAG_ENCRYPTION;
memcpy(hdr.isa_icookie, st->st_icookie, COOKIE_SIZE);
memcpy(hdr.isa_rcookie, st->st_rcookie, COOKIE_SIZE);
if (!out_struct(&hdr, &isakmp_hdr_desc, &reply_stream, &rbody))/*填充到报文中*/
{
reset_cur_state();
return STF_INTERNAL_ERROR;
}
}
/*填充hash载荷头部，数据部分全零，并记录下要填充hash的位置，最后填充*/
/* HASH(1) -- create and note space to be filled later */
START_HASH_PAYLOAD(rbody, ISAKMP_NEXT_SA);
/* SA out */
/* Emit SA payload based on a subset of the policy bits.
* POLICY_COMPRESS is considered iff we can do IPcomp.
*/
{
lset_t pm = POLICY_ENCRYPT | POLICY_AUTHENTICATE;
if (can_do_IPcomp)
pm |= POLICY_COMPRESS;
/*填充sa载荷: ESP AH IPCom*/
if (!out_sa(&rbody
, &ipsec_sadb[(st->st_policy & pm) >> POLICY_IPSEC_SHIFT]
, st, FALSE, FALSE, ISAKMP_NEXT_NONCE))
{
reset_cur_state();
return STF_INTERNAL_ERROR;
}
}
{
int np;
if(st->st_policy & POLICY_PFS) {/*如果使用PFS,则需要再次DH协商*/
np = ISAKMP_NEXT_KE;
} else {
if(has_client) {
np = ISAKMP_NEXT_ID;
} else {
np = ISAKMP_NEXT_NONE;
}
}
/* Ni out *//*填充Nonce载荷，并将其存储在st_ni中*/
if (!ship_nonce(&st->st_ni, r, &rbody
, np
, "Ni"))
{
reset_cur_state();
return STF_INTERNAL_ERROR;
}
}
/* [ KE ] out (for PFS) *//*填充KE载荷，并将其存储在st_gi*/
if (st->st_pfs_group != NULL)
{
if (!ship_KE(st, r, &st->st_gi
, &rbody
, has_client? ISAKMP_NEXT_ID : ISAKMP_NEXT_NONE))
{
reset_cur_state();
return STF_INTERNAL_ERROR;
}
}
/* [ IDci, IDcr ] out */
if (has_client)/*填充的子网ID*/
{
/* IDci (we are initiator), then IDcr (peer is responder) */
if (!emit_subnet_id(&c->spd.this/*本端身份标识*/
, ISAKMP_NEXT_ID
, st->st_localaddr
, st->st_myuserprotoid
, st->st_myuserport, &rbody)
|| !emit_subnet_id(&c->spd.that/*对端身份标识*/
, ISAKMP_NEXT_NONE
, st->st_remoteaddr
, st->st_peeruserprotoid
, st->st_peeruserport, &rbody))
{
reset_cur_state();
return STF_INTERNAL_ERROR;
}
}
#ifdef NAT_TRAVERSAL
if ((st->hidden_variables.st_nat_traversal & NAT_T_WITH_NATOA)
&& (!(st->st_policy & POLICY_TUNNEL))/*只有传输模式才需要OA载荷????*/
&& (st->hidden_variables.st_nat_traversal & LELEM(NAT_TRAVERSAL_NAT_BHND_ME))) {
/** Send NAT-OA if our address is NATed *//*填充OA载荷，这里需要修改上一个载荷的NP*/
if (!nat_traversal_add_natoa(ISAKMP_NEXT_NONE, &rbody, st, TRUE /* initiator */)) {
reset_cur_state();
return STF_INTERNAL_ERROR;
}
}
#endif
#ifdef TPM
{
pb_stream *pbs = &rbody;
size_t enc_len = pbs_offset(pbs) - sizeof(struct isakmp_hdr);
TCLCALLOUT_crypt("preHash",st,pbs,sizeof(struct isakmp_hdr),enc_len);
r_hashval = tpm_relocateHash(pbs);
}
#endif
/* finish computing HASH(1), inserting it in output *//*计算整个载荷的哈希值*/
(void) quick_mode_hash12(r_hashval, r_hash_start, rbody.cur
, st, &st->st_msgid, FALSE);
/* encrypt message, except for fixed part of header */
/*设置第二阶段的IV值*/
init_phase2_iv(isakmp_sa, &st->st_msgid);
st->st_new_iv_len = isakmp_sa->st_new_iv_len;
set_new_iv(st, isakmp_sa->st_new_iv);
if (!encrypt_message(&rbody, st))/*加密除报文头部以外的所有载荷*/
{
reset_cur_state();
return STF_INTERNAL_ERROR;
}
/* save packet, now that we know its size 保留数据包，超时重传会使用到*/
clonetochunk(st->st_tpacket, reply_stream.start, pbs_offset(&reply_stream)
, "reply packet from quick_outI1");
/* send the packet */
/*发送报文，如果使用了NAT-T,则会添加Non-ESP的封装*/
send_packet(st, "quick_outI1", TRUE);
delete_event(st);/*设置超时重传事件*/
event_schedule(EVENT_RETRANSMIT, EVENT_RETRANSMIT_DELAY_0, st);
if (qke->replacing == SOS_NOBODY)
whack_log(RC_NEW_STATE + STATE_QUICK_I1
, "%s: initiate"
, enum_name(&state_names, st->st_state));
else
whack_log(RC_NEW_STATE + STATE_QUICK_I1
, "%s: initiate to replace #%lu"
, enum_name(&state_names, st->st_state)
, qke->replacing);
return STF_OK;
}
下面对quick_outI1_tail()中的几个重要函数做个简单说明：
5.1 out_sa()
这个函数在第一阶段的前两个报文中使用过，当时使用的第一阶段的SA载荷，现在使用第二阶段的SA载荷；out_sa同时实现了第一阶段和第二阶段SA载荷封装的功能，它通过bool oakley_mode参数来确定使用第一阶段还是第二阶段的封装流程。如果说out_struct等封装接口已经比较熟的话，那么这个函数可能会比较容易，否则基本流程看起来还是有点吃力。这里只简单说明out_struct各个参数的作用：
/****************************************************************
将struct_ptr按照sd的描述方式拷贝到outs中。同时如果obj_pbs存在，
则使obj_pbs指向outs数据部分，并更新obj_pbs的cur指针到新填充的位置，
然后将outs的cur设置到最大，其他函数不得再操作outs,除非使用close_output_pbs更新才行
****************************************************************/
bool
out_struct(const void *struct_ptr, struct_desc *sd, pb_stream *outs, pb_stream *obj_pbs)
openswan源码在对齐上做的不敢恭维，而代码是不忍卒读(看不懂)。
bool
out_sa(pb_stream *outs
, struct db_sa *sadb
, struct state *st
, bool oakley_mode
, bool aggressive_mode UNUSED
, u_int8_t np)
{
pb_stream sa_pbs;
unsigned int pcn;
bool ret = FALSE;
bool ah_spi_generated = FALSE
, esp_spi_generated = FALSE
, ipcomp_cpi_generated = FALSE;
struct db_sa *revised_sadb;
if(oakley_mode) {
/* Aggr-Mode - Max transforms == 2 - Multiple transforms, 1 DH group */
/*根据配置的秘钥算法信息重新生成一个sadb信息*/
/*传入的sadb应该为固定的秘钥算法信息，因此需要根据策略来重新生成一个新的sadb*/
revised_sadb = oakley_alg_makedb(st->st_connection->alg_info_ike/*第一阶段算法*/
, sadb
, aggressive_mode ? 2 : -1);
} else {/*根据配置生成第二阶段的算法信息*/
revised_sad = kernel_alg_makedb(st->st_connection->policy
, st->st_connection->alg_info_esp/*第二阶段算法*/
, TRUE);
/*IPComp代码略*/
}
/* more sanity */
if(revised_sadb != NULL) {
sadb = revised_sadb;
}
/* SA header out */
{/*添加SA头部*/
/* 1 2 3
* 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
* +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
* ! Next Payload ! RESERVED ! Payload Length !
* +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
* ! Domain of Interpretation (DOI) !
* +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
* ! !
* ~ Situation ~
* ! !
* +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
*/
struct isakmp_sa sa;
sa.isasa_np = np;
st->st_doi = sa.isasa_doi = ISAKMP_DOI_IPSEC; /* all we know */
if (!out_struct(&sa, &isakmp_sa_desc, outs, &sa_pbs))
return_on(ret, FALSE);
}
/* within SA: situation out *//*填充上图中的Situation字段*/
st->st_situation = SIT_IDENTITY_ONLY;
if (!out_struct(&st->st_situation, &ipsec_sit_desc, &sa_pbs, NULL))
return_on(ret, FALSE);
/* within SA: Proposal Payloads 建议载荷
*
* Multiple Proposals with the same number are simultaneous
* (conjuncts) and must deal with different protocols (AH or ESP).
* Proposals with different numbers are alternatives (disjuncts),
* in preference order.
* Proposal numbers must be monotonic.
* See RFC 2408 "ISAKMP" 4.2
*/
for (pcn = 0; pcn < sadb->prop_conj_cnt; pcn++)
{
struct db_prop_conj *pc;
unsigned int pn;
int valid_prop_cnt;
pc = &sadb->prop_conjs[pcn];/*遍历建议载荷*/
valid_prop_cnt = pc->prop_cnt;
DBG(DBG_EMITTING,
DBG_log("out_sa pcn: %d has %d valid proposals",
pcn, valid_prop_cnt));
for (pn = 0; pn < pc->prop_cnt; pn++)/*遍历建议载荷*/
{
struct db_prop *p;
pb_stream proposal_pbs;
struct isakmp_proposal proposal;
struct_desc *trans_desc;
struct_desc *attr_desc;
enum_names **attr_val_descs;
unsigned int tn;
bool tunnel_mode;
/*
* set the tunnel_mode bit on the last proposal only, and
* only if we are trying to negotiate tunnel mode in the first
* place.
*/
tunnel_mode = (valid_prop_cnt == 1)
&& (st->st_policy & POLICY_TUNNEL);
/*
* pick the part of the proposal we are trying to work on
*/
/* 1 2 3
* 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
* +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
* ! Next Payload ! RESERVED ! Payload Length !
* +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
* ! Proposal # ! Protocol-Id ! SPI Size !# of Transforms!
* +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
* ! SPI (variable) !
* +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
*/
p = &pc->props[pn];
proposal.isap_proposal = pcn;
proposal.isap_protoid = p->protoid;
proposal.isap_spisize = oakley_mode ? 0
: p->protoid == PROTO_IPCOMP ? IPCOMP_CPI_SIZE
: IPSEC_DOI_SPI_SIZE;
/* but, skip things if the transform count is zero */
if(p->trans_cnt == 0) continue;
/* Proposal header */
if(--valid_prop_cnt > 0) {
proposal.isap_np = ISAKMP_NEXT_P;
} else {
proposal.isap_np = ISAKMP_NEXT_NONE;
}
proposal.isap_notrans = p->trans_cnt;/*变换载荷的个数*/
if (!out_struct(&proposal, &isakmp_proposal_desc
, &sa_pbs, &proposal_pbs))
return_on(ret, FALSE);
/* Per-protocols stuff:
* Set trans_desc.
* Set attr_desc.
* Set attr_val_descs.
* If not oakley_mode, emit SPI.
* We allocate SPIs on demand.
* All ESPs in an SA will share a single SPI.
* All AHs in an SAwill share a single SPI.
* AHs' SPI will be distinct from ESPs'.
* This latter is needed because KLIPS doesn't
* use the protocol when looking up a (dest, protocol, spi).
* ??? If multiple ESPs are composed, how should their SPIs
* be allocated?
*/
{
struct ipsec_proto_info *pi = NULL;
int proto = 0;
bool *spi_generated;
spi_generated = NULL;
switch (p->protoid)
{
case PROTO_ISAKMP:
passert(oakley_mode);
trans_desc = &isakmp_isakmp_transform_desc;
attr_desc = &isakmp_oakley_attribute_desc;
attr_val_descs = oakley_attr_val_descs;
/* no SPI needed */
break;
/*第二阶段时，在kernel_alg_db_new中根据策略配置选择采用的封装方式*/
case PROTO_IPSEC_AH:
passert(!oakley_mode);
trans_desc = &isakmp_ah_transform_desc;
attr_desc = &isakmp_ipsec_attribute_desc;
attr_val_descs = ipsec_attr_val_descs;
pi = &st->st_ah;
spi_generated = &ah_spi_generated;
proto = IPPROTO_AH;
break;
case PROTO_IPSEC_ESP:
passert(!oakley_mode);
trans_desc = &isakmp_esp_transform_desc;
attr_desc = &isakmp_ipsec_attribute_desc;
attr_val_descs = ipsec_attr_val_descs;
pi = &st->st_esp;
spi_generated = &esp_spi_generated;
proto = IPPROTO_ESP;
break;
case PROTO_IPCOMP:
passert(!oakley_mode);
trans_desc = &isakmp_ipcomp_transform_desc;
attr_desc = &isakmp_ipsec_attribute_desc;
attr_val_descs = ipsec_attr_val_descs;
/* a CPI isn't quite the same as an SPI
* so we use specialized code to emit it.
*/
if (!ipcomp_cpi_generated)
{
st->st_ipcomp.our_spi = get_my_cpi(st, tunnel_mode);
if (st->st_ipcomp.our_spi == 0)
return_on(ret, FALSE); /* problem generating CPI */
ipcomp_cpi_generated = TRUE;
}
/* CPI is stored in network low order end of an
* ipsec_spi_t. So we start a couple of bytes in.
*/
if (!out_raw((u_char *)&st->st_ipcomp.our_spi
+ IPSEC_DOI_SPI_SIZE - IPCOMP_CPI_SIZE
, IPCOMP_CPI_SIZE
, &proposal_pbs, "CPI"))
return_on(ret, FALSE);
break;
default:
bad_case(p->protoid);
}
if (pi != NULL)
{
if (spi_generated != NULL && !*spi_generated)
{
if (!get_ipsec_spi(pi
, proto
, st
, tunnel_mode)) {
return FALSE;
}
*spi_generated = TRUE;
}
if (!out_raw((u_char *)&pi->our_spi, IPSEC_DOI_SPI_SIZE
, &proposal_pbs, "SPI"))
return_on(ret, FALSE);
}
}
/* 填充变换载荷 within proposal: Transform Payloads */
for (tn = 0; tn != p->trans_cnt; tn++)
{
struct db_trans *t = &p->trans[tn];
pb_stream trans_pbs;
struct isakmp_transform trans;
unsigned int an;
trans.isat_np = (tn == p->trans_cnt - 1)
? ISAKMP_NEXT_NONE : ISAKMP_NEXT_T;
trans.isat_transnum = tn;
trans.isat_transid = t->transid;
if (!out_struct(&trans, trans_desc, &proposal_pbs, &trans_pbs))
return_on(ret, FALSE);
/* Within tranform: Attributes. */
/* For Phase 2 / Quick Mode, GROUP_DESCRIPTION is
* automatically generated because it must be the same
* in every transform. Except IPCOMP.
*/
if (p->protoid != PROTO_IPCOMP
&& st->st_pfs_group != NULL)/*添加PFS组属性信息*/
{
passert(!oakley_mode);
passert(st->st_pfs_group != &unset_group);
out_attr(GROUP_DESCRIPTION, st->st_pfs_group->group
, attr_desc, attr_val_descs
, &trans_pbs);
}
/* automatically generate duration
* and, for Phase 2 / Quick Mode, encapsulation.
*/
if (oakley_mode)/*第一阶段*/
{
out_attr(OAKLEY_LIFE_TYPE, OAKLEY_LIFE_SECONDS
, attr_desc, attr_val_descs
, &trans_pbs);
out_attr(OAKLEY_LIFE_DURATION
, st->st_connection->sa_ike_life_seconds
, attr_desc, attr_val_descs
, &trans_pbs);
}
else/*第二阶段*/
{
/* RFC 2407 (IPSEC DOI) 4.5 specifies that
* the default is "unspecified (host-dependent)".
* This makes little sense, so we always specify it.
*
* Unlike other IPSEC transforms, IPCOMP defaults
* to Transport Mode, so we can exploit the default
* (draft-shacham-ippcp-rfc2393bis-05.txt 4.1).
*/
if (p->protoid != PROTO_IPCOMP
|| st->st_policy & POLICY_TUNNEL)
{
/*隧道模式? 传输模式*/
out_attr(ENCAPSULATION_MODE
#ifdef NAT_TRAVERSAL
#ifdef I_KNOW_TRANSPORT_MODE_HAS_SECURITY_CONCERN_BUT_I_WANT_IT
, NAT_T_ENCAPSULATION_MODE(st,st->st_policy)
#else
/* If NAT-T is detected, use UDP_TUNNEL as long as Transport
* Mode has security concerns.
*
* User has been informed of that
*/
, NAT_T_ENCAPSULATION_MODE(st,POLICY_TUNNEL)
#endif
#else /* ! NAT_TRAVERSAL */
, st->st_policy & POLICY_TUNNEL
? ENCAPSULATION_MODE_TUNNEL : ENCAPSULATION_MODE_TRANSPORT
#endif
, attr_desc, attr_val_descs
, &trans_pbs);
}
out_attr(SA_LIFE_TYPE, SA_LIFE_TYPE_SECONDS /*单位:秒*/
, attr_desc, attr_val_descs
, &trans_pbs);
out_attr(SA_LIFE_DURATION
, st->st_connection->sa_ipsec_life_seconds /*生存时间从连接上获取*/
, attr_desc, attr_val_descs
, &trans_pbs);
}
/* spit out attributes from table */
for (an = 0; an != t->attr_cnt; an++)
{
struct db_attr *a = &t->attrs[an];
if(oakley_mode) {
out_attr(a->type.oakley, a->val
, attr_desc, attr_val_descs
, &trans_pbs);
} else {
out_attr(a->type.ipsec, a->val , attr_desc, attr_val_descs , &trans_pbs);
}
}
close_output_pbs(&trans_pbs);
}
close_output_pbs(&proposal_pbs);
}
/* end of a conjunction of proposals */
}
close_output_pbs(&sa_pbs);
ret = TRUE;
return_out:
#if defined(KERNEL_ALG) || defined(IKE_ALG)
if (revised_sadb)
free_sa(revised_sadb);
#endif
return ret;
}
一般而言，比较关心我们配置的参数在哪里生效？ 例如加密算法、认证算法、隧道模式or传输模式都是在out_sa()中通过属性载荷封装在报文中的。下图为属性载荷结构：
属性类型的最高比特位AF指定数据为定长还是变长，如果为0表示定长；如果为1表示变长。
具体属性类型有以下几种（全是定长类型）：
| 属性类型 | 属性类型取值 | 属性值说明 |
|---|---|---|
| SA生存周期 | 1 | 0: 保留 1:秒 2:千字节 |
| SA生存期 | 2 | 0: 保留 1:秒 2:千字节 |
| 组描述 | 3 | 略 |
| 封装模式 | 4 | 0：保留 1：隧道模式 2：传输模式 |
| 认证算法 | 5 | 0：RESERVED 1：HMAC-MD5 2:HMAC-SHA … |
| 密钥长度 | 6 | 略 |
| 密钥轮数 | 7 | 略 |
| 压缩字典长度 | 8 | 略 |
| 私有压缩算法 | 9 | 略 |
注：加密算法不适用属性载荷进行封装。
5.2 emit_subnet_id()
第二阶段除了协商加解密算法信息，还会对双方的保护子网进行匹配。而保护子网是通过ID载荷来传输的。在第一阶段中使用build_id_payload()接口将我们在配置隧道的“身份标识”发送对方以供双方认证，第二阶段使用emit_subnet_id()来协商两端的保护子网信息。
每一条隧道有本端和对端两个节点，这两个节点都是用struct end结构描述，而两端的保护子网使用struct end中的ip_subnet client;描述，ip_subnet结构如下：
typedef struct {
ip_address addr;
int maskbits;
} ip_subnet;
/* Initiate quick mode.
* --> HDR*, HASH(1), SA, Nr [, KE ] [, IDci, IDcr ]
* (see RFC 2409 "IKE" 5.5)
* Note: this is not called from demux.c
*/
/*填充的是隧道端口IP还是子网的信息?
*保护子网是如何协商的???
*/
static bool
emit_subnet_id(struct end *e
, u_int8_t np
, ip_address endpoint
, u_int8_t protoid
, u_int16_t port
, pb_stream *outs)
{
struct isakmp_ipsec_id id;
pb_stream id_pbs;
ip_address ta;
unsigned char *tbp;
size_t tal;
const struct af_info *ai;
bool usehost = FALSE;
ip_subnet clientnet;
clientnet = e->client;
if(!e->has_client) {
/* we propose the IP address of the interface that we are using. */
/*
* we could instead propose 0.0.0.0->255.255.255.255 and let the other
* end narrow the TS, but if one wants that, it is easy to just specify
* in the configuration file: rightsubnet=0.0.0.0/0.
*
* When there is NAT involved, we may really want a tunnel to the
* address that this end point thinks it is. That works only when
* virtual_ip includes the IP involved.
*
*/
addrtosubnet(&endpoint, &clientnet);
}
ai = aftoinfo(subnettypeof(&clientnet));
passert(ai != NULL);
id.isaiid_np = np;
id.isaiid_idtype = (usehost ? ai->id_addr : ai->id_subnet);/*确定使用主机ID还是子网ID；由于usehost===FALSE,因此这里使用子网ID*/
id.isaiid_protoid = protoid;
id.isaiid_port = port;
if (!out_struct(&id, &isakmp_ipsec_identification_desc, outs, &id_pbs))
return FALSE;
networkof(&clientnet, &ta);/*获取保护子网*/
tal = addrbytesptr(&ta, &tbp);
if (!out_raw(tbp, tal, &id_pbs, "client network"))/*填充保护子网信息*/
return FALSE;
if(!usehost)
{
maskof(&clientnet, &ta);/*获取保护子网掩码*/
tal = addrbytesptr(&ta, &tbp);
if (!out_raw(tbp, tal, &id_pbs, "client mask"))/*填充保护子网掩码信息*/
return FALSE;
}
close_output_pbs(&id_pbs);
return TRUE;
}
ID载荷(标识载荷)包含以下几种类型：
| ID类型 | 描述 | 取值 |
|---|---|---|
| ID_NONE | 未使用 | 0 |
| ID_IPV4_ADDR | 单独的一个IPv4地址 | 1 |
| ID_FQDN | 全域名字符串，如topsec.com.cn | 2 |
| ID_USER_FQDN | 用户名字符串，如li_si@topsec.com.cn | 3 |
| ID_RFC822_ADDR | 同ID_USER_FQDN | ID_USER_FQDN |
| ID_IPV4_ADDR_SUBNET | IPv4类子网地址，如192.168.1.1 255.255.255.0 | 4 |
| ID_IPV6_ADDR | 单独IPv6地址 | 5 |
| ID_IPV6_ADDR_SUBNET | IPv6子网地址 | 6 |
| ID_IPV4_ADDR_RANGE | IPv4地址范围区间, 如192.168.2.3 192.168.2.200 | 7 |
| ID_IPV6_ADDR_RANGE | IPv6地址范围区间 | 8 |
| ID_DER_ASN1_DN | x.500编码格式 | 9 |
| ID_DER_ASN1_GN | x.500编码格式 | 10 |
| ID_KEY_ID | 传递特定厂商信息的字节流 | 11 |
5.3 encrypt_message()
报文的加密范围：除了ISAKMP头部之外都需要进行加密。加密使用第一阶段协商的加密秘钥（报文认证时同时也会用到认证密钥）。
/* encrypt message, sans fixed part of header
* IV is fetched from st->st_new_iv and stored into st->st_iv.
* The theory is that there will be no "backing out", so we commit to IV.
* We also close the pbs.
*/
bool
encrypt_message(pb_stream *pbs, struct state *st)
{
const struct encrypt_desc *e = st->st_oakley.encrypter;
u_int8_t *enc_start = pbs->start + sizeof(struct isakmp_hdr);/*加密的内容为ISAKMP头部之后*/
size_t enc_len = pbs_offset(pbs) - sizeof(struct isakmp_hdr);/*加密内容的长度*/
DBG_cond_dump(DBG_CRYPT | DBG_RAW, "encrypting:\n", enc_start, enc_len);
DBG_cond_dump(DBG_CRYPT | DBG_RAW, "IV:\n"
, st->st_new_iv
, st->st_new_iv_len);
DBG(DBG_CRYPT, DBG_log("unpadded size is: %u", (unsigned int)enc_len));
/* Pad up to multiple of encryption blocksize.
* See the description associated with the definition of
* struct isakmp_hdr in packet.h.
*/
{
/*确定需要填充的长度*/
size_t padding = pad_up(enc_len, e->enc_blocksize);
if (padding != 0)/*如果填充的长度不为0,则需要进行填充数据*/
{
if (!out_zero(padding, pbs, "encryption padding"))/*在输出流上进行报文填充*/
return FALSE;
enc_len += padding;
}
}
DBG(DBG_CRYPT
, DBG_log("encrypting %d using %s"
, (unsigned int)enc_len
, enum_show(&oakley_enc_names, st->st_oakley.encrypt)));
TCLCALLOUT_crypt("preEncrypt", st, pbs,sizeof(struct isakmp_hdr),enc_len);/*非TPM未做任何处理*/
/* e->crypt(TRUE, enc_start, enc_len, st); */
crypto_cbc_encrypt(e, TRUE, enc_start, enc_len, st);/*使用CBC算法进行加密:使用连接上第一阶段协商的加密算法和加密密钥信息*/
TCLCALLOUT_crypt("postEncrypt", st,pbs,sizeof(struct isakmp_hdr),enc_len);
update_iv(st);
DBG_cond_dump(DBG_CRYPT, "next IV:", st->st_iv, st->st_iv_len);
close_message(pbs);
return TRUE;
}
5.4 out_modify_previous_np()
此函数的作用在于修改前一个载荷头部中的下一个载荷字段。它在填充NAT-T相关的OA载荷时用到。基本原理是从头部开始向后遍历每一个载荷，直到找到最后一个载荷的头部(尚未填充新的载荷，因此它还是最后一个载荷)。
bool
out_modify_previous_np(u_int8_t np, pb_stream *outs)
{
u_int8_t *pl = outs->start;
size_t left = outs->cur - outs->start;
passert(left >= NSIZEOF_isakmp_hdr); /* not even room for isakmp_hdr! */
if (left == NSIZEOF_isakmp_hdr) {
/* no payloads, just the isakmp_hdr: insert np here */
passert(pl[NOFFSETOF_isa_np] == ISAKMP_NEXT_NONE ||
pl[NOFFSETOF_isa_np] == ISAKMP_NEXT_HASH);
pl[NOFFSETOF_isa_np] = np;
} else {
pl += NSIZEOF_isakmp_hdr; /* skip over isakmp_hdr */
left -= NSIZEOF_isakmp_hdr;
for (;;) {
size_t pllen;
passert(left >= NSIZEOF_isakmp_generic);
pllen = (pl[NOFFSETOF_isag_length] << 8)/*payload 一般为两个字节*/
| pl[NOFFSETOF_isag_length + 1];
passert(left >= pllen);
if (left == pllen) {/*当前载荷长度和剩余长度相同时，说明已经找到上一个载荷*/
/* found last top-level payload */
pl[NOFFSETOF_isag_np] = np;
break; /* done */
} else {
/* this payload is not the last: scan forward */
pl += pllen;
left -= pllen;
}
}
}
return TRUE;
}
6. 小结
略。
快速模式第一包: quick_outI1()的更多相关文章
- 韩顺刚-tcp报文头协议详细分析第一包数据：序号是0，发送数据的长度是0，因为没有收到对端的数据，所以确认号是0， Syn的标志位设置成1，这里没有发送的数据，只发送TCP的20个字节的头部
TCP报文段首部格式 大部分TCP报文头部都是20个字节,有的数据包要加上选项. 上面一行代表4个字节,源端口和目的端口都是2个字节. TCP协议是面向字节流的协议 TCP是一段一段分块的发送数据的 ...
- IKEv2协议协商流程: （IKE-SA-INIT 交换）第一包
文章目录 1. IKEv2 协商总体框架 2. 第一包流程图 3. openswan源码学习 3.1 ikev2parent_outI1() 3.2 ikev2parent_outI1_withsta ...
- 快速模式第二包: quick_inI1_ouR1()
文章目录 1. 序言 2. quick_inI1_outR1()流程图 3. 快速模式消息②数据包格式 4. 源码分析 4.1 quick_inI1_outR1() 4.2 quick_inI1_ou ...
- ping第一包时间过长
一.现象 公司互联网域(说白了就是可以连外网的vlan区域的主机)的几台主机在ping一个合作方提供的域名时,发现在ping 第一个包时,时间特别长,后面第2--N包开始正常.直接ping 该域名对应 ...
- openswan中ISAKMP交互过程关键函数接口
1. ISAKMP交互过程中关键函数接口 下面分别说明不同的阶段和模式下的函数接口以及对应的报文. 2. 第一阶段(Phase I)主模式函数接口 发送端 响应端 main_outI1 主模式第一包 ...
- IPsec 9个包分析（主模式+快速模式）
第一阶段:ISAKMP协商阶段 1.1 第一包 包1:发起端协商SA,使用的是UDP协议,端口号是500,上层协议是ISAKMP,该协议提供的是一个框架,里面的负载Next payload类似模块,可 ...
- 快速模式第三包：quick_inR1_outI2()
快速模式第三包:quick_inR1_outI2() 文章目录 快速模式第三包:quick_inR1_outI2() 1. 序言 2. quick_inR1_outI2()的处理流程 3. 快速模式第 ...
- mysql交互协议解析——mysql包基础数据、mysql包基本格式
mysql交互协议是开发mysql周边组件常用的协议,如JDBC,libmysql等等. 在此我们要认识到mysql交互协议其实是半双工的交互协议,至于为什么,这里就先挖个小坑,以后再填. 在探讨my ...
- NALU数据打RTP包流程详解
最近在看RTP发送H264数据的文章,感觉很乱,没有比较清晰易懂的教程,自己整理了一下各种资料,备忘! --------Part A ---- 先说说H264数据,H264在网络传输的是NALU(N ...
随机推荐
- 数据库比对工具SQL(表、字段、触发器、索引、视图、存储过程)
做一个数据库比对小工具,把SQL做一个笔记 SELECT object_id AS ID --表ID,'表' sType,Name --表名FROM sys.tablesORDER BY Name-- ...
- Salesforce Integration 概览(四) Batch Data Synchronization(批量数据的同步)
本篇参考:https://resources.docs.salesforce.com/sfdc/pdf/integration_patterns_and_practices.pdf 前两篇博客讲了一下 ...
- spring学习05（代理模式）
8.代理模式 为什么要学习代理模式,因为AOP的底层机制就是动态代理! 代理模式: 静态代理 动态代理 8.1 静态代理 静态代理角色分析 抽象角色 : 一般使用接口或者抽象类来实现 真实角色 : 被 ...
- 2021 年 iOS 应用程序开发七种最佳语言
移动应用程序现在几乎是每个在线业务的必备品.最新的 StatCounter 数据显示,多达56% 的在线连接是通过移动设备建立的,这使它们高于平板电脑和计算机.更重要的是,同一个消息来源说,其中27% ...
- 徒手打造基于Spark的数据工厂（Data Factory）：从设计到实现
在大数据处理和人工智能时代,数据工厂(Data Factory)无疑是一个非常重要的大数据处理平台.市面上也有成熟的相关产品,比如Azure Data Factory,不仅功能强大,而且依托微软的云计 ...
- S3C2440—7.存储控制器访问外设
文章目录 一.内存接口的概念 二.存储控制器(内存控制器) 2.1 什么是存储控制器? 2.2 S3C2440存储控制器介绍 2.3 存储控制器如何处理不同位宽的外设 2.4 怎么确定芯片的访问地址? ...
- WPF在圆上画出刻度线
思路 我们可以使用Ellipse先画出一个圆当背景,然后用Canvas再叠加画上刻度线,就能得到如下的效果 我们先用Ellipse画一个橙色的圆,然后将Canvas的宽度和高度绑定到Ellipse的宽 ...
- SQL 练习26
查询 1990 年出生的学生名单 --方式1 SELECT * FROM Student WHERE Sage BETWEEN '1990-01-01' AND '1990-12-31' --方式2 ...
- 【阿菜Writeup】Security Innovation Smart Contract CTF
赛题地址:https://blockchain-ctf.securityinnovation.com/#/dashboard Donation 源码解析 我们只需要用外部账户调用 withdrawDo ...
- 使用SuperSocket实现自定义协议C/S设计
一.简介: 21世纪是出于互联网+的时代,许多传统行业和硬件挂钩的产业也逐步转向了系统集成智能化,简单来说就是需要软硬件的结合.这时,软硬件通讯便是这里面最主要的技术点,我们需要做到的是让硬件能够听懂 ...
