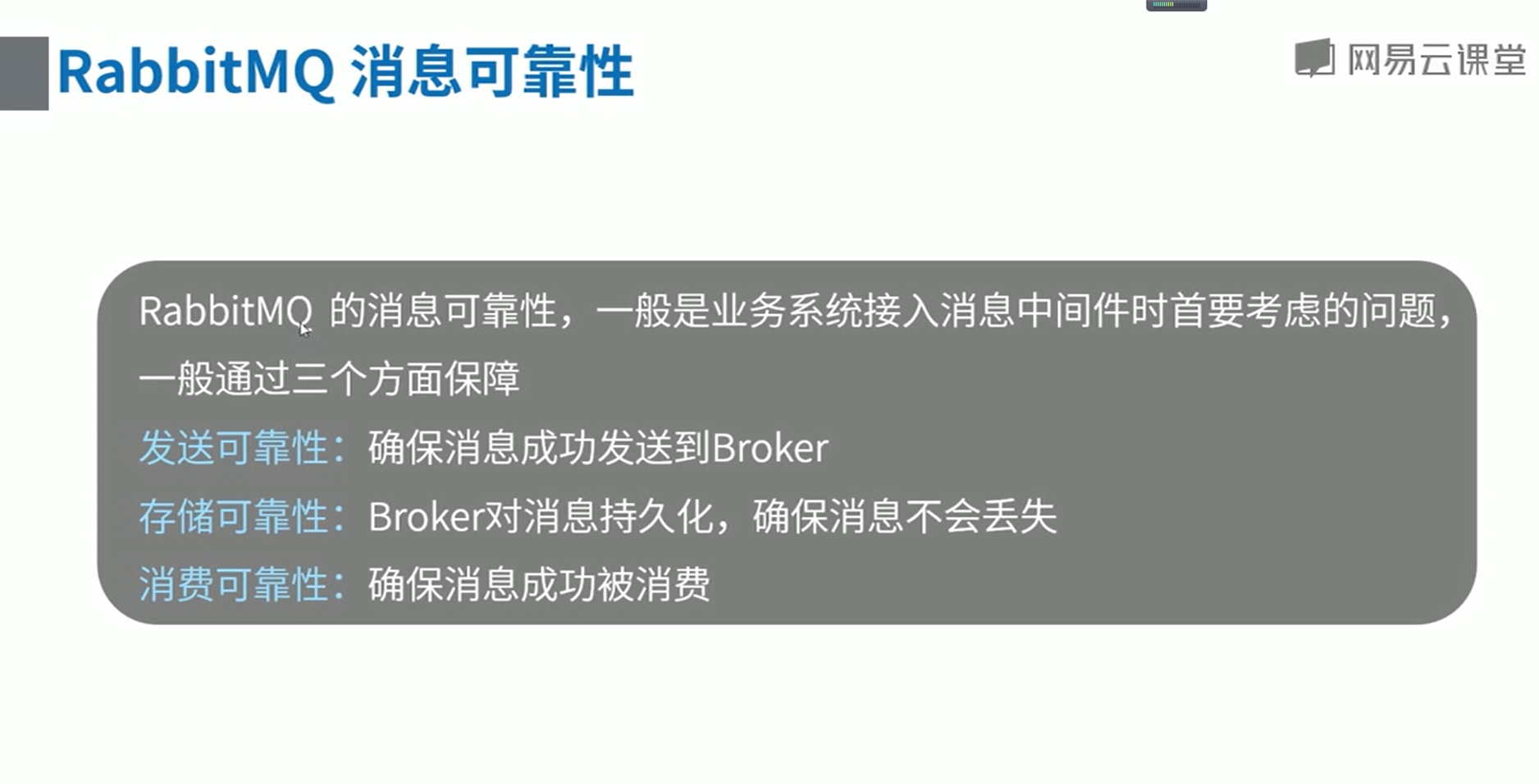

消息中间件-RabbitMQ消息可靠性和插件化机制

package com.study.rabbitmq.a132.confirm;

import com.rabbitmq.client.*;

import java.io.IOException;
import java.util.ArrayList;
import java.util.concurrent.TimeoutException;

// 可靠生产
// https://www.rabbitmq.com/confirms.html
public class Producer {

    public static void main(String[] args) {
        // 1、创建连接工厂
        ConnectionFactory factory = new ConnectionFactory();
        // 2、设置连接属性
        factory.setHost("192.168.100.242");
        factory.setUsername("admin");
        factory.setPassword("admin");

        Connection connection = null;
        Channel channel = null;

        try {
            // 3、从连接工厂获取连接
            connection = factory.newConnection("生产者");
            // 4、从链接中创建通道
            channel = connection.createChannel();

            // 进入confirm模式， 每次发送消息，rabbtiqm处理之后会返回一个对应的回执消息
            AMQP.Confirm.SelectOk selectOk = channel.confirmSelect();
            // 增加监听器
            ArrayList<String> queues = new ArrayList<>();
            channel.addConfirmListener(new ConfirmListener() {
                @Override
                public void handleAck(long deliveryTag, boolean multiple) throws IOException {
                    // deliveryTag 同一个channel中此条消息的编号 。
                    // 业务..
                    System.out.println("受理成功 " + queues.get((int) deliveryTag) + " " + multiple);
                }

                @Override
                public void handleNack(long deliveryTag, boolean multiple) throws IOException {
                    // 失败重发
                    // queues.get((int) deliveryTag)
                    System.out.println("受理失败 " + deliveryTag);
                }
            });
            // 定义fanout类型的交换器
            channel.exchangeDeclare("ps_test", "fanout");

            for (int i = 0; i < 10; i++) {
                // 消息内容
                String message = "Hello Confirm " + i;
                queues.add(message);
                // 发送消息到ps_test交换器上
                AMQP.BasicProperties basicProperties = new AMQP.BasicProperties();
                channel.basicPublish("ps_test", "", basicProperties, message.getBytes());
                System.out.println("消息 " + message + " 已发送！");
            }

            // 等待20秒
            Thread.sleep(20 * 1000L);
        } catch (Exception e) {
            e.printStackTrace();
        } finally {
            // 7、关闭通道
            if (channel != null && channel.isOpen()) {
                try {
                    channel.close();
                } catch (IOException e) {
                    e.printStackTrace();
                } catch (TimeoutException e) {
                    e.printStackTrace();
                }
            }

            // 8、关闭连接
            if (connection != null && connection.isOpen()) {
                try {
                    connection.close();
                } catch (IOException e) {
                    e.printStackTrace();
                }
            }
        }
    }
}

package com.study.rabbitmq.a132.confirm;

import com.rabbitmq.client.*;

import java.io.IOException;
import java.util.HashMap;
import java.util.Map;
import java.util.concurrent.TimeoutException;

/**
 * 消息确认机制
 */

public class Consumer {

    private static Runnable receive = new Runnable() {
        public void run() {
            // 1、创建连接工厂
            ConnectionFactory factory = new ConnectionFactory();
            // 2、设置连接属性
            factory.setHost("192.168.100.242");
            factory.setUsername("admin");
            factory.setPassword("admin");

            Connection connection = null;
            Channel channel = null;
            final String clientName = Thread.currentThread().getName();

            try {
                // 3、从连接工厂获取连接
                connection = factory.newConnection("消费者");
                // ###死信队列相关：专门用来存储 出错 出异常的数据
                channel = connection.createChannel();
                // 1、 创建一个exchange
                channel.exchangeDeclare("dlq_exchange", "fanout");
                // 2、 创建一个queue，和exchange绑定起来
                channel.queueDeclare("dlq_queue1", false, false, false, null);
                channel.queueBind("dlq_queue1", "dlq_exchange", "");
                // ######死信队列结束

                // 4、从链接中创建通道
                channel = connection.createChannel();
                // 代码定义交换器
                channel.exchangeDeclare("ps_test", "fanout");
                //  还可以定义一个临时队列，连接关闭后会自动删除，此队列是一个排他队列
                String queueName = "queue1";
                // 队列中有死信产生时，消息会转发到交换器 dlq_exchange。
                Map<String, Object> args = new HashMap<String, Object>();
                args.put("x-dead-letter-exchange", "dlq_exchange");
                channel.queueDeclare(queueName, false, false, false, args);
                // 将队列和交换器绑定
                channel.queueBind(queueName, "ps_test", "");

                // 监听队列
                Channel finalChannel = channel;
                channel.basicConsume(queueName, false, "消费者-手动回执",
                        new DefaultConsumer(finalChannel) {
                            @Override
                            public void handleDelivery(String consumerTag,
                                                       Envelope envelope,
                                                       AMQP.BasicProperties properties,
                                                       byte[] body)
                                    throws IOException {
                                try {
                                    System.out.println("收到消息: " + new String(body));
                                    // TODO 业务处理
                                    long deliveryTag = envelope.getDeliveryTag();
                                    // 模拟业务处理耗时
                                    Thread.sleep(1000L);
                                    // 正常消费
                                    // finalChannel.basicAck(deliveryTag, false);
                                    // 异常消费
                                    finalChannel.basicNack(envelope.getDeliveryTag(), false, false);
                                } catch (InterruptedException e) {
                                    // 异常消费, requeue参数 true重发，false不重发(丢弃或者移到DLQ死信队列)
                                    // finalChannel.basicNack(envelope.getDeliveryTag(), false, false);
                                    e.printStackTrace();
                                }
                            }
                        });

                System.out.println(clientName + " 开始接收消息");
                System.in.read();

            } catch (IOException e) {
                e.printStackTrace();
            } catch (TimeoutException e) {
                e.printStackTrace();
            } finally {
                // 8、关闭通道
                if (channel != null && channel.isOpen()) {
                    try {
                        channel.close();
                    } catch (IOException e) {
                        e.printStackTrace();
                    } catch (TimeoutException e) {
                        e.printStackTrace();
                    }
                }

                // 9、关闭连接
                if (connection != null && connection.isOpen()) {
                    try {
                        connection.close();
                    } catch (IOException e) {
                        e.printStackTrace();
                    }
                }
            }
        }
    };

    public static void main(String[] args) {
        new Thread(receive, "c1").start();
    }

}

nack的数据都放在死信队列

dlq_queue的垃圾队列

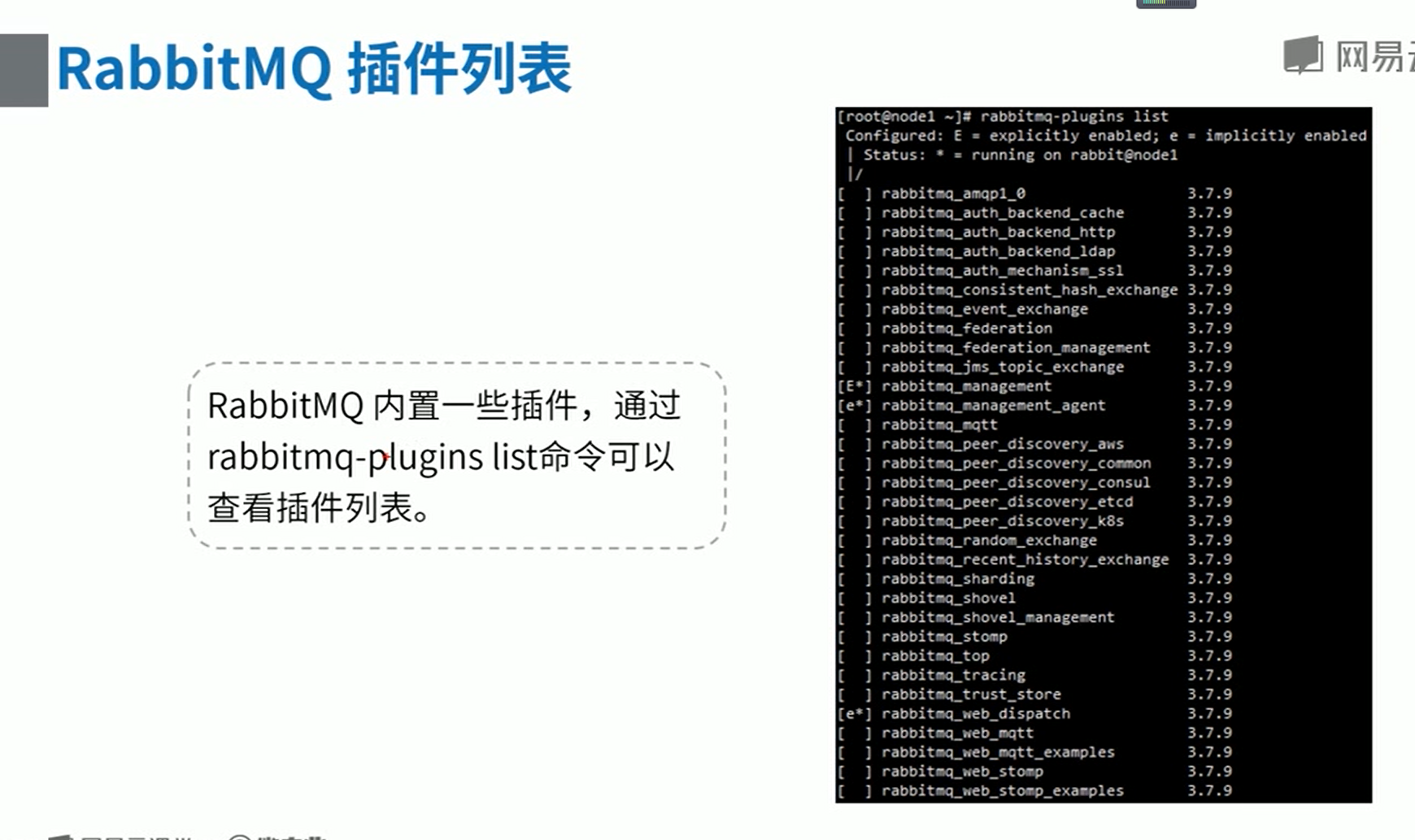

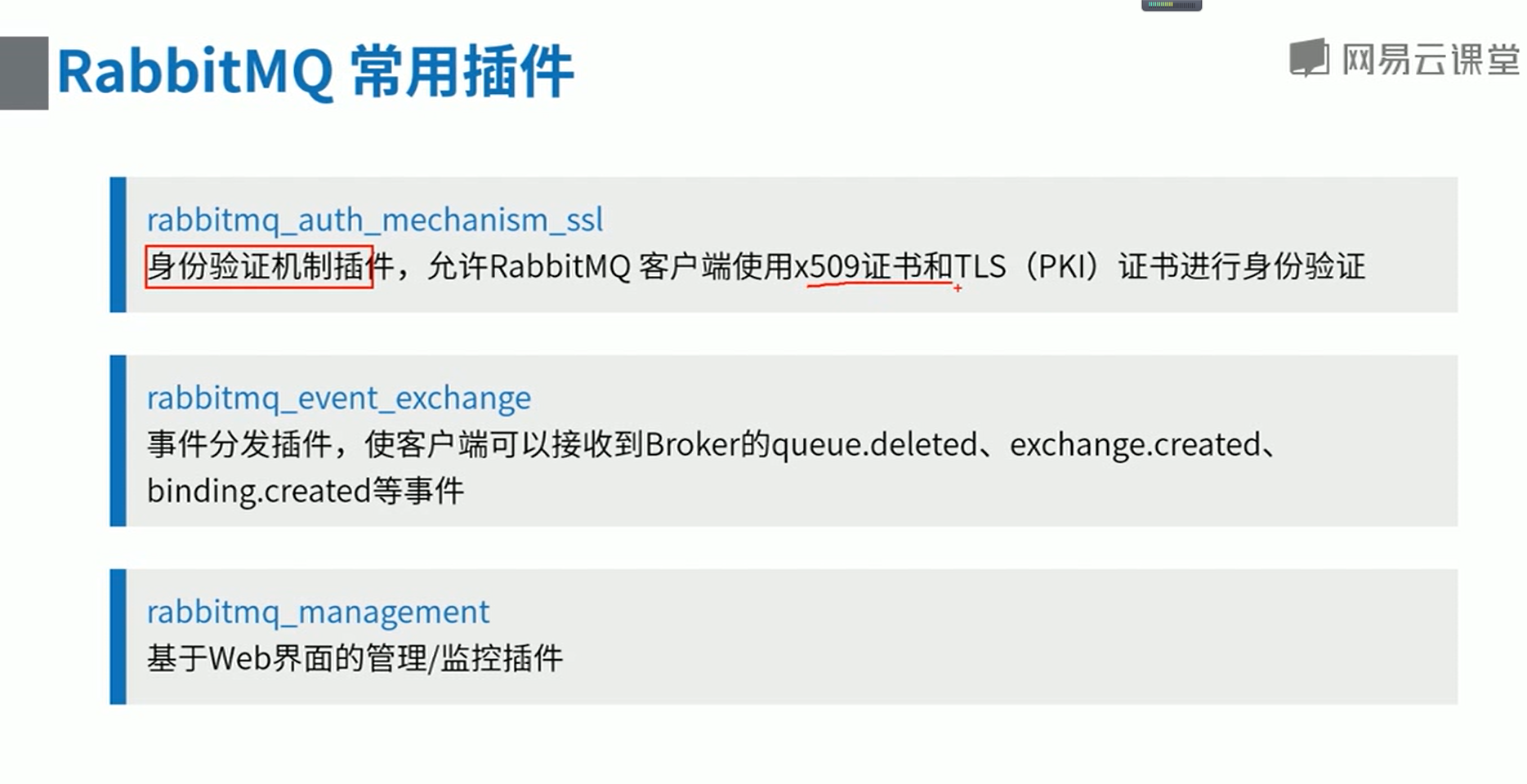

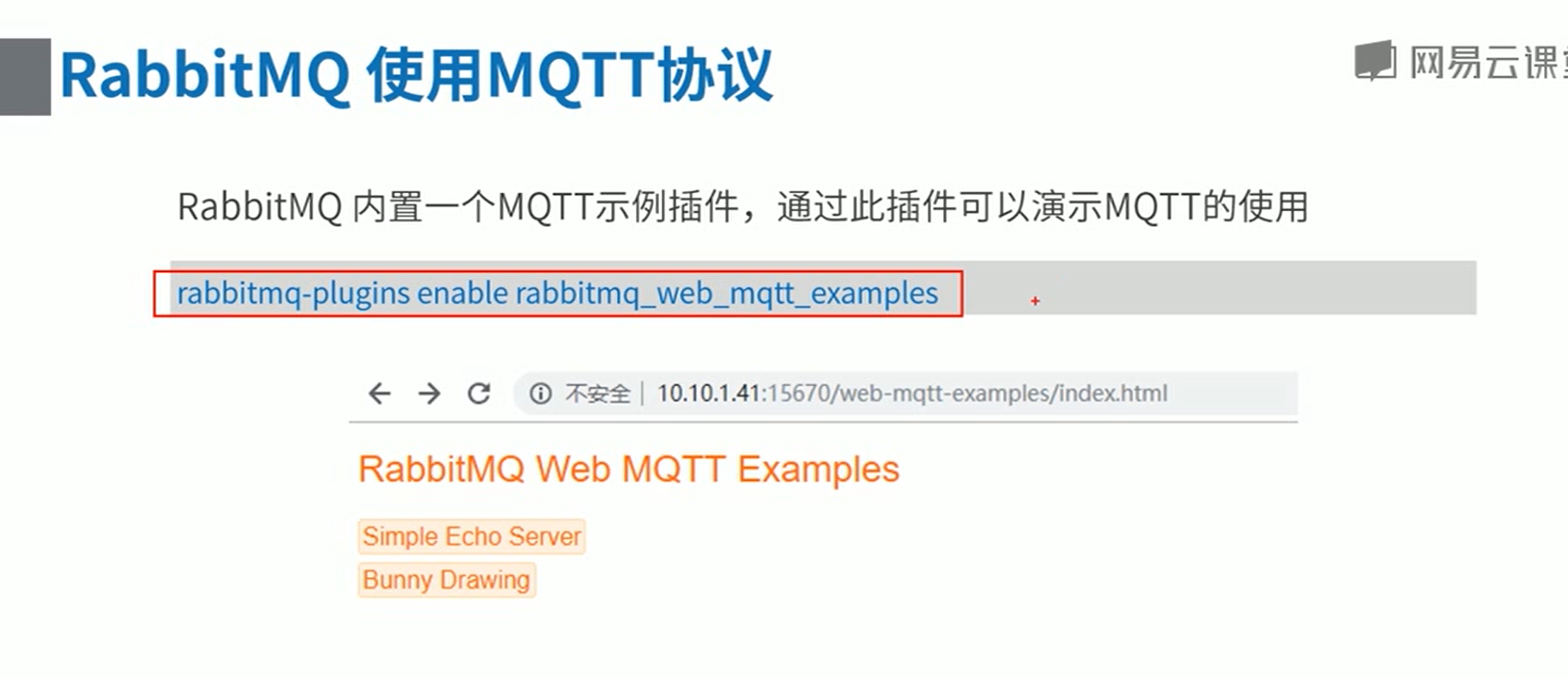

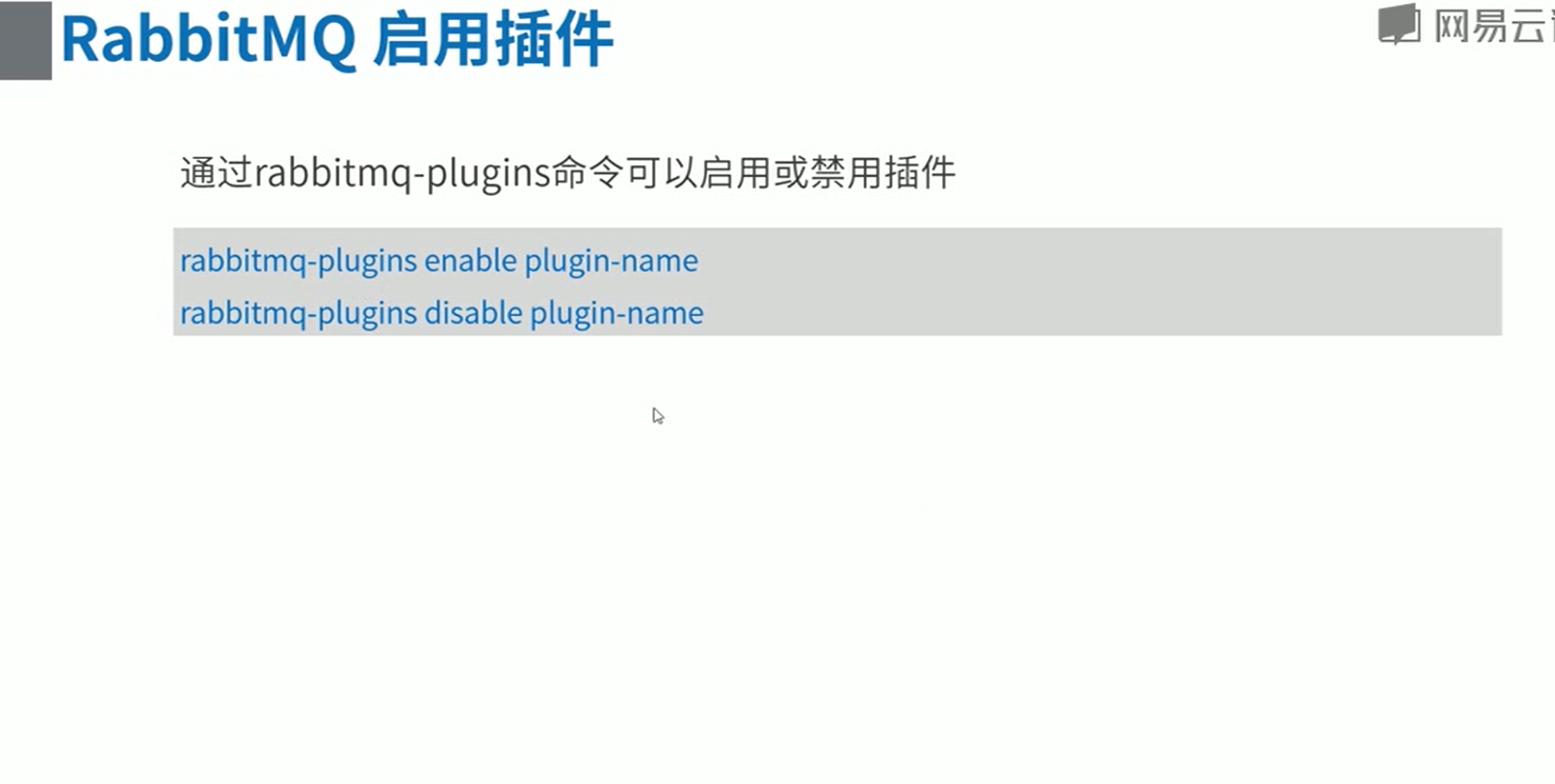

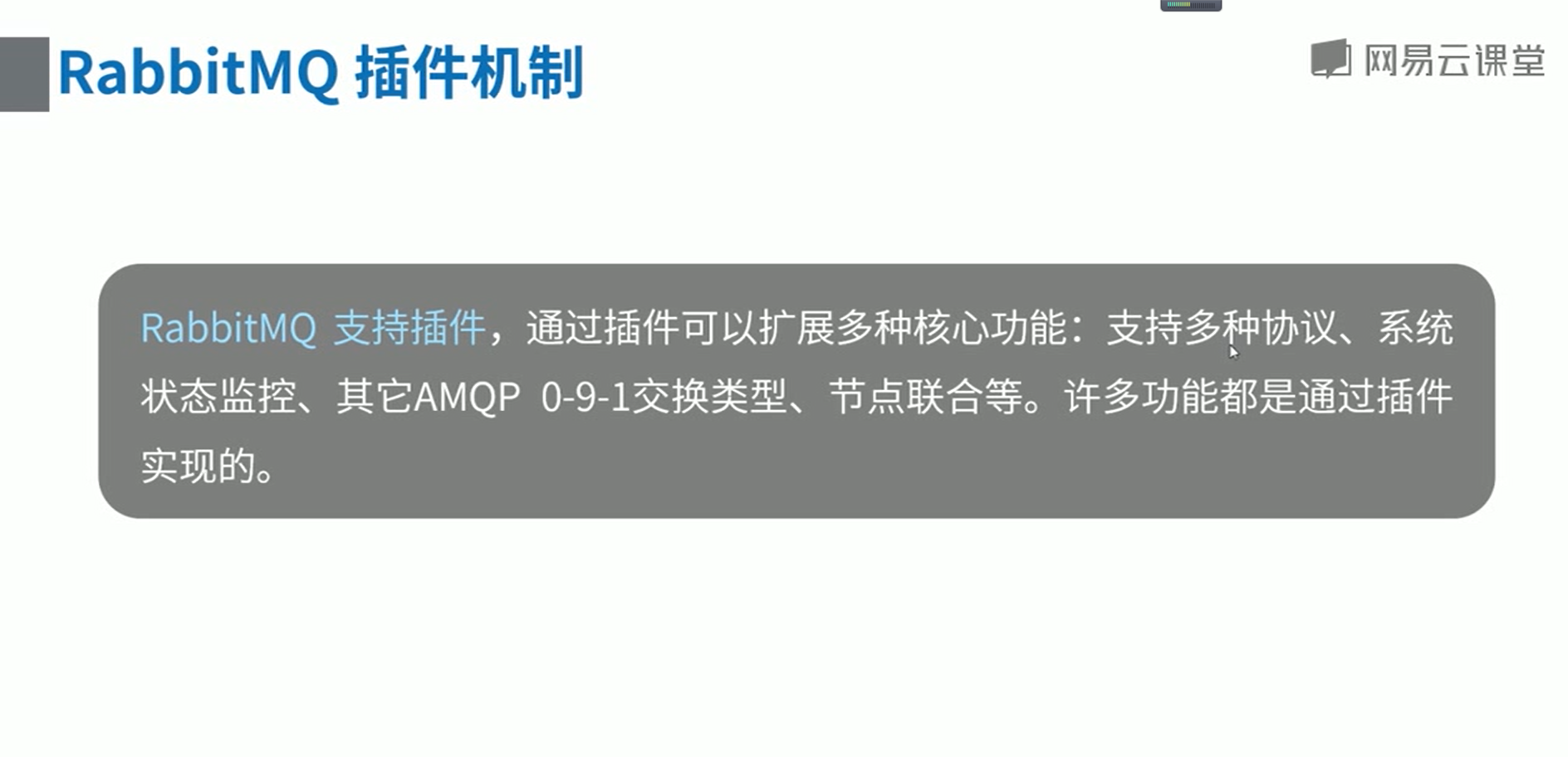

RabbitMQ插件机制
