(转)Linux系统sersync数据实时同步

Linux系统sersync数据实时同步

原文：http://blog.csdn.net/mingongge/article/details/52985259

前面介绍了以守护进程的方式传输或同步数据rsync软件，linux系统数据同步软件很多，今天来介绍下sersync数据同步软件

一：sersync介绍

sersync其实是利用inotify和rsync两种软件技术来实现数据实时同步功能的，inotify是用于监听sersync所在服务器上的文件变化，结合rsync软件来进行数据同步，将数据实时同步给客户端服务器

二：sersync工作过程

在同步主服务器上开启sersync，负责监听文件系统的变化，然后调用rsync命令把更新的文件同步到目标服务器上，主服务器上安装sersync软件，目标服务器上安装rsync服务

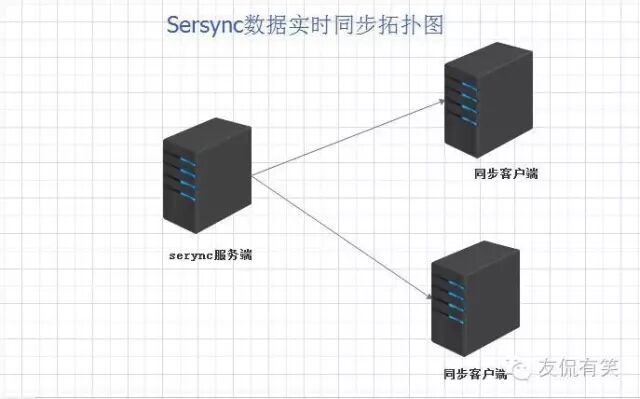

三：整体环境拓扑图

四：客户端安装配置rsync服务

[root@Client ~]# cat /etc/rsyncd.conf

cat: /etc/rsyncd.conf: No such file or directory

如果有此文件，配置前要进行备份，再进行相关配置

[root@Client etc]# vi /etc/rsyncd.conf

##rsync config  start

##created by root 2016-08-08 15:00

##rsync.conf config start

uid = rsync

gid = rsync

use chroot = no

max connetctions = 200

timeout = 100

pid file = /var/run/rsyncd.pid

lock file = /var/run/rsync.lock

log file = /var/log/rsyncd.log

[backup]

path = /backup/

ignore errors

read only = false

list = false

hosts allow = 192.168.1.0/24

hosts deny = 0.0.0.0/32

auth users = rsync_backup

secrets file = /etc/rsync.password

##rsync config  end

"rsyncd.conf" [New] 21L, 458C written

添加用户

[root@Client ~]# useradd rsync -s /sbin/nologin -M

改变目录权限

[root@Client ~]# chown -R rsync.rsync /backup

配置密码文件

[root@Client ~]# echo "rsync_backup:rsync.conf">>/etc/rsync.password

[root@Client ~]# cat /etc/rsync.password

rsync_backup:rsync.conf

改变密码文件权限

[root@Client ~]# chmod 600 /etc/rsync.password

[root@Client ~]# ls -ld /etc/rsync.password

-rw-------. 1 root root 24 Sep  9 13:06 /etc/rsync.password

格式化文件

[root@Client ~]# dos2unix /etc/rsyncd.conf

dos2unix: converting file /etc/rsyncd.conf to UNIX format ...

开启服务后台运行

[root@Client ~]# rsync --daemon

[root@Client ~]# netstat -lntup|grep rsync

tcp 0 0 0.0.0.0:873 0.0.0.0:*  LISTEN   2002/rsync

tcp 0 0 :::873 :::*       LISTEN   2002/rsync

五：主服务器上配置密码文件

[root@Master ~]# echo "rsync.conf">>/etc/rsync.password

[root@Master ~]# cat /etc/rsync.password

rsync.conf

[root@Master ~]# chmod 600 /etc/rsync.password

[root@Master ~]# ls -ld /etc/rsync.password

-rw-------. 1 root root 11 Sep  8 06:25 /etc/rsync.password

六：测试手工同步

[root@Master /]# rsync -avzP /etc/hosts rsync_backup@192.168.1.3::rsync --password-file=/etc/rsync.password

sending incremental file list

hosts

158 100%    0.00kB/s    0:00:00 (xfer#1, to-check=0/1)

sent 120 bytes  received 27 bytes  26.73 bytes/sec

total size is 158  speedup is 1.07

[root@Master /]# cat /etc/hosts

127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4

::1         localhost localhost.localdomain localhost6 localhost6.localdomain6

[root@Client ~]# cat /backup/hosts

127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4

::1         localhost localhost.localdomain localhost6 localhost6.localdomain6

经过对比两边数据一致，表明同步成功，手工同步成功之后，然后再进行后面的配置

七：安装sersync服务

首先下载好安装软件

sersync_64bit_binary_stable_final.tar.gz

[root@Master tools]# tar -zxvf sersync_64bit_binary_stable_final.tar.gz -C

/usr/local/

GNU-Linux-x86/

GNU-Linux-x86/sersync2

GNU-Linux-x86/confxml.xml

[root@Master tools]# cd /usr/local/

[root@Master local]# ls

bin  games   include  lib64    sbin   src

etc  GNU-Linux-x86  lib   libexec  share

GNU-Linux-x86就是sersync安装软件，为了方便将它改名

[root@Master local]# mv GNU-Linux-x86 sersync

为了后续方便管理，创建几个目录用于存放各类文件

[root@Master sersync]# mkdir -p conf bin logs

[root@Master sersync]# mv confxml.xml conf

[root@Master sersync]# ls

bin  conf  logs  sersync2

[root@Master sersync]# cd conf

[root@Master conf]# ls

confxml.xml

在配置配置文件之前备份

[root@Master conf]# cp confxml.xml confxml.xml.$(date +%F)

[root@Master conf]# ls

confxml.xml  confxml.xml.2016-09-08

修改配置文件内容（confxml.xml）

1、修改24-28行

<localpath watch="/opt/tongbu">

<remote ip="127.0.0.1" name="tongbu1"/>

<!--<remote ip="192.168.8.39" name="tongbu"/>-->注释内容

<!--<remote ip="192.168.8.40" name="tongbu"/>-->注释内容

</localpath>

修改后的内容为

<localpath watch="/opt/backup"> 本地数据的路径

<remote ip="192.168.1.3" name="rsync"/>远端IP与模块名称

</localpath>

<!#################################### -->注释内容

2、修改31-34行内容——认证

<commonParams params="-artuz"/>

<auth start="false" users="root" passwordfile="/etc/rsync.pas"/>

<userDefinedPort start="false" port="874"/><!-- port=874 -->

<timeout start="false" time="100"/><!-- timeout=100 -->

<ssh start="false"/>

修改后的内容为

<commonParams params="-aruz"/>

<auth start="true" users="rsync_backup"  passwordfile="/etc/rsync.password"/>

<userDefinedPort start="false" port="874"/><!-- port=874 -->

<timeout start="true" time="100"/><!-- timeout=100 -->

<ssh start="false"/>

3、修改36-37行

<failLog path="/tmp/rsync_fail_log.sh" timeToExecute="60"/><!--default

every 60mins execute once-->

修改成我们刚刚创建好的logs目录

<failLog path="/usr/local/sersync/logs/rsync_fail_log.sh" timeToExecut

e="60"/><!--default every 60mins execute once-->

修改完成后最终的配置文件如下

[root@Master conf]# cat /usr/local/sersync/conf/confxml.xml

<?xml version="1.0" encoding="ISO-8859-1"?>

<head version="2.5">

<host hostip="localhost" port="8008"></host>

<debug start="false"/>

<fileSystem xfs="false"/>

<filter start="false">

<exclude expression="(.*)\.svn"></exclude>

<exclude expression="(.*)\.gz"></exclude>

<exclude expression="^info/*"></exclude>

<exclude expression="^static/*"></exclude>

</filter>

<inotify>

<delete start="true"/>

<createFolder start="true"/>

<createFile start="false"/>

<closeWrite start="true"/>

<moveFrom start="true"/>

<moveTo start="true"/>

<attrib start="false"/>

<modify start="false"/>

</inotify>

<sersync>

<localpath watch="/opt/backup">

<remote ip="192.168.1.3" name="rsync"/>

</localpath>

<!#################################### -->

<rsync>

<commonParams params="-aruz"/>

<auth start="true" users="rsync_backup" passwordfile="/etc/rsync.password"/>

<userDefinedPort start="false" port="874"/><!-- port=874 -->

<timeout start="true" time="100"/><!-- timeout=100 -->

<ssh start="false"/>

</rsync>

<failLog path="/usr/local/sersync/logs/rsync_fail_log.sh" timeToExecute="60"/><!--default every 60mins execute once-->

<crontab start="false" schedule="600"><!--600mins-->

<crontabfilter start="false">

<exclude expression="*.php"></exclude>

<exclude expression="info/*"></exclude>

</crontabfilter>

</crontab>

<plugin start="false" name="command"/>

</sersync>

<plugin name="command">

<param prefix="/bin/sh" suffix="" ignoreError="true"/>  <!--prefix /opt/tongbu/mmm.sh suffix-->

<filter start="false">

<include expression="(.*)\.php"/>

<include expression="(.*)\.sh"/>

</filter>

</plugin>

<plugin name="socket">

<localpath watch="/opt/tongbu">

<deshost ip="192.168.138.20" port="8009"/>

</localpath>

</plugin>

<plugin name="refreshCDN">

<localpath watch="/data0/htdocs/cms.xoyo.com/site/">

<cdninfo domainname="ccms.chinacache.com" port="80" username="xxxx" passwd="xxxx"/>

<sendurl base="http://pic.xoyo.com/cms"/>

<regexurl regex="false" match="cms.xoyo.com/site([/a-zA-Z0-9]*).xoyo.com/images"/>

</localpath>

</plugin>

</head>

八：开启sersync守护进程

首先配置全局环境变量，使得后同可以直接调用sersync命令

[root@Master conf]# echo 'export PATH=$PATH:/usr/local/sersync/bin'>>/etc/profile

[root@Master conf]# tail -1 /etc/profile

export PATH=$PATH:/usr/local/sersync/bin

[root@Master conf]# source /etc/profile

[root@Master conf]# which sersync

/usr/local/sersync/bin/sersync

启动sersync服务

serync -r -d -o /usr/local/sersync/conf/confxml.xml

-r初始化数据

-d后台启动

-o指定路径

如果需要将命令开启动，只需将命令去掉参数-r定入/etc/rc.local

启动后结果如下

[root@Master backup]# sersync -r -d -o /usr/local/sersync/conf/confxml.xml

set the system param

execute:echo 50000000 > /proc/sys/fs/inotify/max_user_watches

execute:echo 327679 > /proc/sys/fs/inotify/max_queued_events

parse the command param

option: -r rsync all the local files to the remote servers before the sersync work

option: -d    run as a daemon

option: -o    config xml name:  /usr/local/sersync/conf/confxml.xml

daemon thread num: 10

parse xml config file

host ip : localhost     host port: 8008

daemon start,sersync run behind the console

use rsync password-file :

user is rsync_backup

passwordfile is         /etc/rsync.password

config xml parse success

please set /etc/rsyncd.conf max connections=0 Manually

sersync working thread 12  = 1(primary thread) + 1(fail retry thread) + 10(daemon sub threads)

Max threads numbers is: 22 = 12(Thread pool nums) + 10(Sub threads)

please according your cpu ,use -n param to adjust the cpu rate

------------------------------------------

rsync the directory recursivly to the remote servers once

working please wait...

execute command: cd /opt/backup && rsync -aruz -R --delete ./  --timeout=100 rsync_backup@192.168.1.3::rsync --password-file=/etc/rsync.password >/dev/null 2>&1

run the sersync:

watch path is: /opt/backup

九：测试数据同步

[root@Master sersync]# cd /opt/backup/

[root@Master backup]# ls

[root@Master backup]# ls -ll

total 0

[root@Master backup]# touch 123

[root@Master backup]# touch 1234

[root@Master backup]# touch 1235

[root@Master backup]# touch 12333

[root@Master backup]# ls -ll

total 0

-rw-r--r--. 1 root root 0 Sep  8 09:26 123

-rw-r--r--. 1 root root 0 Sep  8 09:26 12333

-rw-r--r--. 1 root root 0 Sep  8 09:26 1234

-rw-r--r--. 1 root root 0 Sep  8 09:26 1235

目标服务器查看同步情况

[root@Client backup]# ls -ll

total 0

-rw-r--r--. 1 rsync rsync 0 Sep  8 04:26 123

-rw-r--r--. 1 rsync rsync 0 Sep  8 04:26 12333

-rw-r--r--. 1 rsync rsync 0 Sep  8 04:26 1234

-rw-r--r--. 1 rsync rsync 0 Sep  8 04:26 1235

测试结果表明数据同步正常，能够实时同步
