3-Transforms使用

1. Transforms用途

① Transforms当成工具箱的话，里面的class就是不同的工具。例如像totensor、resize这些工具。

② Transforms拿一些特定格式的图片，经过Transforms里面的工具，获得我们想要的结果。

2. Transforms该如何使用

2.1 transforms.Totensor使用

from torchvision import transforms
from PIL import Image

img_path = "Data/FirstTypeData/val/bees/10870992_eebeeb3a12.jpg"
img = Image.open(img_path)

tensor_trans = transforms.ToTensor()  # 创建 transforms.ToTensor类 的实例化对象
tensor_img = tensor_trans(img)  # 调用 transforms.ToTensor类 的__call__的魔术方法
print(tensor_img)

tensor([[[0.5725, 0.5725, 0.5725,  ..., 0.5686, 0.5725, 0.5765],
         [0.5725, 0.5725, 0.5725,  ..., 0.5686, 0.5725, 0.5765],
         [0.5686, 0.5686, 0.5725,  ..., 0.5686, 0.5725, 0.5765],
         ...,
         [0.5490, 0.5647, 0.5725,  ..., 0.6314, 0.6235, 0.6118],
         [0.5608, 0.5765, 0.5843,  ..., 0.5961, 0.5843, 0.5765],
         [0.5725, 0.5843, 0.5922,  ..., 0.5647, 0.5529, 0.5490]],

        [[0.4471, 0.4471, 0.4471,  ..., 0.4235, 0.4275, 0.4314],
         [0.4471, 0.4471, 0.4471,  ..., 0.4235, 0.4275, 0.4314],
         [0.4431, 0.4431, 0.4471,  ..., 0.4235, 0.4275, 0.4314],
         ...,
         [0.4000, 0.4157, 0.4235,  ..., 0.4706, 0.4627, 0.4510],
         [0.4118, 0.4275, 0.4353,  ..., 0.4431, 0.4314, 0.4235],
         [0.4235, 0.4353, 0.4431,  ..., 0.4118, 0.4000, 0.3961]],

        [[0.2471, 0.2471, 0.2471,  ..., 0.2588, 0.2627, 0.2667],
         [0.2471, 0.2471, 0.2471,  ..., 0.2588, 0.2627, 0.2667],
         [0.2431, 0.2431, 0.2471,  ..., 0.2588, 0.2627, 0.2667],
         ...,
         [0.2157, 0.2314, 0.2392,  ..., 0.2510, 0.2431, 0.2314],
         [0.2275, 0.2431, 0.2510,  ..., 0.2196, 0.2078, 0.2000],
         [0.2392, 0.2510, 0.2588,  ..., 0.1961, 0.1843, 0.1804]]])

2.2 需要Tensor数据类型原因

① Tensor有一些属性，比如反向传播、梯度等属性，它包装了神经网络需要的一些属性。

from torch.utils.tensorboard import SummaryWriter
from torchvision import transforms
from PIL import Image
import cv2

img_path = "Data/FirstTypeData/val/bees/10870992_eebeeb3a12.jpg"
img = Image.open(img_path)

writer = SummaryWriter("logs")

tensor_trans = transforms.ToTensor()
tensor_img = tensor_trans(img)

writer.add_image("Temsor_img",tensor_img)
writer.close()

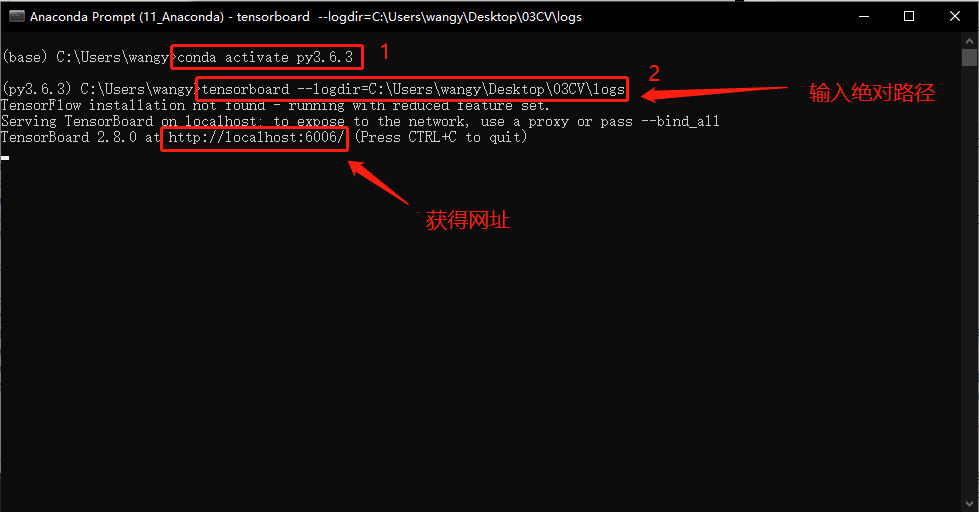

② 在 Anaconda 终端里面，激活py3.6.3环境，再输入 tensorboard --logdir=C:\Users\wangy\Desktop\03CV\logs 命令，将网址赋值浏览器的网址栏，回车，即可查看tensorboard显示日志情况。

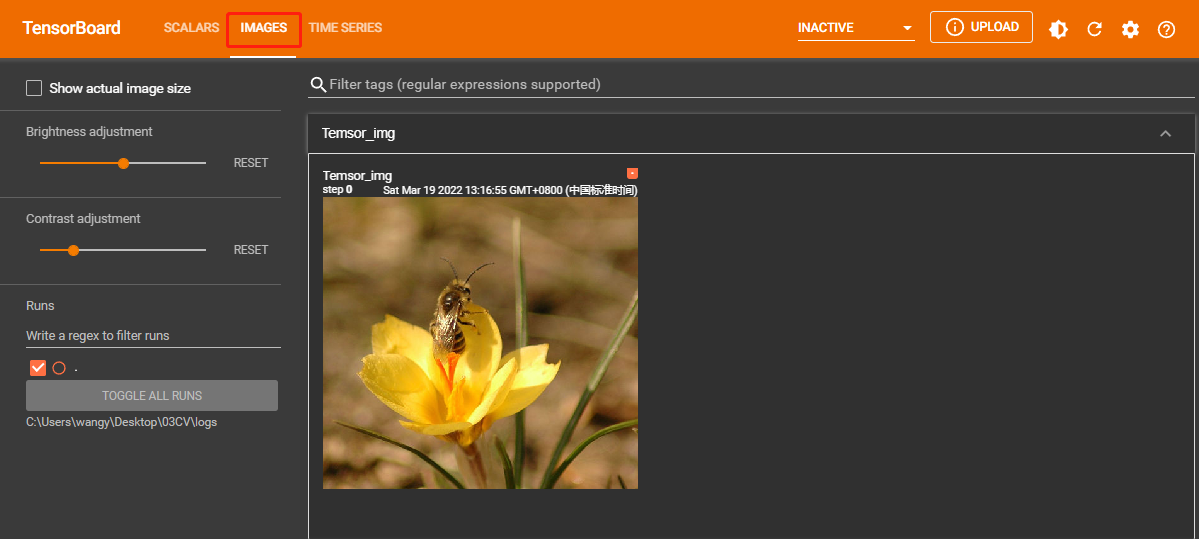

③ 输入网址可得Tensorboard界面。

3. 常见的Transforms工具

① Transforms的工具主要关注他的输入、输出、作用。

3.1 __call__魔术方法使用

class Person:
    def __call__(self,name):
        print("__call__ "+"Hello "+name)

    def hello(self,name):
        print("hello "+name)

person = Person()  # 实例化对象
person("zhangsan") # 调用__call__魔术方法
person.hello("list") # 调用hello方法

__call__ Hello zhangsan
hello list

3.2 Normanize归一化

from torch.utils.tensorboard import SummaryWriter
from torchvision import transforms
from PIL import Image
import cv2

img_path = "Data/FirstTypeData/val/bees/10870992_eebeeb3a12.jpg"
img = Image.open(img_path)

writer = SummaryWriter("logs")

tensor_trans = transforms.ToTensor()
img_tensor = tensor_trans(img)

print(img_tensor[0][0][0])
tensor_norm = transforms.Normalize([0.5,0.5,0.5],[0.5,0.5,0.5]) #input[channel]=(input[chnnel]-mean[channel])/std[channel]
img_norm = tensor_norm(img_tensor)
print(img_norm[0][0][0])

writer.add_image("img_tensor",img_tensor)
writer.add_image("img_norm",img_norm)
writer.close()

tensor(0.5725)
tensor(0.1451)

3.3 Resize裁剪

3.3.1 Resize裁剪方法一

from torch.utils.tensorboard import SummaryWriter
from torchvision import transforms
from PIL import Image
import cv2

img_path = "Data/FirstTypeData/val/bees/10870992_eebeeb3a12.jpg"
img = Image.open(img_path)
print(img)  # PIL类型的图片原始比例为 500×464

writer = SummaryWriter("logs")

trans_totensor = transforms.ToTensor()
img_tensor = trans_totensor(img)

trans_resize = transforms.Resize((512,512))
# PIL数据类型的 img -> resize -> PIL数据类型的 img_resize
img_resize = trans_resize(img)
# PIL 数据类型的 PIL -> totensor -> img_resize tensor
img_resize = trans_totensor(img_resize)
print(img_resize.size()) # PIL类型的图片原始比例为 3×512×512，3通道

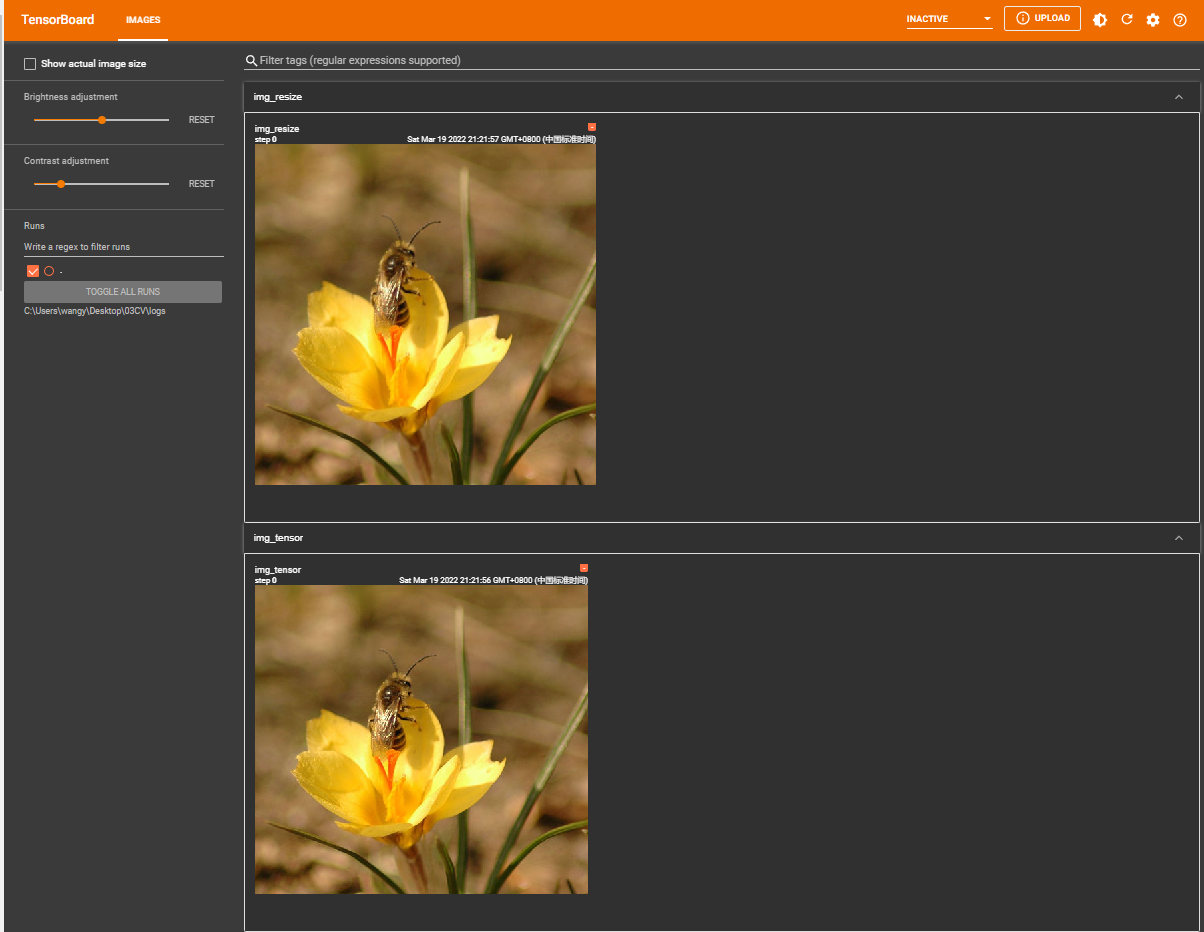

writer.add_image("img_tensor",img_tensor)
writer.add_image("img_resize",img_resize)
writer.close()

<PIL.JpegImagePlugin.JpegImageFile image mode=RGB size=500x464 at 0x2C25DF0B320>
torch.Size([3, 512, 512])

3.3.2 Resize裁剪方法二

from torch.utils.tensorboard import SummaryWriter
from torchvision import transforms
from PIL import Image
import cv2

img_path = "Data/FirstTypeData/val/bees/10870992_eebeeb3a12.jpg"
img = Image.open(img_path)
print(img)

writer = SummaryWriter("logs")

tensor_trans = transforms.ToTensor()
img_tensor = tensor_trans(img)

# Resize 第二种方式：等比缩放
trans_resize_2 = transforms.Resize(512) # 512/464 = 1.103 551/500 = 1.102
# PIL类型的 Image -> resize -> PIL类型的 Image -> totensor -> tensor类型的 Image
trans_compose = transforms.Compose([trans_resize_2, trans_totensor]) # Compose函数中后面一个参数的输入为前面一个参数的输出
img_resize_2 = trans_compose(img)
print(img_resize_2.size())

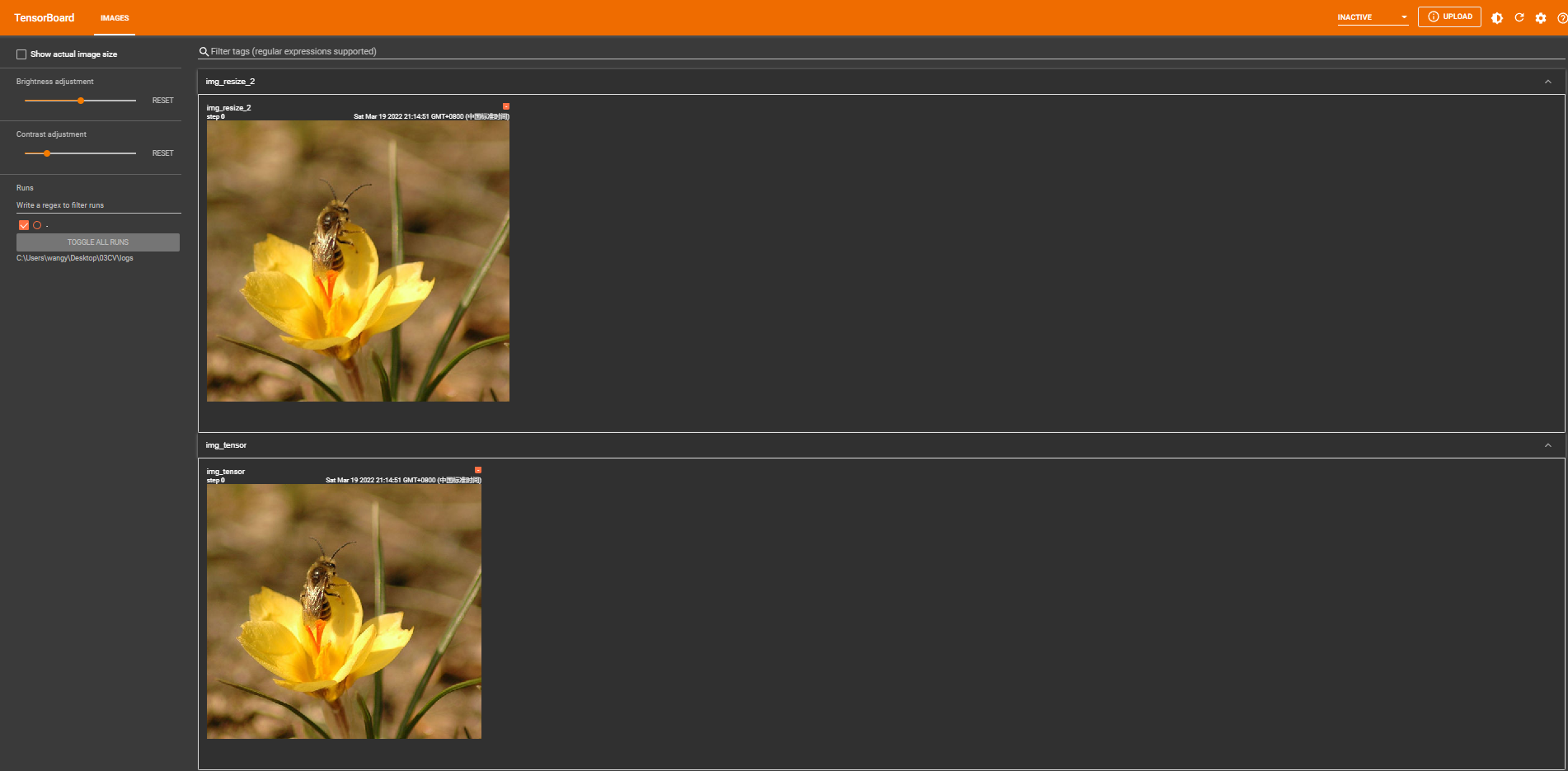

writer.add_image("img_tensor",img_tensor)
writer.add_image("img_resize_2",img_resize_2)
writer.close()

<PIL.JpegImagePlugin.JpegImageFile image mode=RGB size=500x464 at 0x2C25DF0B6D8>
torch.Size([3, 512, 551])

3.4 RandomCrop随即裁剪

3.4.1 RandomCrop随即裁剪方式一

from torch.utils.tensorboard import SummaryWriter
from torchvision import transforms
from PIL import Image
import cv2

img_path = "Data/FirstTypeData/val/bees/10870992_eebeeb3a12.jpg"
img = Image.open(img_path)
print(img)

writer = SummaryWriter("logs")

tensor_trans = transforms.ToTensor()
img_tensor = tensor_trans(img)
writer.add_image("img_tensor",img_tensor)

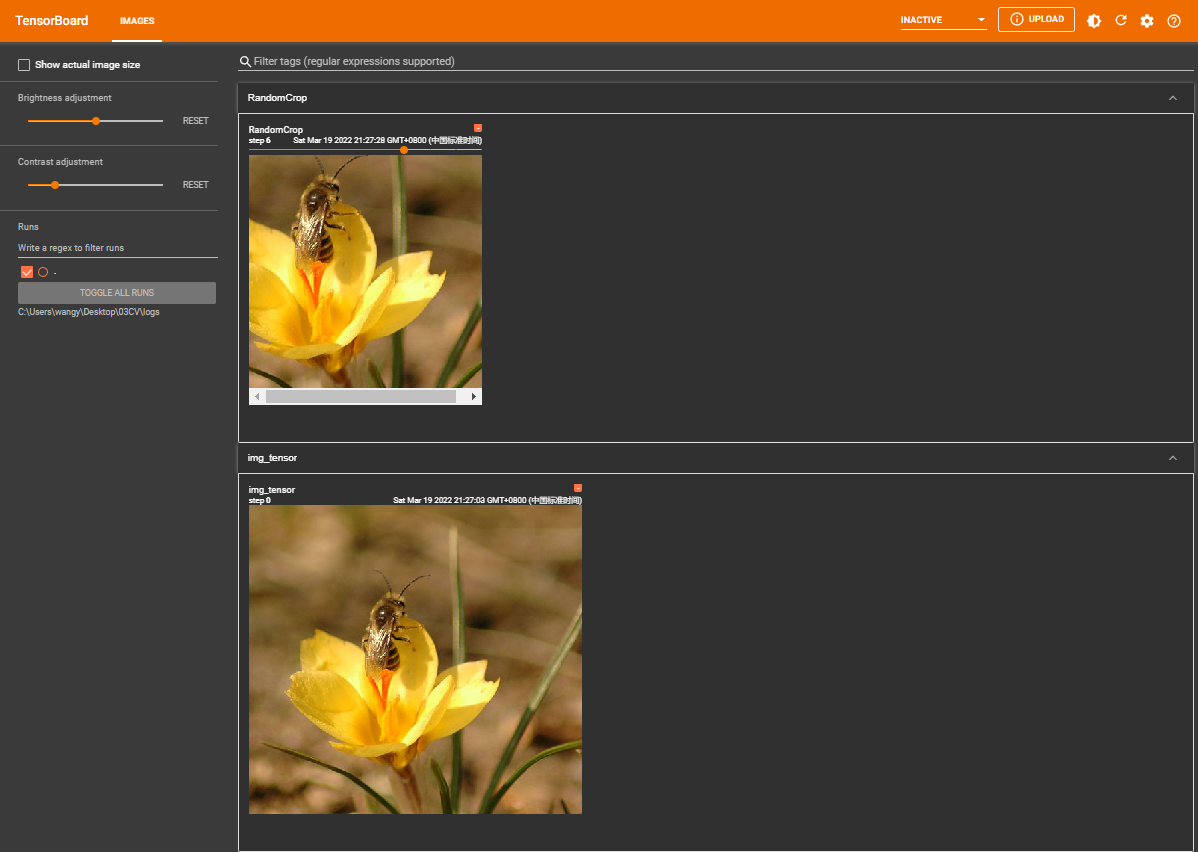

trans_random = transforms.RandomCrop(312) # 随即裁剪成 312×312 的
trans_compose_2 = transforms.Compose([trans_random,tensor_trans])
for i in range(10):
    img_crop = trans_compose_2(img)
    writer.add_image("RandomCrop",img_crop,i)
    print(img_crop.size())

<PIL.JpegImagePlugin.JpegImageFile image mode=RGB size=500x464 at 0x2C25DF0BAC8>
torch.Size([3, 312, 312])
torch.Size([3, 312, 312])
torch.Size([3, 312, 312])
torch.Size([3, 312, 312])
torch.Size([3, 312, 312])
torch.Size([3, 312, 312])
torch.Size([3, 312, 312])
torch.Size([3, 312, 312])
torch.Size([3, 312, 312])
torch.Size([3, 312, 312])

3.4.2 RandomCrop随即裁剪方式二

from torch.utils.tensorboard import SummaryWriter
from torchvision import transforms
from PIL import Image
import cv2

img_path = "Data/FirstTypeData/val/bees/10870992_eebeeb3a12.jpg"
img = Image.open(img_path)

print(img)

writer = SummaryWriter("logs")

tensor_trans = transforms.ToTensor()
img_tensor = tensor_trans(img)
writer.add_image("img_tensor",img_tensor)

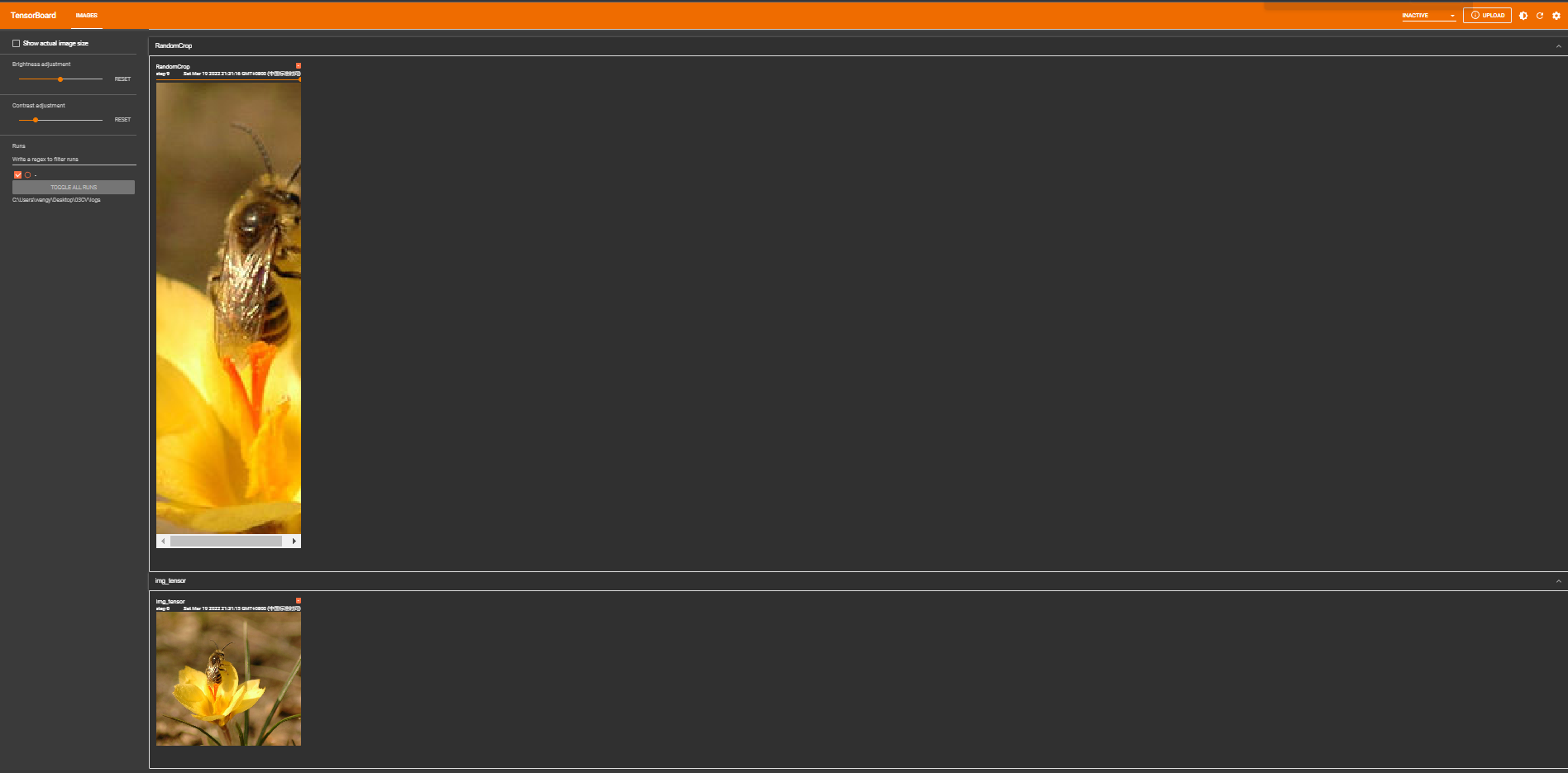

trans_random = transforms.RandomCrop((312,100))  # 指定随即裁剪的宽和高
trans_compose_2 = transforms.Compose([trans_random,tensor_trans])
for i in range(10):
    img_crop = trans_compose_2(img)
    writer.add_image("RandomCrop",img_crop,i)
    print(img_crop.size())

<PIL.JpegImagePlugin.JpegImageFile image mode=RGB size=500x464 at 0x2C25DF1B390>
torch.Size([3, 312, 100])
torch.Size([3, 312, 100])
torch.Size([3, 312, 100])
torch.Size([3, 312, 100])
torch.Size([3, 312, 100])
torch.Size([3, 312, 100])
torch.Size([3, 312, 100])
torch.Size([3, 312, 100])
torch.Size([3, 312, 100])
torch.Size([3, 312, 100])
