unity 3D + Google Play In-app Billing (IAB)(转) 热度 3

最近由于工作需要，研究unity如何接入Google Play以实现游戏内购买。目前IAB的实现，prime31做的插件比较好，各平台的IAB均有，但费用相对过高（几乎都是70刀左右，可怜穷小子）。在blogspot上找到仅有的一篇相关文章，特此转载在这以供大家相互交流学习。由于编程基础较差加上没学过java，按照该作者的方法暂时没有实现，希望看到此文章的程序猿们共同探讨解决方案。以下是文章原文：



底下是 Unity 介接 Google Play In-app Billing (IAB) 金流的步驟，使用的環境是 OSX，IAB 是 V3 版 :

1. 編譯 IInAppBillingService.java

a. 按照 GooglePlay 官方網站的指示 (http://developer.android.com/training/in-app-billing/preparing-iab-app.html) 產生此檔案，其實這是一個自動產生的檔案，詳細方法可以參考連結網頁敘述。此外值得注意的是，程式碼也可以由 git 從此處下載 :

git clone https://code.google.com/p/marketbilling/

(附註 : 也許現在已經更新了，但文章撰寫的當下，若是從 SDK Manager 勾選 Google Play Billing Library 下載的版本有 Bug，所以才由 git 下載。 ref :
http://stackoverflow.com/questions/14397343/google-play-in-app-billing-version-3-crash-on-item-already-owned-and-missing )

b. 編譯 IInAppBillingService.java，指令如下 (此處假設 android sdk 之資料夾路徑在 /Users/macaronics/android-sdks/) :

javac ./IInAppBillingService.java -cp /Users/macaronics/android-sdks/platforms/android-10/android.jar -d .

其中 -cp 指示編譯時參考之 library (android-10, Android 2.3.3)。編譯完成後輸入 :

jar cvfM ./iiabs.jar com/

產生的 iiabs.jar 放在 Unity 專案的 Assets/Plugins/Android/ 資料夾底下( 此範例將檔案置於 /Users/macaronics/UnityIabProj/Assets/Plugins/Android/) 。
注意要刪除資料夾 com，以免後續執行 jar 時，打包到舊的 com package。

2. 編譯 class IabHelper

a. 此類別由九個檔案組成，方便用來介接 Google IAB，九個 java 檔案應該位於前步驟下載之程式碼的 marketbilling/v3/src/com/example/android/trivialdrivesample/util 底下。

b. 逐一修改九個檔案裡的 "package com.example.android.trivialdrivesample.util" 改為你的 package name，例如  package com.macaronics.iab.util。

c. 建立欲編譯的檔案的 list，在 Terminal 底下的話直接輸入 cat > sources 然後依序輸入九個檔案檔名後按 control+d 儲存離開。

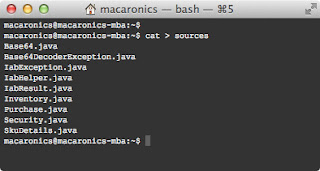

在 terminal 底下利用 cat 建立 sources file



d. 編譯 class IabHelper，輸入指令如下 :



javac @sources -cp /Users/macaronics/android-sdks/platforms/android-

10/android.jar:/Users/macaronics/UnityIabProj/Assets/Plugins/Android/iiabs.jar

其中 @sources 表示參考檔案 sources 裡的路徑。此外，引入的 library 除了 android-10/android.jar (Android 2.3.3) 外，還包含前一步驟所編譯的檔案 iiabs.jar。完成後接著輸入 :

jar cvfM ./iabhelper.jar com/

產生的 iabhelper.jar 放在 Unity 專案的 Assets/Plugins/Android/ 資料夾底下( 此範例將檔案置於 /Users/macaronics/UnityIabProj/Assets/Plugins/Android/) 。

3. 處理 onActivityResult 的結果訊息

a. 為了讓 IabHelper 能在 Activity 結束時處理 Activity 的結果，這裡我們需要自己撰寫繼承 UnityPlayerActivity 的類別來將結果 Relay 給 IabHelper。底下是範例的程式碼 :

?

package com.macaronics.iab;



import com.unity3d.player.UnityPlayerActivity;



import android.os.Bundle;

import android.util.Log;

import android.content.Intent;



public class overrideActivity extends UnityPlayerActivity {

    public interface cbEvent{

        public boolean cbEvent(int requestCode, int resultCode, Intent data);

    }



    protected cbEvent ie;

    static protected overrideActivity inst;

    protected void onCreate(Bundle savedInstanceState) {

        super.onCreate(savedInstanceState);

        inst =this;



        // print debug message to logcat

        Log.d("overrideActivity", "onCreate called!");

    }



    @Override

    public void onDestroy(){

        super.onDestroy();

        inst =null;

        Log.d("overrideActivity", "onDestroy called!");

    }



    @Override

    public void onActivityResult(int requestCode, int resultCode, Intent data){

        Log.d("overrideActivity", "onActivityResult called!");



        boolean ret =false;

        if (ie !=null){

            try{

                ret =ie.cbEvent(requestCode, resultCode, data);

            }

            catch(Exception e){

                ret =false;

            }

        }



        if (ret ==false){

            super.onActivityResult(requestCode, resultCode, data);

        }

    }



    static public void registerOnActivityResultCBFunc(final cbEvent pcbfunc){

        if (inst !=null)

            inst.ie =pcbfunc;

    }

}

其中函數 registerOnActivityResultCBFunc 只能記憶單一個 call back function，讀者可以把功能擴充成使用佇列來記憶更多的 call back function。

b. 同樣的編譯這個 class :

javac ./overrideActivity.java -cp /Users/macaronics/android-sdks/platforms/android-10/android.jar:/Applications/Unity/Unity.app/Contents/PlaybackEngines/AndroidPlayer/bin/classes.jar -d .

其中引入的 library 有 android-10/android.jar (Android 2.3.3)，及 Unity 的 classes.jar。然後輸入 :

jar cvfM ./overrideActivity.jar com/

產生的 overrideActivity.jar 放在 Unity 專案的 Assets/Plugins/Android/ 資料夾底下( 此範例將檔案置於 /Users/macaronics/UnityIabProj/Assets/Plugins/Android/) 。

4. 撰寫 iabWrapper.java

a. 主要用於介接 IabHelper 及 Unity ，提供基本的下單功能。程式碼分別敘述如下 :

?

package com.macaronics.iab;



import com.unity3d.player.UnityPlayer;



import android.app.Activity;

import android.util.Log;

import android.os.Bundle;

import android.os.Looper;

import android.content.Intent;



import java.util.*;



import com.macaronics.iab.util.*;

import com.macaronics.iab.overrideActivity;

值得注意的是這裡引入 UnityPlayer，步驟2編譯的 IabHelper (com.macaronics.iab.util)，及步驟3編譯的 overrideActivity (com.macaronics.iab.overrideActivity)。

底下是 class iabWrapper 的私有變數部分 :

?

public class iabWrapper{

    private Activity mActivity;

    private IabHelper mHelper;

    private String mEventHandler;

    ...

其中 mEventHandler 是回呼 Unity 時，接收訊息的 GameObject 名稱。此 class 有一個 Constructor 函數，三個成員函數及兩個給 IabHelper 回呼的函數，分別敘述如下 :

Constructor 函數在呼叫時給予 GooglePlay API PublicKey (由 GooglePlay 提供)，以及回呼 Unity 時，接收訊息的 GameObject 之名稱 :

?

public iabWrapper(String base64EncodedPublicKey, String strEventHandler){

    mActivity =UnityPlayer.currentActivity;

    mEventHandler =strEventHandler;



    if (mHelper !=null){

        dispose();

    }



    mHelper =new IabHelper(mActivity, base64EncodedPublicKey);

    mHelper.enableDebugLogging(true);



    mHelper.startSetup(new IabHelper.OnIabSetupFinishedListener() {

        public void onIabSetupFinished(IabResult result){

            if (!result.isSuccess()){

                //回呼 Unity GameObject 之函數 "msgReceiver", 並傳送字串訊息 (JSON 格式)

                UnityPlayer.UnitySendMessage(mEventHandler, "msgReceiver", "{\"code\":\"1\",\"ret\":\"false\",\"desc\":\""+result.toString()+"\"}");

                dispose();

                return;

            }



            //回呼 Unity GameObject 之函數 "msgReceiver", 並傳送字串訊息 (JSON 格式)

            UnityPlayer.UnitySendMessage(mEventHandler, "msgReceiver", "{\"code\":\"1\",\"ret\":\"true\",\"desc\":\""+result.toString()+"\"}");



            //register mHelper

            //向 overrideActivity 註冊 onActivityResult 回呼函數，並將資料 Relay 給 mHelper

            overrideActivity.registerOnActivityResultCBFunc(

                new overrideActivity.cbEvent(){

                    public boolean cbEvent(int requestCode, int resultCode, Intent data)

                    {



                        if (mHelper.handleActivityResult(requestCode, resultCode, data)){

                            return true;

                        }

                        else{

                            return false;

                        }

                    }

                }

            );

        }

    });

}

其中的 UnitySendMessage 用來呼叫 Unity GameObject 之函數 "msgReceiver", 並傳送字串訊息 (JSON 格式)。此外值得注意的是此 Constructor 函數還向 overrideActivity 註冊用來接收 onActivityResult 訊息的回呼函數。底下的dispose 函數主要用於釋放 mHelper :

?

public void dispose()

{

    if (mHelper !=null)

    {

        mHelper.dispose();

    }

    mHelper =null;

}

purchase 函數會啟動購買商品的介面，其中第一項參數是 Product SKU (在 GooglePlay 設定的產品 SKU)，第二項是回呼 onActivityResult 函數時用來分辨購買動作的 reqCode，第三項是用來確認此筆講買是否合法的 payloadString (購買成功之後， GooglePlay 回覆的資訊裡會包含此字串。)。

?

public void purchase(String strSKU, String reqCode, String payloadString)

{

    int intVal =Integer.parseInt(reqCode);

    if (mHelper !=null)

        mHelper.launchPurchaseFlow(mActivity, strSKU, intVal, mPurchaseFinishedListener, payloadString);

}

底下是完成購買之後回呼的函數 (onIabPurchaseFinished)，這裡把接收的資訊以 JSON 格式轉送給 Unity :

?

IabHelper.OnIabPurchaseFinishedListener mPurchaseFinishedListener =new IabHelper.OnIabPurchaseFinishedListener() {

    public void onIabPurchaseFinished(IabResult result, Purchase purchase) {

        if (result.isFailure()){

            UnityPlayer.UnitySendMessage(mEventHandler, "msgReceiver", "{\"code\":\"2\",\"ret\":\"false\",\"desc\":\"\",\"sign\":\"\"}");

            return;

        }



        boolean ret =false;

        String result_json ="";

        String result_sign ="";

        if (purchase !=null){

            ret =true;

            result_json =purchase.getOriginalJson().replace('\"', '\'');

            result_sign =purchase.getSignature();

        }



        UnityPlayer.UnitySendMessage(mEventHandler, "msgReceiver", "{\"code\":\"2\",\"ret\":\""+ret+"\",\"desc\":\""+result_json+"\",\"sign\":\""+result_sign+"\"}");

    }

};

產品在購買 (Purchase) 之後若再次購買則會失敗，在 Console 裡可以看到 "Item already owned" 訊息。若產品的類型屬於消耗性的產品，則需要執行 consume 指令才可再次購買 :

?

public void consume(String itemType, String jsonPurchaseInfo, String signature)

{

    String transedJSON =jsonPurchaseInfo.replace('\'', '\"');

    if (mHelper ==null)

        return;



    Purchase pp =null;

    try{

        pp =new Purchase(itemType, transedJSON, signature);

    }

    catch(Exception e){

        pp=null;

    }



    if (pp !=null){

        final Purchase currpp =pp;

        mActivity.runOnUiThread(new Runnable(){

            public void run(){

                mHelper.consumeAsync(currpp, mConsumeFinishedListener);

            }

        });

    }

}

其中參數 itemType 在此範例為 "inapp"，jsonPurchaseInfo 及 signature 是在 purchase 完成後， IabHelper 回呼 onIabPurchaseFinished 所給的資料。consume 完成之後回呼的函數如下 :

?

IabHelper.OnConsumeFinishedListener mConsumeFinishedListener =new IabHelper.OnConsumeFinishedListener() {

    public void onConsumeFinished(Purchase purchase, IabResult result) {

        if (result.isSuccess()){

            Log.d("iabWrapper", "Consumption successful. Provisioning");

            UnityPlayer.UnitySendMessage(mEventHandler, "msgReceiver", "{\"code\":\"3\",\"ret\":\"true\",\"desc\":\""+purchase.getOriginalJson().replace('\"', '\'')+"\",\"sign\":\""+purchase.getSignature()+"\"}");

        }

        else{

            UnityPlayer.UnitySendMessage(mEventHandler, "msgReceiver", "{\"code\":\"3\",\"ret\":\"false\",\"desc\":\"\",\"sign\":\"\"}");

        }

    }

};

b. 編譯 iabWrapper.java

javac ./iabWrapper.java -cp /Users/macaronics/android-sdks/platforms/android-10/android.jar:/Applications/Unity/Unity.app/Contents/PlaybackEngines/AndroidPlayer/bin/classes.jar:/Users/macaronics/UnityIabProj/Assets/Plugins/Android/iabhelper.jar:/Users/macaronics/UnityIabProj/Assets/Plugins/Android/overrideActivity.jar -d .

其中引入的 library 有 android-10/android.jar (Android 2.3.3)， Unity 的 classes.jar，先前編譯的 iabhelper.jar 及 overrideActivity.jar。然後輸入 :

jar cvfM ./iabWrapper.jar com/

產生的 iabWrapper.jar 放在 Unity 專案的 Assets/Plugins/Android/ 資料夾底下( 此範例將檔案置於 /Users/macaronics/UnityIabProj/Assets/Plugins/Android/) 。

5. 設定 Permission ( AndroidManifest.xml )

若要執行 GooglePlay Billing 功能則要設定 AndroidManifest.xml，將底下的 AndroidManifest.xml 置於 /Users/macaronics/UnityIabProj/Assets/Plugins/Android 資料夾。

?

<?xml version="1.0" encoding="utf-8"?>

<manifest android:versionCode="1" android:versionName="1.0"

          android:installLocation="preferExternal"

          package="com.macaronics.iab"

          xmlns:android="http://schemas.android.com/apk/res/android">

  <supports-screens android:anyDensity="true" android:smallScreens="true"

                    android:normalScreens="true" android:largeScreens="true"

                    android:xlargeScreens="true" />

  <application android:label="@string/app_name"

               android:icon="@drawable/app_icon" android:debuggable="false">

    <activity android:label="@string/app_name"

              android:name="com.macaronics.iab.overrideActivity"

              android:screenOrientation="portrait"

              android:configChanges=

"locale|mcc|mnc|touchscreen|keyboard|keyboardHidden|navigation|orientation|screenLayout|uiMode|screenSize|smallestScreenSize|fontScale"

              >

      <intent-filter>

        <action android:name="android.intent.action.MAIN" />

        <category android:name="android.intent.category.LAUNCHER" />

      </intent-filter>

    </activity>

    <activity android:label="@string/app_name"

              android:name="com.unity3d.player.UnityPlayerActivity"

              android:screenOrientation="portrait"

              android:configChanges=

"locale|mcc|mnc|touchscreen|keyboard|keyboardHidden|navigation|orientation|screenLayout|uiMode|screenSize|smallestScreenSize|fontScale"

              />

    <activity android:label="@string/app_name"

              android:name="com.unity3d.player.UnityPlayerNativeActivity"

              android:screenOrientation="portrait"

              android:configChanges=

"locale|mcc|mnc|touchscreen|keyboard|keyboardHidden|navigation|orientation|screenLayout|uiMode|screenSize|smallestScreenSize|fontScale"

              >

      <meta-data android:name="android.app.lib_name" android:value="unity" />

      <meta-data android:name="unityplayer.ForwardNativeEventsToDalvik"

                 android:value="false" />

    </activity>

    <activity android:label="@string/app_name"

              android:name="com.unity3d.player.VideoPlayer"

              android:screenOrientation="behind"

              android:configChanges=

"locale|mcc|mnc|touchscreen|keyboard|keyboardHidden|navigation|orientation|screenLayout|uiMode|screenSize|smallestScreenSize|fontScale"

              />

  </application>

  <uses-feature android:glEsVersion="0x20000" />



  <uses-permission android:name="com.android.vending.BILLING" />

  <uses-permission android:name="android.permission.INTERNET" />

  <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />



</manifest>

注意其中的 package="com.macaronics.iab" 要改成你自己的 package 名稱，與 Unity 裡的 Bundle Identifier 相同。此外，這裡還設定了主要啟動的 Activity 為 overrideActivity，以及 uses-permission。

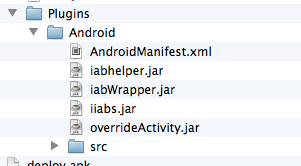

到目前為止 /Users/macaronics/UnityIabProj/Assets/Plugins/Android 資料夾底下應該會有這些檔案 (iabhelper.jar, iabWrapper.jar, iiabs.jar, overrideActivity.jar, AndroidManifest.xml ) :

到目前為止應該要有的檔案

6. Unity 部分的 iabWrapper.cs

利用 AndroidJNI 介接 Java 程式 (注意為了接收 java 回傳的字串訊息，此 script (component) 必須加入到名為 iabWrapper 的 GameObject 裡)。 :

?

using UnityEngine;



using System.Collections;

using System.Collections.Generic;



public class iabWrapper : MonoBehaviour

{

    public delegate void cbFunc(object[] retarr);

    cbFunc iabSetupCB =null;

    cbFunc iabPurchaseCB =null;

    cbFunc iabConsumeCB =null;



    AndroidJavaObject mIABHelperObj =null;

    static iabWrapper g_inst =null;



    void Start(){

        g_inst =this;

    }



    static public void init(string base64EncodedPublicKey, cbFunc tmpIabSetupCBFunc){

        if (g_inst ==null)

            return;



        g_inst.iabSetupCB =tmpIabSetupCBFunc;



        dispose();

        g_inst.mIABHelperObj =new AndroidJavaObject("com.macaronics.iab.iabWrapper", new object[2]{base64EncodedPublicKey, "iabWrapper"});

    }



    static public void dispose(){

        if (g_inst ==null)

            return;



        if (g_inst.mIABHelperObj !=null){

            g_inst.mIABHelperObj.Call("dispose");

            g_inst.mIABHelperObj.Dispose();

            g_inst.mIABHelperObj =null;

        }

    }



        ...

其中 init 負責呼叫 iabWrapper.java 之建構函數並建立該物件，dispose 則是負責刪除釋放 iabWrapper.java 物件。底下是主要的兩個功能，purchase 和 consume :

?

static public void purchase(string strSKU, int reqCode, string payload, cbFunc tmpIabPurchaseCBFunc){

    if (g_inst ==null)

        return;



    g_inst.iabPurchaseCB =tmpIabPurchaseCBFunc;



    if (g_inst.mIABHelperObj !=null){

        g_inst.mIABHelperObj.Call("purchase", new object[3]{strSKU, reqCode.ToString(), payload});

    }

}



static public void consume_inapp(string strPurchaseJsonInfo, string strSignature, cbFunc tmpIabConsumeCBFunc){

    if (g_inst ==null)

        return;



    g_inst.iabConsumeCB =tmpIabConsumeCBFunc;



    if (g_inst.mIABHelperObj !=null){

        g_inst.mIABHelperObj.Call("consume", new object[3]{"inapp", strPurchaseJsonInfo, strSignature});

    }

}

其中先將 callback 函數記錄起來，然後呼叫其對應的 java function。最後一部分是 msgReceiver，負責接收 java 回呼的結果並將資訊回呼對應的 callback function (先前呼叫 purchase 或是 consume 所給予的 callback function)。

?

void msgReceiver(string msg){

    if (g_inst ==null)

        return;



    //parse json

    Dictionary<string, object> cache =(Dictionary<string, object>)MiniJSON.Json.Deserialize(msg);



    //dispatch msg

    if (cache.ContainsKey("code")==true){

        int val =0;

        int.TryParse((string)cache["code"], out val);

        switch(val){

            case 0:{

                //unknown

                Debug.Log("Unity-iabWrappe :cannot parse cache[code]");



            }

            break;



            case 1:{

                //OnIabSetupFinishedListener

                if (cache.ContainsKey("ret")==true){

                    string retval =(string)cache["ret"];

                    if (retval =="true"){

                        //可使用

                        if (iabSetupCB !=null){

                            iabSetupCB( new object[1]{true} );

                        }



                    }

                    else if (retval =="false"){

                        //不可使用

                        if (iabSetupCB !=null)

                        {

                            iabSetupCB( new object[1]{false} );

                        }

                    }else{

                        Debug.Log("Unity-iabWrapper :cannot parse cache[ret], code=1");

                    }

                }

            }

            break;



            case 2:{

                //onIabPurchaseFinished

                if (cache.ContainsKey("ret")==true){

                    string retval =(string)cache["ret"];

                    if (retval =="true"){

                        //可使用

                        if (iabPurchaseCB !=null){

                            iabPurchaseCB( new object[3]{true, (string)cache["desc"], (string)cache["sign"]} );

                        }



                    }

                    else if (retval =="false"){

                        //不可使用

                        if (iabPurchaseCB !=null)

                        {

                            iabPurchaseCB( new object[3]{false, "", ""} );

                        }



                    }

                    else{

                        Debug.Log("Unity-iabWrapper  :cannot parse cache[ret], code=2");

                    }

                }

            }

            break;



            case 3:{

                //OnConsumeFinishedListener

                if (cache.ContainsKey("ret")==true){

                    string retval =(string)cache["ret"];

                    if (retval =="true"){

                        //可使用

                        if (iabConsumeCB !=null)

                        {

                            iabConsumeCB( new object[3]{true, (string)cache["desc"], (string)cache["sign"]} );

                        }



                    }else if (retval =="false"){

                        //不可使用

                        if (iabConsumeCB !=null)

                        {

                            iabConsumeCB( new object[3]{false, "", ""} );

                        }



                    }

                    else{

                        Debug.Log("Unity-iabWrapper :cannot parse cache[ret], code=3");



                    }

                }

            }

            break;

        }

    }

}

程式碼先將 JSON 字串轉為 object 物件並依照物件種類做對應的處理，其中 purchase 的 callback (case 2)，回傳的參數依序為 : 1. 是否成功，2. purchase 結果字串以及 3. purchase 結果之 signature (可作為驗証之用，參考這篇)。

7. 實作 IAB APP

建立一個 script 名為 main，並將此 script 加入至 Camera。這裡實作一個 purchase 功能，並在 purchase 完成之後立刻執行 consume。

?

using UnityEngine;

using UnityEngine;

using System.Collections;



public class main : MonoBehaviour {



    // Use this for initialization

    void Start () {

        iabWrapper.init(

            "PUBLIC_KEY",

            delegate(object[] ret){

                if (true ==(bool)ret[0]){

                    Debug.Log("iab successfully initialized");

                }

                else{

                    Debug.Log("failed to initialize iab");

                }

            });

    }



    void OnGUI(){

        if (GUI.Button(new Rect(0, 0, 100, 100), "purchase")){

            iabWrapper.purchase("PRODUCT_SKU", 10001, "PRODUCT_SKU_AND_USER_ID_AND_DATE",

                delegate(object[] ret){

                    if (false ==(bool)ret[0]){

                        Debug.Log("purchase cancelled");

                    }

                    else{

                        string purchaseinfo =(string)ret[1];

                        string signature =(string)ret[2];

                        iabWrapper.consume_inapp(purchaseinfo, signature,

                            delegate(object[] ret2){

                                if (false ==(bool)ret2[0])

                                {

                                    Debug.Log("failed to consume product");

                                }

                            });

                    }

                });

        }

    }



    void OnApplicationQuit(){

        iabWrapper.dispose();

    }

}

其中的 PUBLIC_KEY，更換成你的 Public Key，代入 purchase 函數的參數更改成你的參數。範例原始碼可以從這裡取得 : http://github.com/phardera/unity3d_googleplay_iab.git

unity playforward
