vertx模块DeploymentManager部署管理器

DeploymentManager

public DeploymentManager(VertxInternal vertx) {
    this.vertx = vertx;
    loadVerticleFactories();
}

/**
  * ServiceHelper本质对jdk ServiceLoader的封装，vertx大量使用 SPI 扩展功能实现
  */
private void loadVerticleFactories() {
    Collection<VerticleFactory> factories = ServiceHelper.loadFactories(VerticleFactory.class);
    factories.forEach(this::registerVerticleFactory);
    VerticleFactory defaultFactory = new JavaVerticleFactory();
    defaultFactory.init(vertx);
    defaultFactories.add(defaultFactory);
}

verticle部署

/**
  * 部署verticle
  * @params identifier 类全限定名称
  * @params options 部署选项
  * @params completionHandler 回调处理逻辑
  */
public void deployVerticle(String identifier,
                         DeploymentOptions options,
                         Handler<AsyncResult<String>> completionHandler) {
    if (options.isMultiThreaded() && !options.isWorker()) {
      throw new IllegalArgumentException("If multi-threaded then must be worker too");
    }
    //获取context
    ContextImpl callingContext = vertx.getOrCreateContext();
    //jdk9+不支持 isolationGroup，通常情况都不会使用isolationGroup
    ClassLoader cl = getClassLoader(options, callingContext);
    // deployment Id 采用 UUID
    doDeployVerticle(identifier, generateDeploymentID(), options, callingContext, callingContext, cl, completionHandler);
}

/**
  * 部署verticle　逻辑
  */
private void doDeployVerticle(String identifier,
                            String deploymentID,
                            DeploymentOptions options,
                            ContextImpl parentContext,
                            ContextImpl callingContext,
                            ClassLoader cl,
                            Handler<AsyncResult<String>> completionHandler) {
    //根据identifier查找对应的 xxFactory，查找不到使用默认JavaVerticleFactory
    List<VerticleFactory> verticleFactories = resolveFactories(identifier);
    Iterator<VerticleFactory> iter = verticleFactories.iterator();
    doDeployVerticle(iter, null, identifier, deploymentID, options, parentContext, callingContext, cl, completionHandler);
}

private void doDeployVerticle(Iterator<VerticleFactory> iter,
                            Throwable prevErr,
                            String identifier,
                            String deploymentID,
                            DeploymentOptions options,
                            ContextImpl parentContext,
                            ContextImpl callingContext,
                            ClassLoader cl,
                            Handler<AsyncResult<String>> completionHandler) {
    if (iter.hasNext()) {
      //是否解析,default false
      ...
      //执行部署verticle逻辑
      fut.setHandler(ar -> {
        Throwable err;
        if (ar.succeeded()) {
            //判断解析之后名称是否相等
            ...
            if (verticleFactory.blockingCreate()) {//是否是阻塞创建
             /**根据instances数量执行deploy*/
              vertx.<Verticle[]>executeBlocking(createFut -> {
                try {
                  Verticle[] verticles = createVerticles(verticleFactory, identifier, options.getInstances(), cl);
                  createFut.complete(verticles);
                } catch (Exception e) {
                  createFut.fail(e);
                }
              }, res -> {
                if (res.succeeded()) {
                  doDeploy(identifier, deploymentID, options, parentContext, callingContext, completionHandler, cl, res.result());
                } else {
                  // 失败继续执行下一个
                  doDeployVerticle(iter, res.cause(), identifier, deploymentID, options, parentContext, callingContext, cl, completionHandler);
                }
              });
              return;
            } else {
              try {
               /**根据instances数量执行deploy*/
                Verticle[] verticles = createVerticles(verticleFactory, identifier, options.getInstances(), cl);
                doDeploy(identifier, deploymentID, options, parentContext, callingContext, completionHandler, cl, verticles);
                return;
              } catch (Exception e) {
                err = e;
              }
            }
          }
        }
        ...
}

/**
  *　根据instances数量初始化verticle实例
  */
private Verticle[] createVerticles(VerticleFactory verticleFactory, String identifier, int instances, ClassLoader cl) throws Exception {
    Verticle[] verticles = new Verticle[instances];
    for (int i = ; i < instances; i++) {
      verticles[i] = verticleFactory.createVerticle(identifier, cl);
      if (verticles[i] == null) {
        throw new NullPointerException("VerticleFactory::createVerticle returned null");
      }
    }
    return verticles;
}

private void doDeploy(String identifier, String deploymentID, DeploymentOptions options,
                    ContextImpl parentContext,
                    ContextImpl callingContext,
                    Handler<AsyncResult<String>> completionHandler,
                    ClassLoader tccl, Verticle... verticles) {
    // Copy一份副本
    JsonObject conf = options.getConfig() == null ? new JsonObject() : options.getConfig().copy();
    String poolName = options.getWorkerPoolName();//获取定义的worker Pool 名称

    Deployment parent = parentContext.getDeployment();
    DeploymentImpl deployment = new DeploymentImpl(parent, deploymentID, identifier, options);

    AtomicInteger deployCount = new AtomicInteger();
    AtomicBoolean failureReported = new AtomicBoolean();
    /**根据instances verticle 数量执行多实例，利用CPU多核心*/
    for (Verticle verticle: verticles) {
      /**
        * 三种context类型，默认Standard
        * Standard Verticles(eventloop)
        * Worker Verticles(DeploymentOptions_workerPoolName & DeploymentOptions_workerPoolSize & DeploymentOptions_worker)
        * Multi-threaded worker verticles(worker Verticles 基础上 & DeploymentOptions_multiThreaded)
        */
      WorkerExecutorImpl workerExec = poolName != null ? vertx.createSharedWorkerExecutor(poolName, options.getWorkerPoolSize(), options.getMaxWorkerExecuteTime()) : null;
      WorkerPool pool = workerExec != null ? workerExec.getPool() : null;
      ContextImpl context = options.isWorker() ? vertx.createWorkerContext(options.isMultiThreaded(), deploymentID, pool, conf, tccl) :
        vertx.createEventLoopContext(deploymentID, pool, conf, tccl);

      if (workerExec != null) {//使用worker verticle　添加Close Hook
        context.addCloseHook(workerExec);
      }
      //绑定当前context
      context.setDeployment(deployment);
      deployment.addVerticle(new VerticleHolder(verticle, context));

      //执行deploy
      context.runOnContext(v -> {
        try {
          //verticle初始化
          verticle.init(vertx, context);
          Future<Void> startFuture = Future.future();
          //调用deploy verticle的start 方法
          verticle.start(startFuture);
          //deployVerticle　调用complete方法的回调处理
          startFuture.setHandler(ar -> {
            if (ar.succeeded()) {
              if (parent != null) {//parentVericl不为null,绑定父子映射关系
                if (parent.addChild(deployment)) {
                  deployment.child = true;
                } else {
                  // Orphan
                  deployment.undeploy(null);
                  return;
                }
              }
              VertxMetrics metrics = vertx.metricsSPI();//初始化verticle metrics
              if (metrics != null) {
                metrics.verticleDeployed(verticle);
              }
              deployments.put(deploymentID, deployment);//添加集合中
              //实例数量是否全部部署成功
              if (deployCount.incrementAndGet() == verticles.length) {
                reportSuccess(deploymentID, callingContext, completionHandler);
              }
            } else if (failureReported.compareAndSet(false, true)) {//部署失败
              deployment.rollback(callingContext, completionHandler, context, ar.cause());
            }
          });
        } catch (Throwable t) {
          if (failureReported.compareAndSet(false, true))
            deployment.rollback(callingContext, completionHandler, context, t);
        }
      });
    }
}

Verticle Types

Verticle Types : 一、Standard Verticles、二、Worker Verticles、三、Multi-threaded worker verticles．
    本质还是eventloop处理connection、read/write、encode/decode , 事件处理(eventHandler)在配置
    何种类型的verticle相应的context处理 , 调度逻辑在VertxHandler类配置的context调度,
    和vertx.executeBlocking->{...}　相同效果.

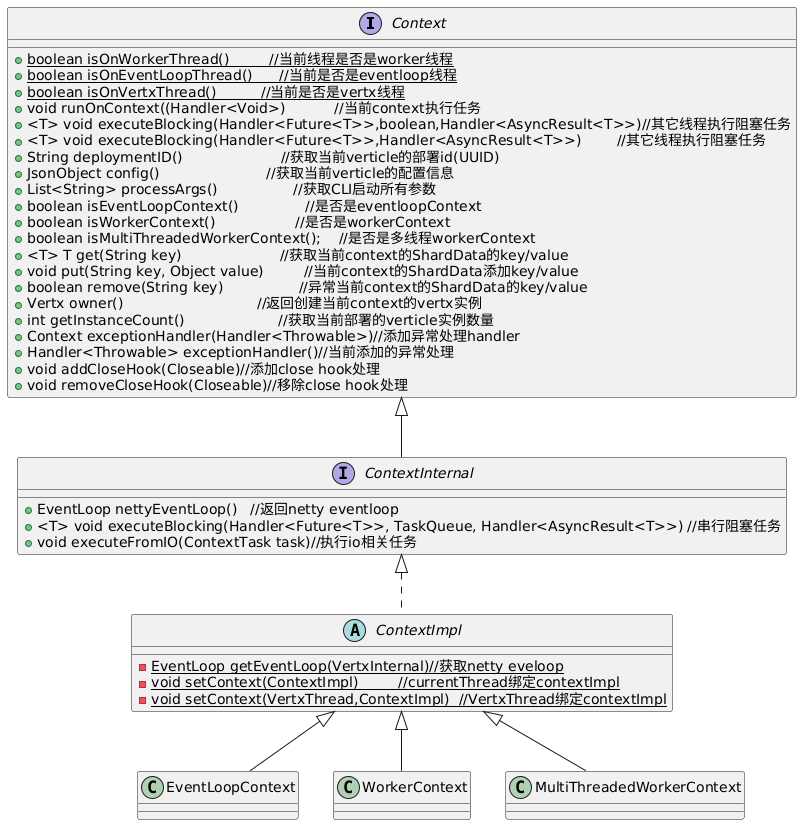

Context Class diagram 如图:

DeploymentOptions

//添加配置,当前部署verticle共享配置
private JsonObject config;

//是否使用WorkerContext
private boolean worker;

/**
  * 是否使用mutil workerContext,不推荐,通常使用eventloop或worker,
  * 运行是在worker pool不同线程执行，需考虑线程安全,如果使用将无法使用其他多数模块
  */
private boolean multiThreaded;

//隔离组配置,部署隔离相关配置，不推荐，并且JDK9+不支持
private String isolationGroup;

//定义的worker pool名称前缀
private String workerPoolName;

// 定义打worker pool线程数量
private int workerPoolSize;

//定义最大worker poll 执行时间,Thread超过时间阀值输出level:warn报警 ,不配置默认 60s
private long maxWorkerExecuteTime;

//是否启用HA(高可用),默认false
private boolean ha;

//配置额外的Classpath路径,如果未设置isolationGroup 则忽略
private List<String> extraClasspath;

//配置verticle 实例数量
private int instances;

//配置隔离的类，路径为完全限定名，可使用通配符 *
private List<String> isolatedClasses;
