Python中局部放大图案例

例子一：

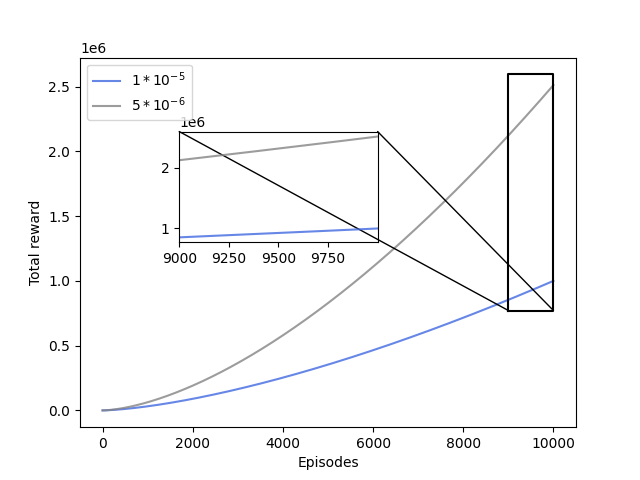

先上完整代码和效果图：

import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.axes_grid1.inset_locator import inset_axes
from matplotlib.patches import ConnectionPatch

MAX_EPISODES = 10000
x_axis_data = []
for l in range(MAX_EPISODES):
    x_axis_data.append(l)

reward_demaddpg5=[]
reward_demaddpg10=[]
for l in range(MAX_EPISODES):
    reward_demaddpg5.append(l**1.5)

for l in range(MAX_EPISODES):
    reward_demaddpg10.append(l**1.6)

fig, ax = plt.subplots(1, 1)
ax.plot(x_axis_data, reward_demaddpg5, color='#4169E1', alpha=0.8, label='$1*10^{-5}$')
ax.plot(x_axis_data, reward_demaddpg10, color='#848484', alpha=0.8, label='$5*10^{-6}$')
# ax.plot(x_axis_data, reward_demaddpg15, color='#FF774A', alpha=0.8, label='$1*10^{-6}$')
# ax.plot(x_axis_data, reward_demaddpg20, color='#575B20', alpha=0.8, label='$5*10^{-7}$')
# ax.plot(x_axis_data, reward_demaddpg25, color='#B84D37', alpha=0.8, label='$1*10^{-7}$')
ax.legend(loc="best")
ax.set_xlabel('Episodes')
ax.set_ylabel('Total reward')

# axins = inset_axes(ax, width="40%", height="30%", loc='lower left',
#                    bbox_to_anchor=(0.3, 0.1, 1, 1),
#                    bbox_transform=ax.transAxes)

axins = ax.inset_axes((0.2, 0.5, 0.4, 0.3))
axins.plot(x_axis_data, reward_demaddpg5, color='#4169E1', alpha=0.8, label='$1*10^{-5}$')
axins.plot(x_axis_data, reward_demaddpg10, color='#848484', alpha=0.8, label='$5*10^{-6}$')

# 设置放大区间  对应横坐标
zone_left = 9000
zone_right =9999  #!最右侧不能越界！！！！

# 坐标轴的扩展比例（根据实际数据调整）
x_ratio = 0  # x轴显示范围的扩展比例
y_ratio = 0.05  # y轴显示范围的扩展比例

# X轴的显示范围
xlim0 = x_axis_data[zone_left]-(x_axis_data[zone_right]-x_axis_data[zone_left])*x_ratio
xlim1 = x_axis_data[zone_right]+(x_axis_data[zone_right]-x_axis_data[zone_left])*x_ratio

# Y轴的显示范围
y = np.hstack((reward_demaddpg5[zone_left:zone_right], reward_demaddpg10[zone_left:zone_right],
               ))
ylim0 = np.min(y)-(np.max(y)-np.min(y))*y_ratio
ylim1 = np.max(y)+(np.max(y)-np.min(y))*y_ratio

# 调整子坐标系的显示范围
axins.set_xlim(xlim0, xlim1)
axins.set_ylim(ylim0, ylim1)

# 原图中画方框
tx0 = xlim0
tx1 = xlim1
ty0 = ylim0
ty1 = ylim1
sx = [tx0,tx1,tx1,tx0,tx0]
sy = [ty0,ty0,ty1,ty1,ty0]
ax.plot(sx,sy,"black")

# 画两条线
xy = (xlim0,ylim0)
xy2 = (xlim0,ylim1)
con = ConnectionPatch(xyA=xy2,xyB=xy,coordsA="data",coordsB="data",
        axesA=axins,axesB=ax)
axins.add_artist(con)

xy = (xlim1,ylim0)
xy2 = (xlim1,ylim1)
con = ConnectionPatch(xyA=xy2,xyB=xy,coordsA="data",coordsB="data",
        axesA=axins,axesB=ax)
axins.add_artist(con)

plt.show()

导入库：

import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.axes_grid1.inset_locator import inset_axes
from matplotlib.patches import ConnectionPatch

横坐标设置：

MAX_EPISODES = 300  #自己定
x_axis_data = []
for l in range(MAX_EPISODES):
    x_axis_data.append(l)

#reward_demaddpg[]储存的是执行demaddpg算法后所获得的结果。

其中fig, ax = plt.subplots(a,b)用来控制子图个数：a为行数，b为列数。

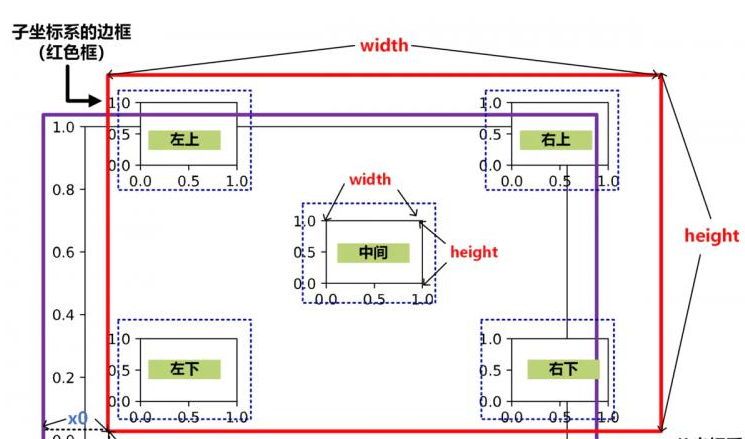

嵌入局部放大图的坐标系：两种写法

axins = inset_axes(ax, width="40%", height="30%", loc='lower left',
                   bbox_to_anchor=(0.3, 0.1, 1, 1),
                   bbox_transform=ax.transAxes)

• ax：父坐标系
• width, height：子坐标系的宽度和高度（百分比形式或者浮点数个数）
• loc：子坐标系的位置
• bbox_to_anchor：边界框，四元数组（x0, y0, width, height）
• bbox_transform：从父坐标系到子坐标系的几何映射
• axins：子坐标系

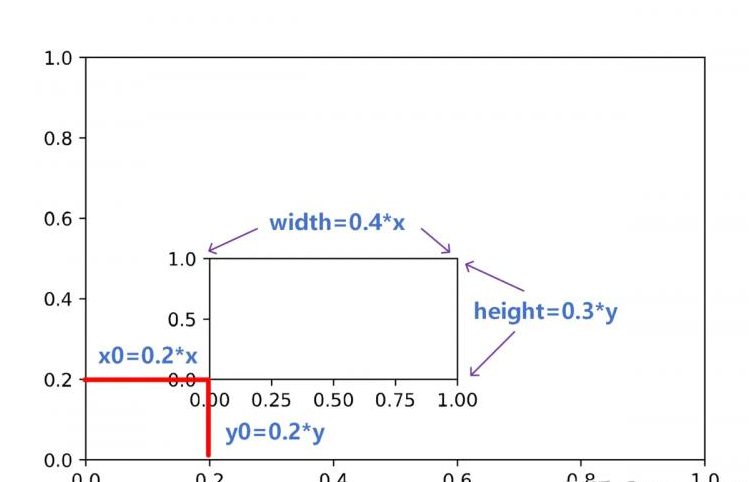

另外有一种更加简洁的子坐标系嵌入方法：更好理解

axins = ax.inset_axes((0.2, 0.2, 0.4, 0.3))

设置放大区间，调整子坐标系的显示范围

# 设置放大区间
zone_left = 100  #小心越界
zone_right = 150

# 坐标轴的扩展比例（根据实际数据调整）
x_ratio = 0  # x轴显示范围的扩展比例
y_ratio = 0.05  # y轴显示范围的扩展比例

# X轴的显示范围
xlim0 = x_axis_data[zone_left]-(x_axis_data[zone_right]-x_axis_data[zone_left])*x_ratio
xlim1 = x_axis_data[zone_right]+(x_axis_data[zone_right]-x_axis_data[zone_left])*x_ratio

# Y轴的显示范围
y = np.hstack((reward_demaddpg5[zone_left:zone_right], reward_demaddpg10[zone_left:zone_right],
               reward_demaddpg15[zone_left:zone_right],reward_demaddpg20[zone_left:zone_right],
               reward_demaddpg25[zone_left:zone_right]))
ylim0 = np.min(y)-(np.max(y)-np.min(y))*y_ratio
ylim1 = np.max(y)+(np.max(y)-np.min(y))*y_ratio

# 调整子坐标系的显示范围
axins.set_xlim(xlim0, xlim1)
axins.set_ylim(ylim0, ylim1)

建立父坐标系与子坐标系的连接线

# 原图中画方框
tx0 = xlim0
tx1 = xlim1
ty0 = ylim0
ty1 = ylim1
sx = [tx0,tx1,tx1,tx0,tx0]
sy = [ty0,ty0,ty1,ty1,ty0]
ax.plot(sx,sy,"black")

# 画两条线
xy = (xlim0,ylim0)
xy2 = (xlim0,ylim1)
con = ConnectionPatch(xyA=xy2,xyB=xy,coordsA="data",coordsB="data",
        axesA=axins,axesB=ax)
axins.add_artist(con)

xy = (xlim1,ylim0)
xy2 = (xlim1,ylim1)
con = ConnectionPatch(xyA=xy2,xyB=xy,coordsA="data",coordsB="data",
        axesA=axins,axesB=ax)
axins.add_artist(con)

参考链接：Python中 Matplotlib局部放大图的画法_wulishinian的博客-CSDN博客_python 局部放大

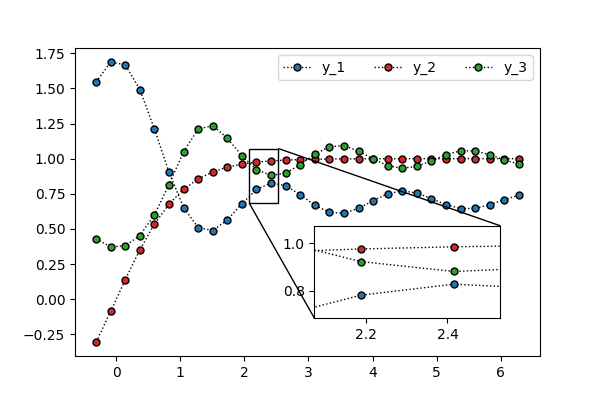

方案二：

import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.axes_grid1.inset_locator import mark_inset
from mpl_toolkits.axes_grid1.inset_locator import inset_axes

# 准备数据
x = np.linspace(-0.1*np.pi, 2*np.pi, 30)
y_1 = np.sinc(x)+0.7
y_2 = np.tanh(x)
y_3 = np.exp(-np.sinc(x))

# 绘图
fig, ax = plt.subplots(1, 1, figsize=(6, 4))
ax.plot(x, y_1, color='k', linestyle=':', linewidth=1,
        marker='o', markersize=5,
        markeredgecolor='black', markerfacecolor='C0')

ax.plot(x, y_2, color='k', linestyle=':', linewidth=1,
        marker='o', markersize=5,
        markeredgecolor='black', markerfacecolor='C3')

ax.plot(x, y_3, color='k', linestyle=':', linewidth=1,
        marker='o', markersize=5,
        markeredgecolor='black', markerfacecolor='C2')

ax.legend(labels=["y_1", "y_2","y_3"], ncol=3)

# 嵌入绘制局部放大图的坐标系
axins = inset_axes(ax, width="40%", height="30%",loc='lower left',
                   bbox_to_anchor=(0.5, 0.1, 1, 1),
                   bbox_transform=ax.transAxes)

# 在子坐标系中绘制原始数据
axins.plot(x, y_1, color='k', linestyle=':', linewidth=1,
            marker='o', markersize=5,
            markeredgecolor='black', markerfacecolor='C0')

axins.plot(x, y_2, color='k', linestyle=':', linewidth=1,
            marker='o', markersize=5,
            markeredgecolor='black', markerfacecolor='C3')

axins.plot(x, y_3, color='k', linestyle=':', linewidth=1,
            marker='o', markersize=5,
            markeredgecolor='black', markerfacecolor='C2')

# 设置放大区间
zone_left = 11
zone_right = 12

# 坐标轴的扩展比例（根据实际数据调整）
x_ratio = 0.5 # x轴显示范围的扩展比例
y_ratio = 0.5 # y轴显示范围的扩展比例

# X轴的显示范围
xlim0 = x[zone_left]-(x[zone_right]-x[zone_left])*x_ratio
xlim1 = x[zone_right]+(x[zone_right]-x[zone_left])*x_ratio

# Y轴的显示范围
y = np.hstack((y_1[zone_left:zone_right], y_2[zone_left:zone_right], y_3[zone_left:zone_right]))
ylim0 = np.min(y)-(np.max(y)-np.min(y))*y_ratio
ylim1 = np.max(y)+(np.max(y)-np.min(y))*y_ratio

# 调整子坐标系的显示范围
axins.set_xlim(xlim0, xlim1)
axins.set_ylim(ylim0, ylim1)

# 建立父坐标系与子坐标系的连接线
# loc1 loc2: 坐标系的四个角
# 1 (右上) 2 (左上) 3(左下) 4(右下)
mark_inset(ax, axins, loc1=3, loc2=1, fc="none", ec='k', lw=1)

# 显示
plt.show()

参考链接：【Matplotlib】 局部放大图 - 知乎
