WPF （DataGridColumnHeader）实现自义定列头样式 并绑定数据

原文:WPF （DataGridColumnHeader）实现自义定列头样式 并绑定数据

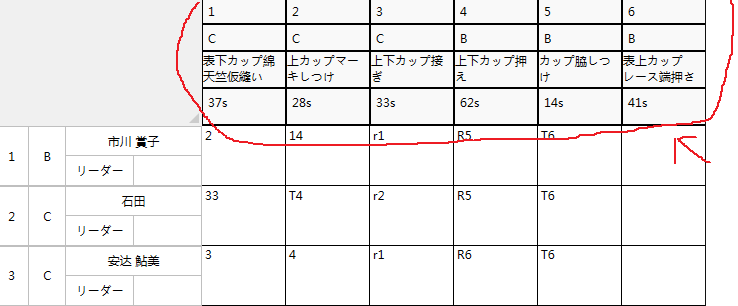

实现功能是这样的

自定义列头 样式 样式里的 数据来源于后台绑定

这篇就说头样式 和头样式数据绑定

思路

1）实现功能的时候 首先想的是编辑列头样式 选择使用DataGridTextColumn 编辑 DataGridColumnHeader 样式

样式很简单 就布局好了 这段结束

2）动态列 没有要求换肤 所以就没有完全使用MVVM 直接写后台循环   到这里数据有了

      List<string> LS = new List<string>();











        public void addColumn()





        {





            LS.Add("表下カップ綿天竺仮縫い_37s_C_1");





            LS.Add("上カップマーキしつけ_28s_C_2");





            LS.Add("上下カップ接ぎ_33s_C_3");





            LS.Add("上下カップ押え_62s_B_4");





            LS.Add("カップ脇しつけ_14s_B_5");





            LS.Add("表上カップレース端押さえ_41s_B_6");











            for (int i = 0; i < LS.Count; i++)





			{





                 DataGridTextColumn dl = new DataGridTextColumn();





                dl.Header=LS[i];











                dataGrid.Columns.Add(dl);





			}











        }

3）最难的数据绑定 数据来源 header 如果有只有俩个 就不用那么麻烦 直接在样式里ControlTemplate   中用TemplateBinding 绑定 Content 和tag  就可以

{TemplateBinding Content}

content = Header 里的值  当然 要使用tag 就要在上面的for 里加上tag的值 样式里 需要 绑定{TemplateBinding tag}

但是 我的项目需要4个 这就需要夸越TemplateBinding 这个绑定 我查了一下 想扩展template 但是资料太少

解决方法  自义定控件

首先我显示的控件是lable 所以 我自定义了一个lable 写 依赖属性 虽然有点繁琐 也算是一个比较笨的解决方案

1）定义 Ms  来获得header的数据  并处理数据

2）定义MyProperty 来获得Ms处理后的数据 绑定到 lable 的 Content 属性

3）使用控件本身的tag 来区分那个lable

贴码：

自定义的lable控件

public class LableColumn : Label





    {





        public LableColumn()





            : base()





        {





        }











        //获得值





        public string Ms





        {





            get { return (string)GetValue(MsProperty); }





            set { SetValue(MsProperty, value); }





        }











        // Using a DependencyProperty as the backing store for ms.  This enables animation, styling, binding, etc...





        public static readonly DependencyProperty MsProperty =





            DependencyProperty.Register("Ms", typeof(string), typeof(LableColumn), new FrameworkPropertyMetadata("", Onshow));























        //用于绑定的值





        public string MyProperty





        {





            get { return (string)GetValue(MyPropertyProperty); }





            set { SetValue(MyPropertyProperty, value); }





        }











        // Using a DependencyProperty as the backing store for MyProperty.  This enables animation, styling, binding, etc...





        public static readonly DependencyProperty MyPropertyProperty =





            DependencyProperty.Register("MyProperty", typeof(string), typeof(LableColumn), new PropertyMetadata(""));



































        private static void Onshow(DependencyObject d, DependencyPropertyChangedEventArgs e)





        {





            LableColumn l = d as LableColumn;











            if (l.Ms != null && l.Ms != "")





            {





                String[] strarr = l.Ms.ToString().Split(new string[] { "_" }, StringSplitOptions.None);











                if (l.Tag.Equals("1"))





                {





                 l.MyProperty=   strarr[3];





                }





                else if (l.Tag.Equals("2"))





                {





                    l.MyProperty = strarr[0];











                }





                else if (l.Tag.Equals("3"))





                {  l.MyProperty= strarr[2] ;





                }





                else if (l.Tag.Equals("4"))





                {





                     l.MyProperty= strarr[1];





                }





            }





        }

















    }

前台的DataGridColumnHeader 样式

  <Style TargetType="{x:Type DataGridColumnHeader}">





			<Setter Property="VerticalContentAlignment" Value="Center"/>





			<Setter Property="Template">





				<Setter.Value>





					<ControlTemplate TargetType="{x:Type DataGridColumnHeader}">











                        <Grid HorizontalAlignment= "Left " Height= "Auto " VerticalAlignment= "Stretch " Width= "Auto " Background= "White " Margin= "0 ">





                            <Grid.RowDefinitions>





                                <RowDefinition Height= "* "/>





                            </Grid.RowDefinitions>





                            <Border BorderBrush= "Black " BorderThickness= "1 " HorizontalAlignment= "Stretch " Height= "Auto " Margin= "0 " VerticalAlignment= "Stretch " Grid.RowSpan= "1 ">





                                <Grid HorizontalAlignment= "Stretch " Height= "Auto " Margin= "-1,0,0,0 " VerticalAlignment= "Stretch ">





                                    <Grid.RowDefinitions>





                                        <RowDefinition Height= "20* "/>





                                        <RowDefinition Height= "20* "/>





                                        <RowDefinition Height= "20* "/>





                                        <RowDefinition Height= "20* "/>





                                    </Grid.RowDefinitions>





                                    <Border BorderBrush= "Black " BorderThickness= "1,1,0,1 " HorizontalAlignment= "Stretch " Height= "Auto " Margin= "0 " VerticalAlignment= "Stretch " Width= "Auto " Grid.Row= "1 ">





                                        <local:LableColumn  Tag="3"  Content="{Binding RelativeSource={RelativeSource self},Path=MyProperty}" Ms="{TemplateBinding Content}"   Background= "#FFF9F9F9 "  HorizontalAlignment= "Stretch " Height= "25 " Margin= "0 " VerticalAlignment= "Stretch " Width= "82 "/>





                                    </Border>





                                    <Border BorderBrush= "Black " BorderThickness= "1,1,0,1 " HorizontalAlignment= "Stretch " Height= "Auto " Margin= "0 " VerticalAlignment= "Stretch " Width= "Auto ">





                                        <local:LableColumn  Tag="1"  Content="{Binding MyProperty, RelativeSource={RelativeSource self}}"  Ms="{TemplateBinding Content}"   Background= "#FFF9F9F9 "   HorizontalAlignment= "Stretch " Height= "25 " Margin= "0 " VerticalAlignment= "Stretch " Width= "82 "/>





                                    </Border>





                                    <local:LableColumn x:Name="lText"  Tag="2" Content="{Binding MyProperty, RelativeSource={RelativeSource self}}"  Ms="{TemplateBinding Content}"   Background= "#FFF9F9F9 "   HorizontalAlignment= "Stretch " Height= "35 " Margin= "0 " VerticalAlignment= "Stretch " Width= "82 " Visibility="Collapsed"/>











                                    <Border BorderBrush= "Black " BorderThickness= "1,1,0,1 " HorizontalAlignment= "Stretch " Height= "Auto " Margin= "0,0,0,0 " VerticalAlignment= "Stretch " Width= "Auto " Grid.Row= "2 ">





                                        <TextBlock  TextWrapping =  "Wrap "   Background= "#FFF9F9F9 " Text="{Binding Path=Content,ElementName=lText}"  HorizontalAlignment= "Stretch " Height= "35 " Margin= "0 " VerticalAlignment= "Stretch " Width= "82 "/>











                                    </Border>





                                                                      <Border BorderBrush= "Black " BorderThickness= "1,1,0,1 " HorizontalAlignment= "Stretch " Height= "Auto " Margin= "0 " VerticalAlignment= "Stretch " Width= "Auto " Grid.Row= "3 ">





                                        <local:LableColumn  Tag="4" Content="{Binding MyProperty, RelativeSource={RelativeSource self}}"  Ms="{TemplateBinding Content}"   Background= "#FFF9F9F9 "   HorizontalAlignment= "Stretch " Height= "35 " Margin= "0 " VerticalAlignment= "Stretch " Width= "82 "/>





                                    </Border>





                                </Grid>





                            </Border>





                        </Grid>











                    </ControlTemplate>





				</Setter.Value>





			</Setter>





		</Style>

数据绑定的技能 这边涉及到俩种

一个是绑定自身属性

{Binding MyProperty, RelativeSource={RelativeSource self}}

第二是绑定其他控件属性

{Binding Path=Content,ElementName=lText}

肯定有更好的方法来实现 这个功能  希望有人留言 得以分享学习
