tensorflow+inceptionv3图像分类网络结构的解析与代码实现

tensorflow+inceptionv3图像分类网络结构的解析与代码实现

论文链接:论文地址

ResNet传送门：Resnet-cifar10

DenseNet传送门：DenseNet

SegNet传送门：Segnet-segmentation

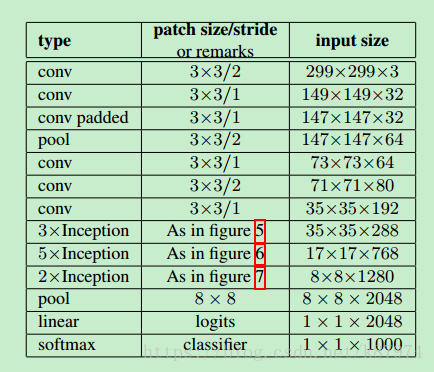

深度学习的火热，使得越来越多的科研人员投入到其中。而作为各种应用类型的网络基础，图像分类的网络结构有许多，从AlexNet开始,到VGG-Net,到GoogleNet,到ResNet,denseNet等。网络结构在不断地改进，也在不断地趋于稳定。新的单纯地图像分类结构越来越少（可能是分类效果已经达到了一定的需求）。本文主要讲解GoogleNet改进后的Inceptionv3网络结构。其网络结构如下所示:

该网络在ILSVRC 2012的分类挑战上能获得5.6%的top-5 error。在参数量方面远小于VGG-Net，所以能有更块地训练速度以及不错的分类精度。文章中提到了4个通用的网络设计原则。

简单来讲就是：1、不要在网络的一开始使用过大的filter size,这会导致图像信息的丢失；2、高维数据的表示更容易在网络内进行局部处理，添加激活函数可以获得更多的disentangled features （不知道怎么翻译，有知道的大佬可否在评论底下说说?)；3、空间聚合可以通过低维嵌入来完成，其表示能力没有太多或任何损失。（这里讲的就是网络中inception模块的分成4个branch最后聚合在一起所使用的原则）；4、平衡网络的宽度和深度。

卷积核的分解

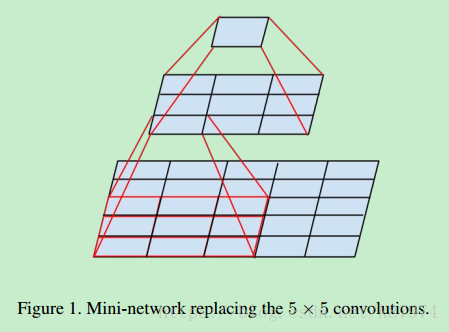

文章的核心部分在于其inception modules。而inception modules中又用到了factorization(将的filter size 分解成多个小的filter size)，其原理可以用如下的图表示：

假设有一个5x5的feature map，我们可以直接用一个5x5的filter对其做卷积得到1个值，也可以通过两个3x3的filter对其做卷积得到1个值，但相较于前者，后者有更少地参数:3x3x2=18。前者为5x5=25。可以减少的参数量为：(25-18)/25=28%。

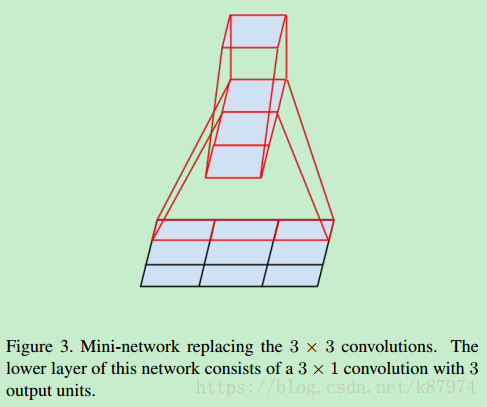

在此基础上，论文又提出可以使用使用非对称的卷积核来替代较大的卷积核。如下图所示：

对于一个3x3的卷积核，可以使用一个1x3和一个3x1的组合来替代。一般化地话，可以使用1xn和nx1替代nxn的卷积核。

辅助分类器

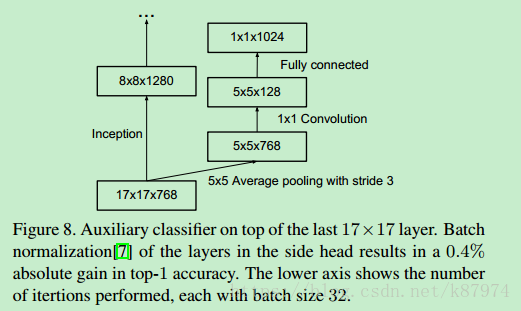

辅助分类器即除了主分类器之外，还在网络结构中的某一层，论文中为17x17x768的那一层，添加了一个分支用来做辅助分类。其思想来源于GoogleNet(Going deeper with convolutions)  。

网络尺寸的有效减少

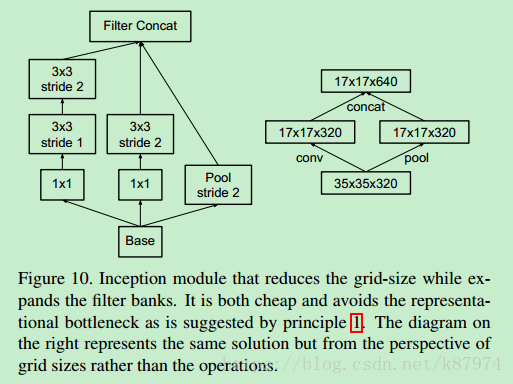

在论文中给出的网络结构中,3xInception和5xInception以及5xInception和2xInception有一个尺寸的减少，其具体实现方法为如下所示：

这里一并给出相关的代码实现：

def inception_grid_reduction_1(input,name=None):

    with tf.variable_scope(name) as scope:
        with tf.variable_scope("Branch_0"):
            branch_0=conv_inception(input,shape = [1,1,288,384],name = '0a_1x1')
            branch_0=conv_inception(branch_0,shape = [3,3,384,384],stride = [1,2,2,1],padding = 'VALID',name = '0b_3x3')
        with tf.variable_scope('Branch_1'):
            branch_1=conv_inception(input,shape = [1,1,288,64],name = '0b_1x1')
            branch_1=conv_inception(branch_1,shape = [3,3,64,96],name = '0b_3x3')
            branch_1=conv_inception(branch_1,shape = [3,3,96,96],stride = [1,2,2,1],padding = 'VALID',name = '0c_3x3')
        with tf.variable_scope('Branch_2'):
            branch_2=tf.nn.max_pool(input,ksize = (1,3,3,1),strides = [1,2,2,1],padding = 'VALID',name = 'maxpool_0a_3x3')
        inception_out=tf.concat([branch_0,branch_1,branch_2],3)
        c=1 # for debug
        return inception_out

其中conv_inception函数定义如下：

def conv_inception(input, shape, stride= [1,1,1,1], activation = True, padding = 'SAME', name = None):
    in_channel = shape[2]
    out_channel = shape[3]
    k_size = shape[0]
    with tf.variable_scope(name) as scope:
        kernel = _variable('conv_weights', shape = shape)
        conv = tf.nn.conv2d(input = input, filter = kernel, strides = stride, padding = padding)
        biases = _variable('biases', [out_channel])
        bias = tf.nn.bias_add(conv, biases)
        if activation is True:
            conv_out = tf.nn.relu(bias, name = 'relu')
        else:
            conv_out = bias
        return conv_out

_variable定义如下：

def _variable(name, shape):
  """Helper to create a Variable stored on CPU memory.
  Args:
    name: name of the variable
    shape: list of ints
  Returns:
    Variable Tensor
  """
  with tf.device('/gpu:0'):
    var = tf.get_variable(name, shape)
  return var

下面给出网络中每一部分的解释以及实现：

文章中的卷积部分就不讲了，基本操作。主要讲讲inception部分怎么做。论文中共用到了三种Inception modules，即传统的inception（如GoogleNet所示)，以及使用了非对称分解卷积核的inception,以及加入了filter expanded的inception。先说说传统的，如图所示：

这里Base的input size在网络中对应为35x35x288，有4个分支，其中pool为平均池化-avgpool，最后将4个分支串到一起，其代码实现如下：

def inception_block_tradition(input, name=None):

    with tf.variable_scope(name) as scope:
        with tf.variable_scope("Branch_0"):
            branch_0=conv_inception(input,shape = [1,1,288,64],name = '0a_1x1')
        with tf.variable_scope('Branch_1'):
            branch_1=conv_inception(input,shape = [1,1,288,48],name = '0a_1x1')
            branch_1=conv_inception(branch_1,shape = [5,5,48,64],name = '0b_5x5')
        with tf.variable_scope("Branch_2"):
            branch_2=conv_inception(input,shape = [1,1,288,64],name = '0a_1x1')
            branch_2=conv_inception(branch_2,shape = [3,3,64,96],name = '0b_3x3')
        with tf.variable_scope('Branch_3'):
            branch_3=tf.nn.avg_pool(input,ksize = (1,3,3,1),strides = [1,1,1,1],padding = 'SAME',name = 'Avgpool_0a_3x3')
            branch_3=conv_inception(branch_3,shape = [1,1,288,64],name = '0b_1x1')
        inception_out=tf.concat([branch_0,branch_1,branch_2,branch_3],3)
        b=1 # for debug
        return inception_out

接下来是使用了非对称分解的Inception moduels，如下图所示:

这里n=7，Base为17x17x768；pool为 3x3 stride为1的avgpool（同上）；其代码实现如下：

def inception_block_factorization(input,name=None):

    with tf.variable_scope(name) as scope:
        with tf.variable_scope('Branch_0'):
            branch_0=conv_inception(input,shape = [1,1,768,192],name = '0a_1x1')
        with tf.variable_scope('Branch_1'):
            branch_1=conv_inception(input,shape = [1,1,768,128],name = '0a_1x1')
            branch_1=conv_inception(branch_1,shape = [1,7,128,128],name = '0b_1x7')
            branch_1=conv_inception(branch_1,shape = [7,1,128,128],name = '0c_7x1')
            branch_1=conv_inception(branch_1,shape = [1,7,128,128],name = '0d_1x7')
            branch_1=conv_inception(branch_1,shape = [7,1,128,192],name = '0e_7x1')
        with tf.variable_scope('Branch_2'):
            branch_2=conv_inception(input,shape = [1,1,768,128],name = '0a_1x1')
            branch_2=conv_inception(branch_2,shape = [1,7,128,128],name = '0b_1x7')
            branch_2=conv_inception(branch_2,shape = [7,1,128,192],name = '0c_7x1')
        with tf.variable_scope('Branch_3'):
            branch_3=tf.nn.avg_pool(input,ksize = (1,3,3,1),strides = [1,1,1,1],padding = 'SAME',name = 'Avgpool_0a_3x3')
            branch_3=conv_inception(branch_3,shape = [1,1,768,192],name = '0b_1x1')
        inception_out=tf.concat([branch_0,branch_1,branch_2,branch_3],3)
        d=1 # for debug
        return inception_out

接下来使用了filter expanded的inception，如图所示:

也是4个分支，pool同上。其代码实现如下：

def inception_block_expanded(input,name=None):
    with tf.variable_scope(name) as scope:
        with tf.variable_scope('Branch_0'):
            branch_0=conv_inception(input,shape = [1,1,2048,320],name = '0a_1x1')
        with tf.variable_scope('Branch_1'):
            branch_1=conv_inception(input,shape = [1,1,2048,448],name = '0a_1x1')
            branch_1=conv_inception(branch_1,shape = [3,3,448,384],name = '0b_3x3')
            branch_1=tf.concat([conv_inception(branch_1,shape = [1,3,384,384],name = '0c_1x3'),
                                conv_inception(branch_1,shape = [3,1,384,384],name = '0d_3x1')],3)
        with tf.variable_scope('Branch_2'):
            branch_2=conv_inception(input,shape = [1,1,2048,384],name = '0a_1x1')
            branch_2=tf.concat([conv_inception(branch_2,shape = [1,3,384,384],name = '0b_1x3'),
                                conv_inception(branch_2,shape = [3,1,384,384],name = '0c_3x1')],3)
        with tf.variable_scope('Branch_3'):
            branch_3=tf.nn.avg_pool(input,ksize = (1,3,3,1),strides = [1,1,1,1],padding = 'SAME',name = 'Avgpool_0a_3x3')
            branch_3=conv_inception(branch_3,shape = [1,1,2048,192],name = '0b_1x1')
        inception_out=tf.concat([branch_0,branch_1,branch_2,branch_3],3)
        e=1 # for debug
        return inception_out

经过上述操作可得到8x8x2048的feature maps，根据论文中的结构，对其做池化操作并加入1x1的卷积得到我们最终需要的1x1xnum_class即可，其实现如下（不唯一）：

        with tf.variable_scope('Logits'):
            net=tf.nn.avg_pool(net,ksize = [8,8,2048,2048],strides = [1,1,1,1],padding = 'VALID',name = 'Avgpool_1a_8x8')

            # 1x1x2048
            net=tf.nn.dropout(net,keep_prob = dropout_keep_prob,name = 'Dropout_1b')
            end_points['PreLogits']=net
            #
            logits=conv_inception(net,shape = [1,1,2048,num_classes],activation = False,name = 'conv_1c_1x1')

            end_points['Logits']=logits
            end_points['Predictions']=tf.nn.softmax(logits,name = 'Predictions')
            return logits,end_points

论文中提及到的优化方法有SGD和RMSProp。可以随便选择，论文中得到的最佳模型为使用了RMSProp的方法。

附上代码下载地址：

tensorflow+inceptionv3

PS：数据集需要自行提供。
